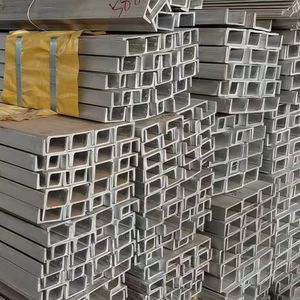

Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Specifications
MOQ :
30 kg
Price :
US $1.56-3.25 / kg
Model NO. :
310S
Shape :
U Channel
Technique :
Hot Rolled
Surface Treatment :
Bright
Specification :
30*30-100*100
Grade :
201 304 310S 316L 321 2205
Standard :
ASTM GB DIN
Angle Bar Size :
30*30*3 - 200*200*10mm * 6m length
Channel Bar Size :
50*30*3 - 200*100*10mm * 6m length
Thickness Range :
3-12mm
Weight per Meter :
0.894-35.8kg
Length :
6m
Material :
Stainless Steel
Heat Resistance :
Yes
Processing Service :
Cutting
Description
Heat Resistant 310S Stainless Steel Channel Bar 50×25mm
Product Specifications
Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grade: 201, 304, 310S, 316L, 321, 2205, etc.
Standard: ASTM, GB, DIN
Angle Bar Size: 30×30×3 - 200×200×10mm × 6m length
Channel Bar Size: 50×30×3 - 200×100×10mm × 6m length
Service: Cutting
Packing: Waterproof paper surround or wooden pallets
Brand: TSINGSHAN
Standard Size and Weight Specifications
Stainless Steel Angle Bar (Weight per meter in kg)
Size A×B (mm)3mm4mm5mm6mm7mm8mm9mm10mm
20×200.8941.131.38
25×251.131.451.772.06
30×301.371.772.172.53
35×351.612.092.573.01
40×401.852.412.973.49
45×452.122.763.404.00
50×502.363.073.794.465.135.766.427.06
60×604.585.426.247.03
63×635.035.956.847.718.609.48
70×705.426.427.398.349.3110.3
75×755.826.897.958.9710.011.1
80×807.378.509.6110.711.8
90×908.339.6511.9012.213.4
100×1009.2810.812.2013.615.0
Stainless Steel Channel Bar (Weight per meter in kg)
Size H×B (mm)3mm4mm5mm6mm7mm8mm9mm10mm12mm
40×201.79
50×252.27
60×302.743.564.375.12
70×353.234.215.176.08
80×403.714.845.967.03
90×454.255.556.838.05
100×504.736.187.628.9810.311.713.041.2
120×609.2010.912.614.2
130×6510.111.913.815.517.319.1
140×7012.914.916.818.820.7
150×7513.916.018.120.222.226.3
160×8014.817.119.321.623.828.1
180×9016.719.422.024.527.032.0
200×10018.621.624.527.430.235.8
Company Overview
Our company is a comprehensive stainless steel enterprise specializing in wholesale, material processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
Manufacturing Partnerships
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Macro Flourishing, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, and Korea.
Material Range
Our product portfolio includes 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L and other materials covering high-temperature resistant stainless steel series, duplex stainless steel series, and super stainless steel series.
Processing Capabilities
  • Plasma cutting machines
  • Coil material opening equipment
  • Laser cutting machines
  • 8K mirror finishing
  • Grinding and wire drawing
  • Film and titanium plating equipment
We offer comprehensive processing services including material opening, strip cutting, plate cutting, oil mill wire drawing, complete coil oil film wire drawing, 8K mirror finishing, and titanium processing.
Specialized Services
Our specialty includes thick plate zero cutting, circular cutting, square cutting, shaped cutting, casting parts, forging parts with product thickness up to 150MM. We can customize all types of special materials and specifications according to customer requirements.
Industry Applications
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.
Product Gallery
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel BarHeat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel BarHeat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel BarHeat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel BarHeat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar
Applications
Heat Resistant 310S Stainless Steel Channel Bar 50*25mm Hot Rolled U Channel Bar Stainless steel angle bars and channel bars are primarily used for frame structures including:
  • High-voltage power transmission towers
  • Frame structures on both sides of main beams in steel bridge construction
  • Column and boom components of tower cranes on construction sites
  • Column and beam structures in workshop frameworks
  • Air-conditioning and solar-powered shelf supports under windows
These structural components are extensively used in building construction and engineering projects such as house beams, ship beams, industrial furnaces, and various structural applications across multiple industries.
