316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface
316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface
Specifications
Certification :
AISI
MOQ :
50 kg
Price :
US $2.55-5.25 / kg
Model NO. :
316L
Shape :
U Channel
Technique :
Hot Rolled
Surface Treatment :
Polished
Specification :
30*30-200*200
Material :
201/202/304/304L/316/316L/309S/310S/321/409/410/420/430/2205/904L
Thickness :
0.8mm - 25mm
Width :
25mm*25mm-200mm*125mm / 50mm*37mm-400mm*104mm
Length :
1m - 12m
Size Range :
50*37*4.5 - 200*100*10
Thickness Range :
4.5mm - 10mm
Grades :
201, 304, 316
Processing :
Bar cutting
Production Capacity :
50000kgs
Standard :
ASTM A276
Description
316L Stainless Steel Channel Bar
High-quality SS316L U channel bars designed for industrial applications requiring superior corrosion resistance and durability.
Product Specifications
Product Type Stainless Steel Channel Bar
Standards GB ASTM, JIS, SUS, DIN, EN
Available Materials 201, 202, 304, 304L, 316, 316L, 309S, 310S, 321, 409, 410, 420, 430, 2205, 904L
Thickness Range 0.8mm - 25mm
Width Range 25mm×25mm - 200mm×125mm / 50mm×37mm - 400mm×104mm
Length 1m - 12m (custom lengths available)
Manufacturing Technique Hot Rolled
Surface Processing Galvanized, coated, or as requested
Place of Origin Jiangsu, China
Applications
Mechanical & Manufacturing, Steel Structures, Shipbuilding, Bridges, Automobile Chassis, and various architectural applications including hotels, airports, shopping malls, factories, and building renovations.
Chemical Composition
Stainless steel is an alloy of iron with a minimum of 10.5% chromium, which creates a protective oxide layer preventing further corrosion. Additional elements enhance formability and corrosion resistance.
Standard Chemical Composition (%)
Grade C Si Mn P S Ni Cr Mo
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12.0-15.0 16.0-18.0 2.0-3.0
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 9.0-13.0 18.0-20.0 -
Surface Finishes
Finish Thickness Characteristics Applications
No. 1 3.0mm~50.0mm Hot-rolled finish Chemical industry
No. 2B 0.3mm~6.0mm Heat treatment finish General applications
No. BA 0.5mm~2.0mm Bright annealed Kitchen utensils
No. 4 0.4mm~3.0mm Polished finish Food processing
HL 0.4mm~3.0mm Hair line finish Architectural purposes

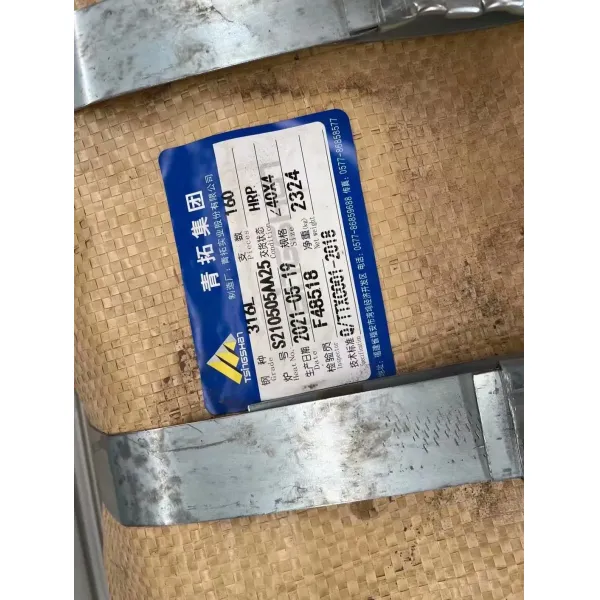

Product Images
316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface 316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface 316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface 316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface 316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface
Frequently Asked Questions
What are your main products?
We specialize in stainless steel plates/sheets, coils, round/square pipes, bars, channels, and related products.
How do you control quality?
All shipments include Mill Test Certification, with third-party inspection available. We maintain ISO and SGS certifications.
What are your delivery terms?
Stock items ship within 7 days; production orders typically take 15-30 days after deposit receipt.
Do you provide samples?
Yes, we provide free stock samples. Custom samples require 5-7 days for preparation.
Key Features
  • Extremely durable and reliable construction
  • Laser fused non-tapered design with smooth bead blast finish
  • Custom lengths up to 40 feet available
  • Compliant with ASTM A276 standards
  • Available in hot rolled condition
  • Size range: 50×37×4.5 - 200×100×10 mm
