Hot Rolled 304 Stainless Steel U Channel with Polished Surface for Structural Applications
Hot Rolled 304 Stainless Steel U Channel with Polished Surface for Structural Applications
Specifications
Certification :
AISI
MOQ :
50 kg
Price :
US $2.15-4.32 / kg
Model NO. :
304
Shape :
U Channel
Technique :
Hot Rolled
Surface Treatment :
Polished
Specification :
30*30-100*100
Size Range :
50*37*4.5 - 200*100*10
Thickness :
4.5mm - 10mm
Grades :
201, 304, 316
Processing :
Bar cutting
Carbon Content :
0.08 max (304), 0.035 max (304L)
Manganese Content :
2 max (304), 2.0 max (304L)
Chromium Content :
18-20 (304), 16-18 (316)
Nickel Content :
8-11 (304), 10-14 (316L)
Molybdenum Content :
2-3 (316)
Silicon Content :
0.75 max (304), 1.0 max (304L)
Description
Stainless Steel Channel Beam 304 U Channel C Channel Bar
Hot Rolled 304 and 316L Stainless Steel U Channels offer exceptional durability and reliability for industrial applications. Our laser fused non-tapered channels feature a smooth bead blast finish and are available in custom lengths up to 40 feet.
Product Specifications
Standard ASTM A276
Condition Hot Rolled
Size Range 50×37×4.5 - 200×100×10 mm
Thickness 4.5mm - 10mm
Available Grades 201, 304, 316
Processing Bar Cutting
Key Features
  • Symmetrical U-channel design for structural integrity
  • Available in 304L and 316L stainless steel grades
  • Laser fused non-tapered construction
  • Smooth bead blast finish
  • Custom lengths up to 40 feet
  • Meets dimensional tolerances per ASTM standards
Dimensional Standards
Stainless steel channels are defined by height, width, thickness, and length dimensions. Hot rolled channels comply with ASTM A276, ASTM A484, ASTM A479, and ASME SA479 standards. Laser fused channels are produced to ASTM A1069/A1069M/11 specifications.
Chemical Composition
Grade C Mn Si P S Cr Mo Ni
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18-20 - 8-11
SS 304L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 18-20 - 8-13
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00-18.00 2.00-3.00 11.00-14.00
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 1.0 max 16.00-18.00 16.00-18.00 10.00-14.00

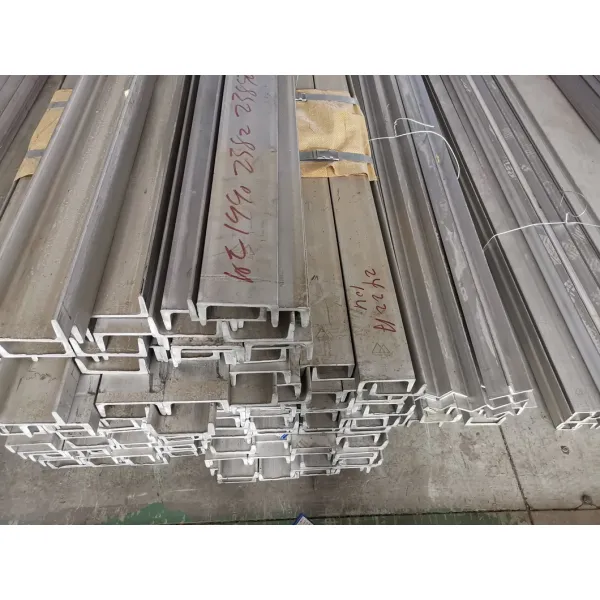

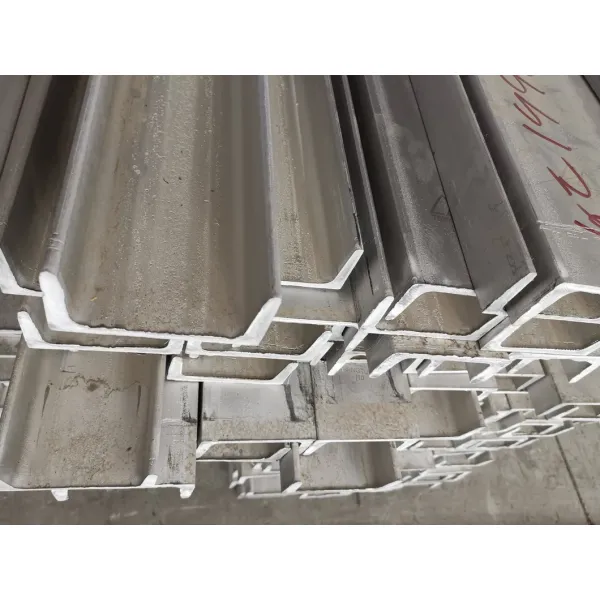

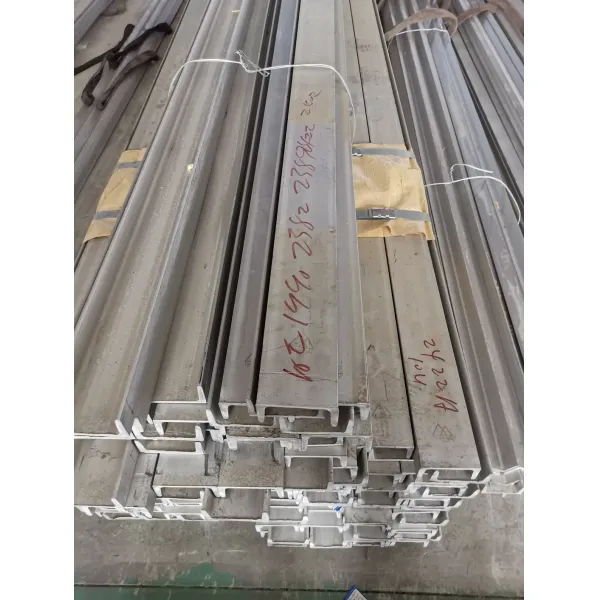

Product Images
Hot Rolled 304 Stainless Steel U Channel with Polished Surface for Structural Applications Hot Rolled 304 Stainless Steel U Channel with Polished Surface for Structural Applications Hot Rolled 304 Stainless Steel U Channel with Polished Surface for Structural Applications
