Expanded Aluminum Panels Ceiling Panels 1200*2400mm 1000*2000mm
Expanded Aluminum Panels Ceiling Panels 1200*2400mm 1000*2000mm
Expanded Aluminum Panels Ceiling Panels 1200*2400mm 1000*2000mm
Expanded Aluminum Panels Ceiling Panels 1200*2400mm 1000*2000mm
Expanded Aluminum Panels Ceiling Panels 1200*2400mm 1000*2000mm
Expanded Aluminum Panels Ceiling Panels 1200*2400mm 1000*2000mm
Expanded Aluminum Panels Ceiling Panels 1200*2400mm 1000*2000mm
Expanded Aluminum Panels Ceiling Panels 1200*2400mm 1000*2000mm
Specifications
Brand Name :
YINGKANG FLYING TIGER
Model Number :
001
Certification :
CE，ISO，FAD
Place of Origin :
China
MOQ :
30
Payment Terms :
,D/A,L/C,D/P,T/T
Supply Ability :
1000 square meter-7days
Delivery Time :
7-15days
Product name :
Aluminum Expanded Metal Expanded Metal Panel Ceiling Panels
Material :
Aluminum
Hole patterns :
Diamond, arc holes, hexagonal holes, etc.
Mesh size :
1220*2440mm,1200*2400mm,1000*2000mm or customized
Thickness :
3-5 mm thick aluminum plate
LWM :
3.0-100mm
SWM :
2.0-80mm
Application :
Decorative mesh for building outer wall.
Packing :
Water proof paper+plastic film, Woven bag,carton or pallet.
Description

Aluminum Expanded Metal Expanded Metal Panel Ceiling Panels

Expanded metal facade is generally made of aluminum plate, light weight and sturdy,expanded metal with anodized or PVDF coated finish not only has attractive appearance,but also delivers excellent weather resistance and a long lifespan.

Expanded metal Sheet Size: 1220*2440mm,1200*2400mm,1000*2000mm or customized.

Aluminum Expanded Metal Features: can be formed easily,can be paint or polished,easy installation,attractive appearance,wide range of thicknesses available.

Powder Coated Aluminum Expanded Metal for Specifications
Material
Thickness (mm)
Strand Width (mm)
SWD (mm)
LWD (mm)
Recommended Size:
Width × Length (mm)
Aluminum
2, 2.5, 3
8, 9, 10
34
75
1220 × 2000, 2400×1200
2, 2.5, 3
8, 9, 10
40
80
1220 × 2000, 2400×1200
2, 2.5, 3
10, 12, 15
50
110
1220 × 2000, 2400×1200
2, 2.5, 3
16, 18, 20
63
150
1220 × 2000, 2400×1200
2, 2.5, 3
25, 28, 30
80
200
1220 × 2000, 2400×1200
2, 2.5, 3
25, 28, 30
95
250
1220 × 2000, 2400×1200
2, 2.5, 3
25, 28, 30
95
300
1220 × 2000, 2400×120

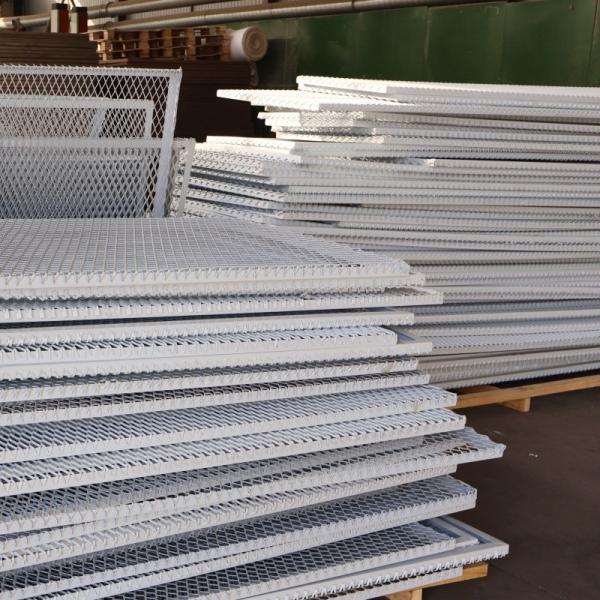

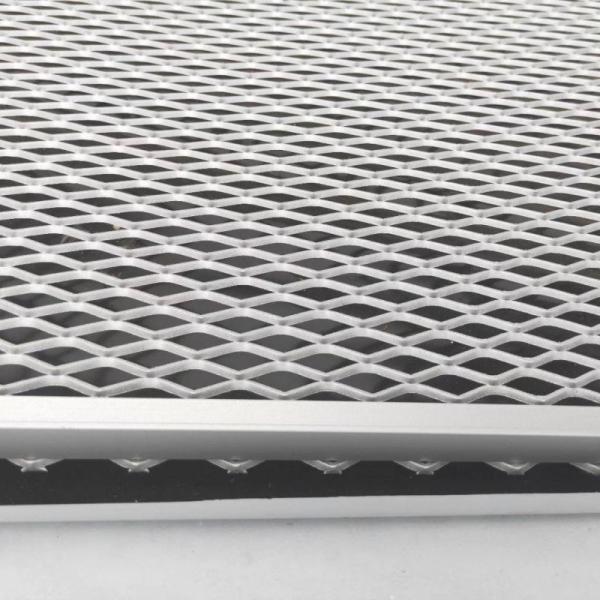

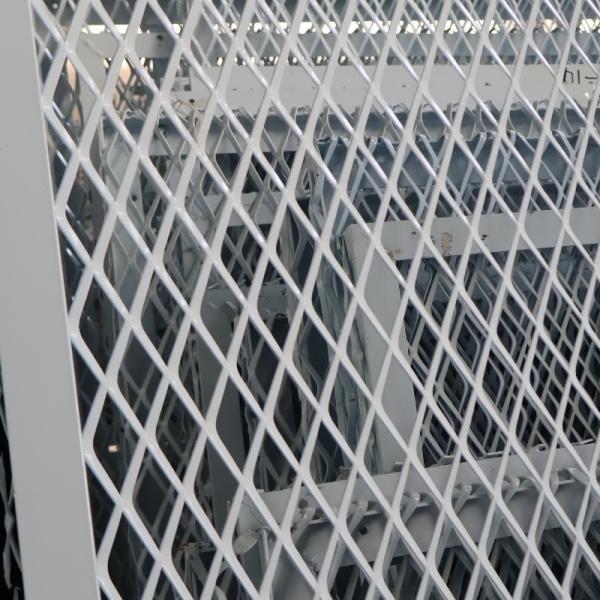

Powder Coated Aluminum Expanded metal mesh product display

Expanded Aluminum Panels Ceiling Panels 1200*2400mm 1000*2000mm

Expanded Aluminum Panels Ceiling Panels 1200*2400mm 1000*2000mm

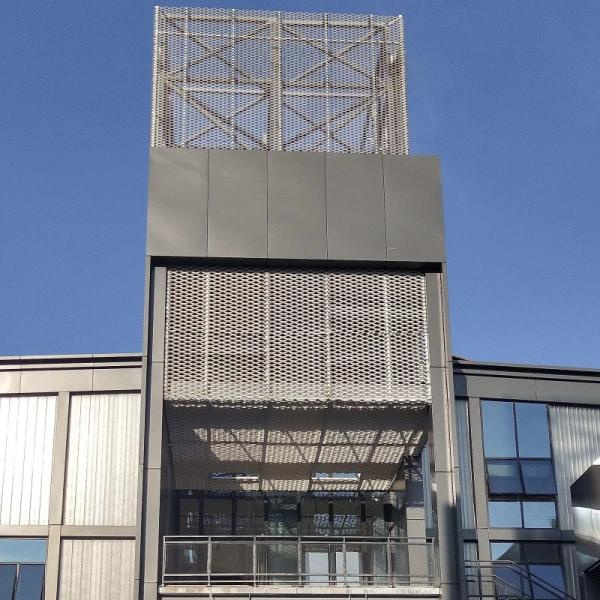

Applications: Facade cladding, Curtain wall, Architectural cladding and decoration, Security fencing, Balustrades, Walkways and staircases.

In addition to the above applications, there are many others. If you have other ideas, pls contact us.
