Anodized Expanded Aluminium Mesh Sheets 4 Feet*8 Feet For Facade Cladding
Anodized Expanded Aluminium Mesh Sheets 4 Feet*8 Feet For Facade Cladding
Anodized Expanded Aluminium Mesh Sheets 4 Feet*8 Feet For Facade Cladding
Anodized Expanded Aluminium Mesh Sheets 4 Feet*8 Feet For Facade Cladding
Anodized Expanded Aluminium Mesh Sheets 4 Feet*8 Feet For Facade Cladding
Anodized Expanded Aluminium Mesh Sheets 4 Feet*8 Feet For Facade Cladding
Anodized Expanded Aluminium Mesh Sheets 4 Feet*8 Feet For Facade Cladding
Anodized Expanded Aluminium Mesh Sheets 4 Feet*8 Feet For Facade Cladding
Specifications
Brand Name :
YINGKANG FLYING TIGER
Model Number :
001
Certification :
CE, ISO, FAD
Place of Origin :
China
MOQ :
30
Payment Terms :
,D/A,L/C,D/P,T/T
Supply Ability :
1000 square meter-7days
Delivery Time :
7-15days
Product name :
Anodized Aluminum Expanded Metal for Facade Cladding
Material :
Aluminum
Hole patterns :
Diamond, arc holes, hexagonal holes, etc.
Sheet size :
1.22m*2.44m, 4 feet*8 feet etc
Thickness :
3-5mm etc
Width :
0.5-3.2m
Application :
Buildings and facade cladding etc.
Packing :
Water proof paper+plastic film, Woven bag,carton or pallet.
Surface treatment :
Anodized ,powder coated, PVDF, spray painted
Description

Anodized Aluminum Expanded Metal for Facade Cladding

Aluminum expanded metal is generally made of 3 mm – 5 mm thick aluminum plate, less weight and more economic than regular metal sheet,extensive range of materials to suit any application,It is rigid for protective uses, while providing decorative effect.

Anodized Aluminum Expanded Metal surface treatment : Anodized (colour can be customized), powder coated, PVDF, spray painted or without treatment is ok, Good surface treatment performance beautiful appearance color feel comfortable and smooth.

Expanded Metal Sheet Size: Standard sheet sizes range from 1.22 meters (4 feet) by 2.44 meters (8 feet) or large.

Anodized Aluminum Expanded Metal for Specifications
Material
Thickness (mm)
Strand Width (mm)
SWD (mm)
LWD (mm)
Recommended Size:
Width × Length (mm)
Aluminum
2, 2.5, 3
8, 9, 10
34
75
1220 × 2000, 2400×1200
2, 2.5, 3
8, 9, 10
40
80
1220 × 2000, 2400×1200
2, 2.5, 3
10, 12, 15
50
110
1220 × 2000, 2400×1200
2, 2.5, 3
16, 18, 20
63
150
1220 × 2000, 2400×1200
2, 2.5, 3
25, 28, 30
80
200
1220 × 2000, 2400×1200
2, 2.5, 3
25, 28, 30
95
250
1220 × 2000, 2400×1200
2, 2.5, 3
25, 28, 30
95
300
1220 × 2000, 2400×120

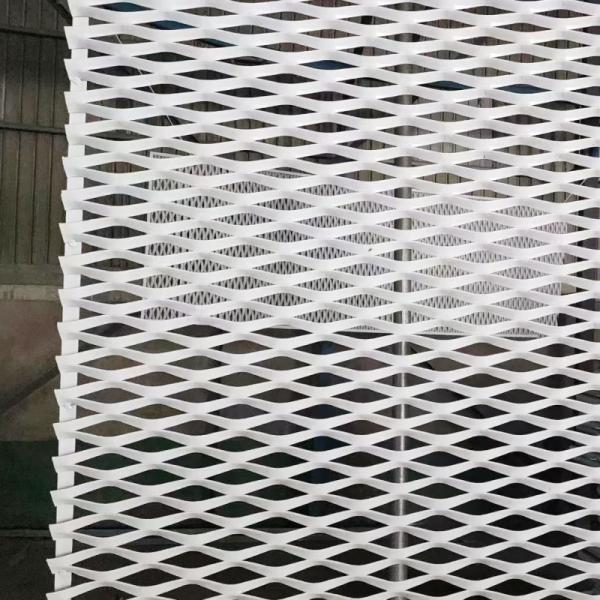

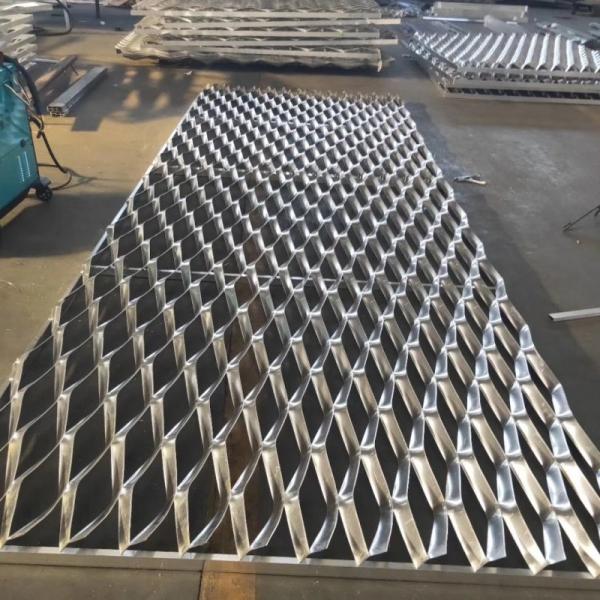

Aluminum expanded metal mesh product display

Anodized Expanded Aluminium Mesh Sheets 4 Feet*8 Feet For Facade Cladding

Aluminum expanded metal mesh application

Anodized Expanded Aluminium Mesh Sheets 4 Feet*8 Feet For Facade Cladding

Aluminum expanded metal widely used in shopping malls, commercial buildings, hotels, parking lots,other public buildings and facade cladding.

Products can be customized according to customer requirements,Welcome feel free to inquire,Just contact us,our experienced team will make out custom building facade solution for you.
