Facade Cladding PVDF Expanded Aluminum Mesh For Curtain Wall
Facade Cladding PVDF Expanded Aluminum Mesh For Curtain Wall
Facade Cladding PVDF Expanded Aluminum Mesh For Curtain Wall
Facade Cladding PVDF Expanded Aluminum Mesh For Curtain Wall
Facade Cladding PVDF Expanded Aluminum Mesh For Curtain Wall
Facade Cladding PVDF Expanded Aluminum Mesh For Curtain Wall
Facade Cladding PVDF Expanded Aluminum Mesh For Curtain Wall
Facade Cladding PVDF Expanded Aluminum Mesh For Curtain Wall
Specifications
Brand Name :
YINGKANG FLYING TIGER
Model Number :
001
Certification :
CE, ISO, FAD
Place of Origin :
China
MOQ :
30
Payment Terms :
,D/A,L/C,D/P,T/T
Supply Ability :
1000 square meter-7days
Delivery Time :
7-15days
Product name :
Facade Cladding PVDF Aluminum Expanded Metal Mesh for Curtain Wall
Material :
Aluminum
Hole patterns :
Diamond, arc holes, hexagonal holes, etc.
Sheet size :
1.22m*2.44m, 4 feet*8 feet etc
Thickness :
3-5mm etc
Width :
0.5-3.2m
Application :
Curtain Wall ,buildings and facade cladding etc.
Packing :
In wooden case with waterproof paper and pallet.
Surface treatment :
Anodized ,powder coated, PVDF, spray painted
Description

Facade Cladding PVDF Aluminum Expanded Metal Mesh for Curtain Wall

Raised expanded metal is also known as standard expanded metal, it has diamond openings with slightly raised surface.

Aluminum Expanded Metal Features: uniform sound abatement,light weight,durable,superior abrasion resistance,accuracy of size.

Decorative Expanded Metal Panel is generally made of 3 mm – 5 mm thick aluminum plate, and sheet size: Standard sheet sizes range from 1.22 meters (4 feet) by 2.44 meters (8 feet) or large.

Aluminum Expanded Metal surface treatment :PVC coated ,Powder coated ,Anodized ,Paint ,Fluorocarbon spraying ,Polishing.

Aluminum expanded metal widely used in shopping malls, commercial buildings, hotels, parking lots,other public buildings and facade cladding.

Anodized Aluminum Expanded Metal for Specifications
Material
Thickness (mm)
Strand Width (mm)
SWD (mm)
LWD (mm)
Recommended Size:
Width × Length (mm)
Aluminum
2, 2.5, 3
8, 9, 10
34
75
1220 × 2000, 2400×1200
2, 2.5, 3
8, 9, 10
40
80
1220 × 2000, 2400×1200
2, 2.5, 3
10, 12, 15
50
110
1220 × 2000, 2400×1200
2, 2.5, 3
16, 18, 20
63
150
1220 × 2000, 2400×1200
2, 2.5, 3
25, 28, 30
80
200
1220 × 2000, 2400×1200
2, 2.5, 3
25, 28, 30
95
250
1220 × 2000, 2400×1200
2, 2.5, 3
25, 28, 30
95
300
1220 × 2000, 2400×120

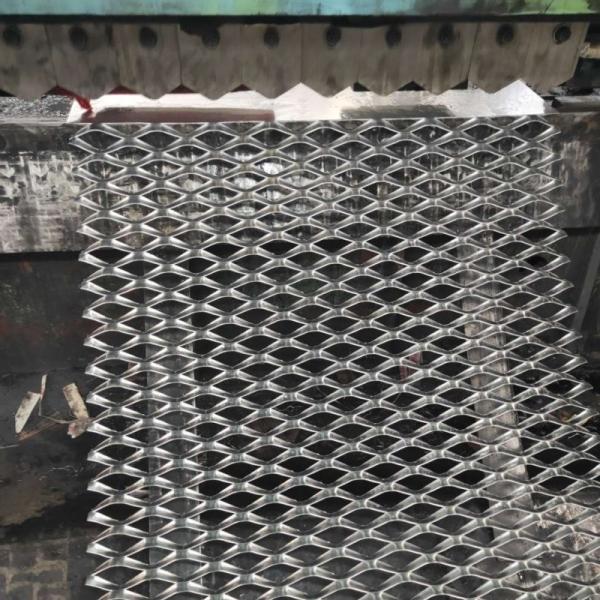

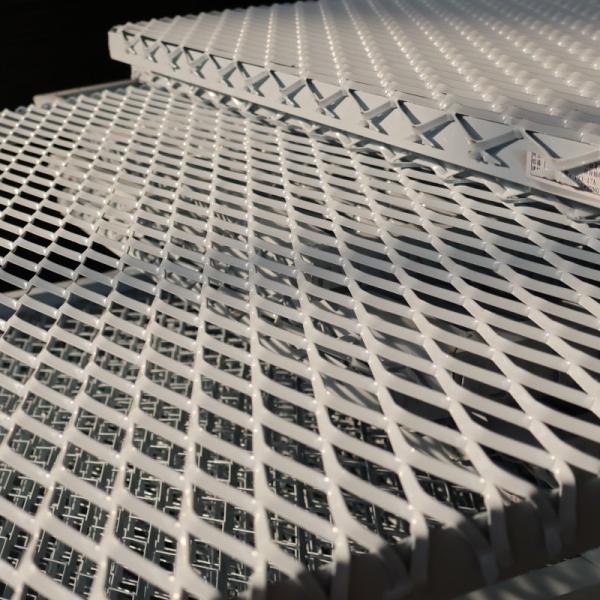

Aluminum expanded metal mesh product display

Facade Cladding PVDF Expanded Aluminum Mesh For Curtain Wall

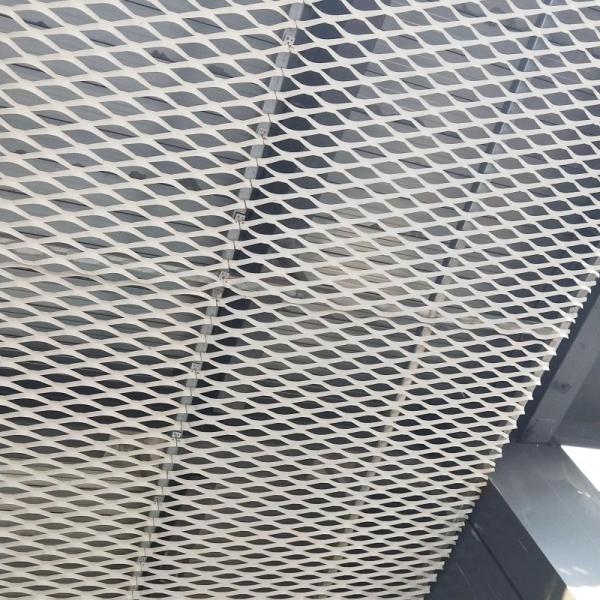

Aluminum expanded metal mesh application

Facade Cladding PVDF Expanded Aluminum Mesh For Curtain Wall

We only offer expanded metal products of the highest quality, ensuring they meet every customer’s expectations in terms of performance and durability.

Welcome feel free to inquire,Just contact us,our experienced team will make out custom building facade solution for you.
