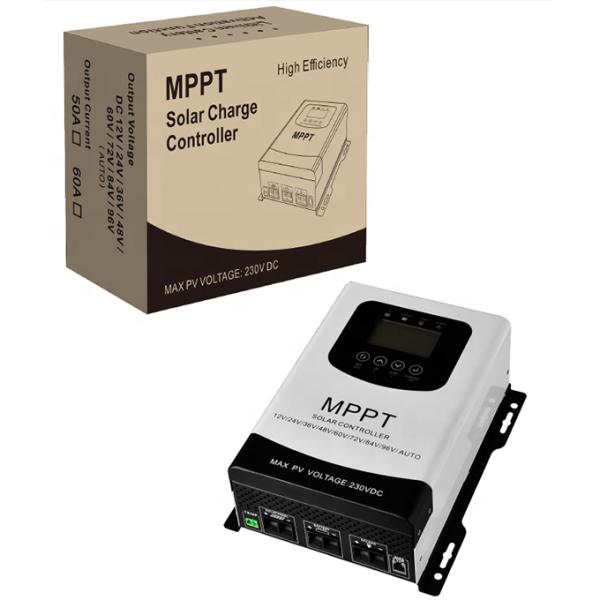

12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
Specifications
Brand Name :
SSTH
Model Number :
HV 30A, MPPT
Place of Origin :
Guangdong, China
Price :
CN¥746.17-1,046.09/pieces
Packaging Details :
1pcs/carton
Type :
MPPT
Application :
Charger Controller, Voltage Controller, Solar System Controller
Work Time (h) :
24 hours
Max PV Power :
auto tracking the max power
Max PV Voltage :
230V
Product name :
MPPT solar charge controller
Rated Voltage :
12V 24V 36V 48V 60V 72V 84V 96V auto work
Maximum Current :
25A-60A
MPPT efficiency :
97%
Charging mode :
MPPT automatic Max power tracking
PV max open circuit input voltage :
0-230V
Display :
LCD display with touch button
Protection Level :
IP 21
Altitude :
0- 3000m
Certificate :
CE
Warranty :
1 year
Description
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
Product Description
MPPT Solar Charge Controller
  • Automatically adjust battery charging and discharging, battery voltage from 12V to 96V
  • Own advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery;
  • Its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage. The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance.
  • MPPT solar charge controller have comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures.
Product type 30A / 40A solar charge controller 50A / 60A solar charge controller
Product size 202*215*100mm 218*265*100mm
Net weight 1.9 KG 2.6 KG
Box Size 285*230*128mm 325*245*128mm
Box gross weight 2.2 KG 3 KG
Qty / Carton 8 Box 4 Box
Carton size 575*480*290mm 500*340*272mm
Carton gross weight 18.8 KG 12.8 KG
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
Detailed Images
12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking 12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking 12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking 12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking 12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking 12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking
