12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SSTH/OEM
Model Number :
SSTH-MN1230, SSTH-MN1230
Packaging Details :
Package: gift box
1pc/Inner box;50pcs/CTN
China Factory 12 Vot 24 Volt 12V/24V Charge Controllers 30Ah MPPT 30A Solar MPPT Controller
Price :
CN¥256.04/pieces 1-99 pieces
Type :
MPPT
Application :
Charger Controller, Solar System Controller
Work Time (h) :
24h
Max PV Power :
380w
Max PV Voltage :
48v
Product name :
24 Volt 12V/24V Charge Controllers 30Ah MPPT 30A Solar MPPT Controller
Rated Voltage :
12V/24V
Maximum Current :
30A
MPPT efficiency :
99%
Size :
187*97*61mm
Weight :
475g
Dimention :
143*89*46 mm
Loop Buck :
≤100mV
Battery float voltage :
13.8V 12V system /27.6V 24V
Certificate :
ce
Warranty :
1 year
Description

12V/24V Charge Controllers 30Ah MPPT 30A Solar MPPT Controller for Solar System Control

Why choose us

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

Product Description
China Factory 12 Vot 24 Volt 12V/24V Charge Controllers 30Ah MPPT 30A Solar MPPT Controller
Parameters/Model
MN10
MN20
MN30
MN40
Maximum Power Current
12A
20A
30A
40A
Installation Lin mm2
4mm2
8mm2
10mm2
12mm2
Installation Line(AWG)
10 (AWG)
8(AWG)
7(AWG)
6(AWG)
Weight
280g
300g
475g
480g
Dimensions
143×89×46 mm
187*97*61 mm
System load loss
≤13mA
Loop Buck
≤100mV
Battery float voltage
13.8V 12V system /27.6V 24V system
Battery under voltage) protection
10.6V 12V system /21.2V 24V system
Battery (under voltage) recovery voltage
12.6V 12V system /25.2V 24V system
Charge mode
MPPT MODE
Operating Temperature
-10~60°C
Storage Temperature
-30~70°C
Humidity requirements
≤90%, No condensation
Temperature compensation
-4mV/Cell/°C
Temperature Probe (built components)
TC 100K thermistats
aximum open circuit voltage of the solar panel
18V-24V 12V system 36V-48V 24V system)
Solar panels maximum open circuit voltage (V)
≤48V
(Cases) 12V system standard configuration
The peak voltage of the solar cell panel
18V-25V
18V-25V
18V-25V
18V-25V
Peak power of solar cell panel
50W-130W
100W-260W
200W-380W
≤500W

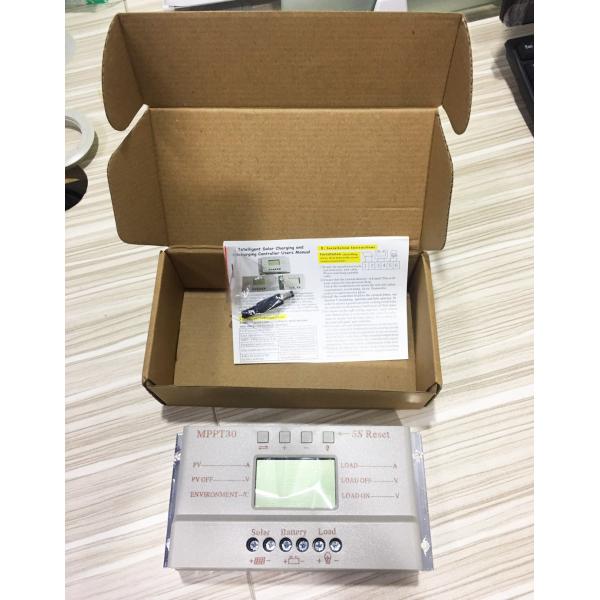

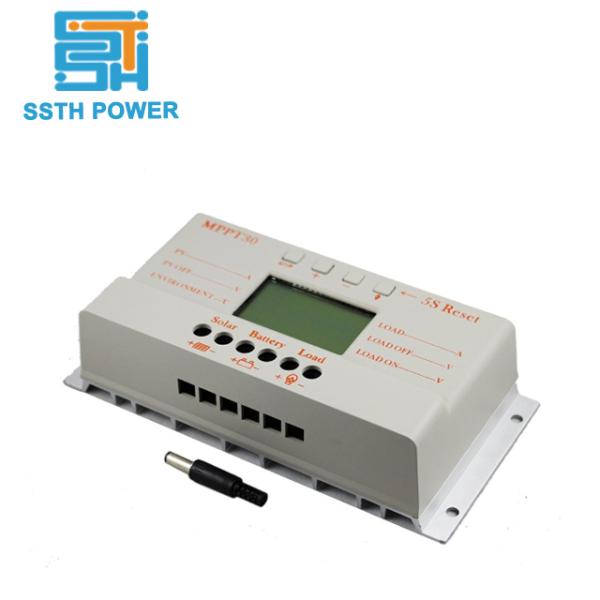

Product Details

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control
