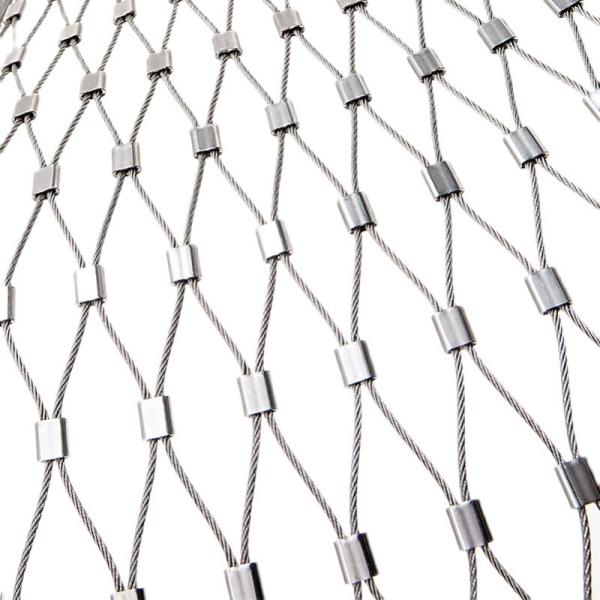

SS304 X Tend Cable Mesh Railing , Stainless Steel Ferruled Rope Mesh
SS304 X Tend Cable Mesh Railing , Stainless Steel Ferruled Rope Mesh
SS304 X Tend Cable Mesh Railing , Stainless Steel Ferruled Rope Mesh
SS304 X Tend Cable Mesh Railing , Stainless Steel Ferruled Rope Mesh
Specifications
Brand Name :
Jianping
Model Number :
JP-2460
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel Cable Mesh Railing
Material :
304, 316, 316L
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7,7X 19
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light: :
Stainless Steel Rope Mesh, Deck Railing,Stainless Steel Cable Mesh Railing
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

Ss304 X-Tend Stainless Steel Ferruled Rope Mesh Cable Mesh Railing

The application of stainless steel cable mesh
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants

The specification as follows:

Flexible Stainless Steel Rope Mesh(Ferrule Type)
Item No.s Cable Diameter Mesh Opening Size
(W×H)		 Normal Break
inch mm inch mm ibs.
JP-32120F 1/8 3.2 4.75×8.23 120×207.8 1,600
JP-32102F 1/8 3.2 4×6.9 102×176.7 1,600
JP-3290F 1/8 3.2 3.5×6.15 90×156 1,600
JP-3276F 1/8 3.2 3×5.2 76×131.6 1,600
JP-3251F 1/8 3.2 2×3.46 51×88.3 1,600
JP-24100F 3/32 2.4 4×6.9 102×176.7 920
JP-2490F 3/32 2.4 3.55×6.15 90×156 920
JP-2476F 3/32 2.4 3×5.2 76×131.6 920
JP-2460F 3/32 2.4 2.4×4.16 60×104 920
JP-2451F 3/32 2.4 2×3.46 51×88.3 920
JP-2076F 5/64 2.0 3×5.2 76×131.6 676
JP-2060F 5/64 2.0 2.4×4.16 60×104 676
JP-2051F 5/64 2.0 2×3.46 51×88.3 676
JP-2038F 5/64 2.0 1-1/2×2.6 38×65.8 676
JP-1676F 1/16 1.6 1.2×2.08 76×131.6 480
JP-1651F 1/16 1.6 2×3.46 51×88.3 480
JP-1638F 1/16 1.6 1-1/2×2.6 38×65.8 480
JP-1630F 1/16 1.6 1.2×2.08 30×52 480
JP-1625F 1/16 1.6 1×1.73 25.4×44 480
JP-1238F 3/64 1.2 1-1/2×2.6 38×65.8 270
JP-1230F 3/64 1.2 1.2×2.08 30×52 270
JP-1225F 3/64 1.2 1×1.73 25.4×44 270
JP-1220F 3/64 1.2 4/5×1.39 20×34.6 270

SS304 X Tend Cable Mesh Railing , Stainless Steel Ferruled Rope Mesh

Ss304 X-Tend Stainless Steel Ferruled Rope Mesh Cable Mesh Railing
