Rhombus Ferruled Railing Wire Mesh Stainless Steel 304 Handrail Safety Netting
Rhombus Ferruled Railing Wire Mesh Stainless Steel 304 Handrail Safety Netting
Rhombus Ferruled Railing Wire Mesh Stainless Steel 304 Handrail Safety Netting
Rhombus Ferruled Railing Wire Mesh Stainless Steel 304 Handrail Safety Netting
Specifications
Brand Name :
Jianping
Model Number :
JP-1660
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel Cable Mesh Railing
Material :
304, 316, 316L
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7,7X 19
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light: :
Stainless Steel Rope Mesh, Deck Railing,Stainless Steel Cable Mesh Railing
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

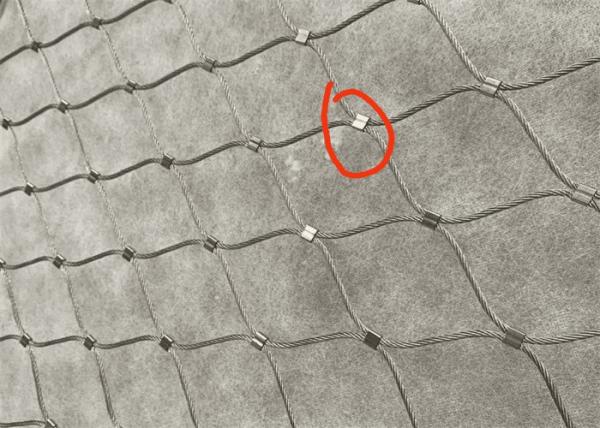

304 Decorative cable mesh Stainless Steel Ferruled Wire Rope Mesh Railing

The specification as follows:

Flexible Stainless Steel Rope Mesh(Ferrule Type)
Item No.s Cable Diameter Mesh Opening Size
(W×H)		 Normal Break
inch mm inch mm ibs.
JP-32120F 1/8 3.2 4.75×8.23 120×207.8 1,600
JP-32102F 1/8 3.2 4×6.9 102×176.7 1,600
JP-3290F 1/8 3.2 3.5×6.15 90×156 1,600
JP-3276F 1/8 3.2 3×5.2 76×131.6 1,600
JP-3251F 1/8 3.2 2×3.46 51×88.3 1,600
JP-24100F 3/32 2.4 4×6.9 102×176.7 920
JP-2490F 3/32 2.4 3.55×6.15 90×156 920
JP-2476F 3/32 2.4 3×5.2 76×131.6 920
JP-2460F 3/32 2.4 2.4×4.16 60×104 920
JP-2451F 3/32 2.4 2×3.46 51×88.3 920
JP-2076F 5/64 2.0 3×5.2 76×131.6 676
JP-2060F 5/64 2.0 2.4×4.16 60×104 676
JP-2051F 5/64 2.0 2×3.46 51×88.3 676
JP-2038F 5/64 2.0 1-1/2×2.6 38×65.8 676
JP-1676F 1/16 1.6 1.2×2.08 76×131.6 480
JP-1651F 1/16 1.6 2×3.46 51×88.3 480
JP-1638F 1/16 1.6 1-1/2×2.6 38×65.8 480
JP-1630F 1/16 1.6 1.2×2.08 30×52 480
JP-1625F 1/16 1.6 1×1.73 25.4×44 480
JP-1238F 3/64 1.2 1-1/2×2.6 38×65.8 270
JP-1230F 3/64 1.2 1.2×2.08 30×52 270
JP-1225F 3/64 1.2 1×1.73 25.4×44 270
JP-1220F 3/64 1.2 4/5×1.39 20×34.6 270

The application of stainless steel cable mesh
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants

Rhombus Ferruled Railing Wire Mesh Stainless Steel 304 Handrail Safety Netting

1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
