304L 316L Plant Climbing Net Support Mesh 60 Degree Stainless Steel Wall Plant
304L 316L Plant Climbing Net Support Mesh 60 Degree Stainless Steel Wall Plant
304L 316L Plant Climbing Net Support Mesh 60 Degree Stainless Steel Wall Plant
304L 316L Plant Climbing Net Support Mesh 60 Degree Stainless Steel Wall Plant
Specifications
Brand Name :
Jianping
Model Number :
JP-2460F
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Staninless Steel Rope Mesh
Material :
Stainless Steel Wire, 304, 316, AISI 304/316/304L/316L
Mesh Angle :
60 Degree
Rope Constructions :
7 X 7,7 X 19
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Finished :
Ultrasonic Bath , Black Oxide
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light: :
Stainless Steel Rope Mesh, Deck Railing
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

Stainless Steel Rope Mesh Green Plant Climbing Trellis Wall Plant Climbing Net

Product description

Stainless Steel Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316.

The Stainless Steel Rope Mesh is manufactured in the standard diameters 1.0 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm and 3.2mm. Mesh width of 25 to 200 mm (or bigger) are possible depending on cable diameter.

Stainless Steel Rope Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.

Stainless Steel Rope Mesh Green Plant Climbing Trellis Wall Plant Climbing Net
Material Stainless steel wire 304/316/316L
Wire diameter 1.0MM-6.0MM
Hole size Can be customized.depend on your requirment
Wire structure 7*7,7*19
Feature

1.The mesh is clipped to the cable.
2.The hole size and diameter can be modified.
3.It can be made to customer orders and statically tested – especially suitable for facades.
4.High strength,strong toughness,free-angles curving and fold,easy for transportation and installment.
5.Anti-corrosive,resist the rust,can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material,safety,environmental protection.
Usages

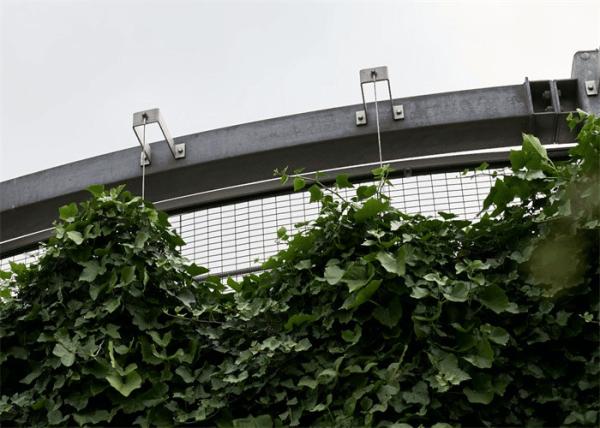

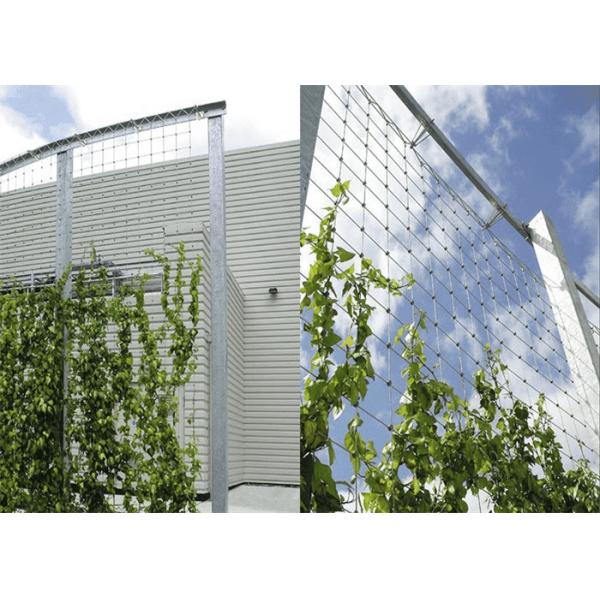

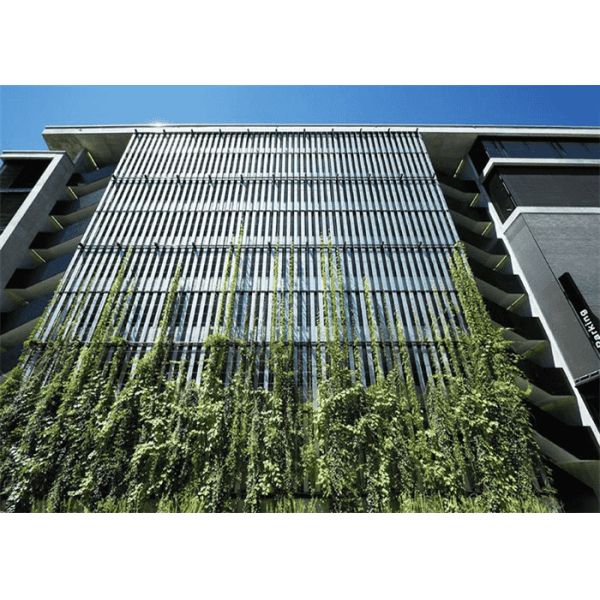

1.Green Facade - Cable System for Most Climbing Plants

2. Aviary Netting - Lightweight, Durable and Long Lasting

3.Safety Net - Structural Measure to Prevent Suicide

4.Helipad Safety Net - Modular Heliport Webbing

5.Cable Zoo Mesh - Solution to Enclosing Most Animals

6.Cable Mesh - Excellent Solution to Safety

7.Steel Mesh Balustrade - bridge, stair, balcony, path

304L 316L Plant Climbing Net Support Mesh 60 Degree Stainless Steel Wall Plant304L 316L Plant Climbing Net Support Mesh 60 Degree Stainless Steel Wall Plant

Stainless Steel Rope Mesh Green Plant Climbing Trellis Wall Plant Climbing Net

Our services range from ferruled wire rope mesh , knotted wire rope mesh to various installation's accessories . Also we can provide black oxide wire rope mesh .

Customized flexible stainless steel cable mesh, wire rope mesh for building facade systems, green wall systems. railing & balustrade systems. safety nets.

Wire Rope Mesh Specifications Sheet

Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )
20 x 35mm JP-1235
25 x 42mm JP-1225 JP-1625
30 x 52mm JP-1230 JP-1630 JP-2030
35 x 60mm JP-1235 JP-1635 JP-2035
38 x 66mm JP-1238 JP-1638 JP-2038 JP-2438
40 x 69mm JP-1240 JP-1640 JP-2040 JP-2440 JP-3040
50 x 86mm JP-1250 JP-1650 JP-2050 JP-2450 JP-3050
60 x 104mm JP-1260 JP-1660 JP-2060 JP-2460 JP-3060
70 x 120mm JP-1270 JP-1670 JP-2070 JP-2470 JP-3070
76 x 131mm JP-1276 JP-1676 JP-2076 JP-2476 JP-3076
80 x 138mm JP-1280 JP-1680 JP-2080 JP-2480 JP-3080
90 x 154mm JP-1290 JP-1690 JP-2090 JP-2490 JP-3090
100 x 173mm JP-12100 JP-16100 JP-20100 JP-24100 JP-30100
120 x 206mm JP-12120 JP-16120 JP-20120 JP-24120 JP-30120

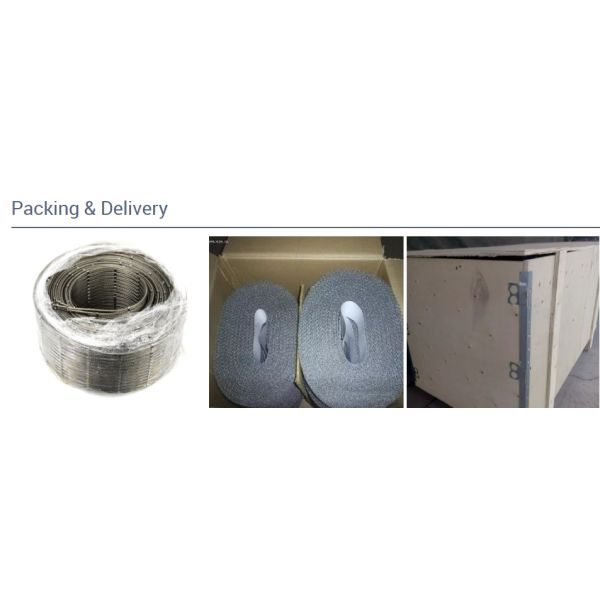

Packing & Delivery

304L 316L Plant Climbing Net Support Mesh 60 Degree Stainless Steel Wall Plant

1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.

304L 316L Plant Climbing Net Support Mesh 60 Degree Stainless Steel Wall Plant

Company Profile

304L 316L Plant Climbing Net Support Mesh 60 Degree Stainless Steel Wall Plant

1. 100% QC inspection before shipment.

2. Competitive price-we are factory but not a trade company, we can provide you the best quality with the low price.

3. Quick response-professional lines, widely supplier sourcing and we will try our best to reply you at first time.

4. As long as provide specifications, we can do what you want products.

5. If the products you receive have any quality problems, we promise to return the goods timely.

6. Payment-we accept T/T, Western Union and Escrow.

7. We provide the sample free of charge, but we are so sorry that the courier charge is on your side.

If you are interested in our products, please leave us a message or consultation.
