AISI 304 Garden Plant Climbing Net , Stainless Steel 1.2mm Wire Wall Trellis
AISI 304 Garden Plant Climbing Net , Stainless Steel 1.2mm Wire Wall Trellis
AISI 304 Garden Plant Climbing Net , Stainless Steel 1.2mm Wire Wall Trellis
AISI 304 Garden Plant Climbing Net , Stainless Steel 1.2mm Wire Wall Trellis
AISI 304 Garden Plant Climbing Net , Stainless Steel 1.2mm Wire Wall Trellis
AISI 304 Garden Plant Climbing Net , Stainless Steel 1.2mm Wire Wall Trellis
AISI 304 Garden Plant Climbing Net , Stainless Steel 1.2mm Wire Wall Trellis
AISI 304 Garden Plant Climbing Net , Stainless Steel 1.2mm Wire Wall Trellis
Specifications
Brand Name :
Jianping
Model Number :
JP-2460F
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel Wire Rope Mesh/Green Plant Climbing Trellis Wall Mesh
Mesh Type :
Ferruled Or Knotted
Material :
Stainless Steel Wire, 304, 316, AISI 304/316/304L/316L
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7,7 X 19
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
High Light: :
Stainless Steel Rope Mesh, Deck Railing
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

Stainless Steel Wire Rope Mesh Cable Mesh Green Plant Climbing Trellis Wall Mesh Of Garden/Plant Climbing Net

A premium fabric with strength and flexibility made up with a network of strands of stainless steel cables that are knotted and twisted. The construction is made up of stainless steel wire ropes parallel in pairs and mutually connected by crimped sleeves or weaving knots. When stretched, the net construction produces a spring force which varies from different opening degree and wire mesh rope diameter. Stainless Steel Rope Mesh is a vibrant and quality product with customized opening and various wire diameter (1.2 mm, 1.6 mm, 2 mm, 2.4 mm and 3.2 mm). All our meshes are made from either AISI 316 or 304 material group.

Lightweight, Strong and Durable

Stainless Steel Rope Mesh is Lightweight, High Strength, Flexible, UV and Weather Resistance, Non-corroding, the overall structure is Strong and Durable, service life of more than 30 years.

Luxurious Appearance

Stainless Steel Rope Mesh has good transparency which is barely visible from a distance, the rope mesh fencing can provide the perfect interaction conditions for the public at the same time ensuring their safety.

Widely Applied Range

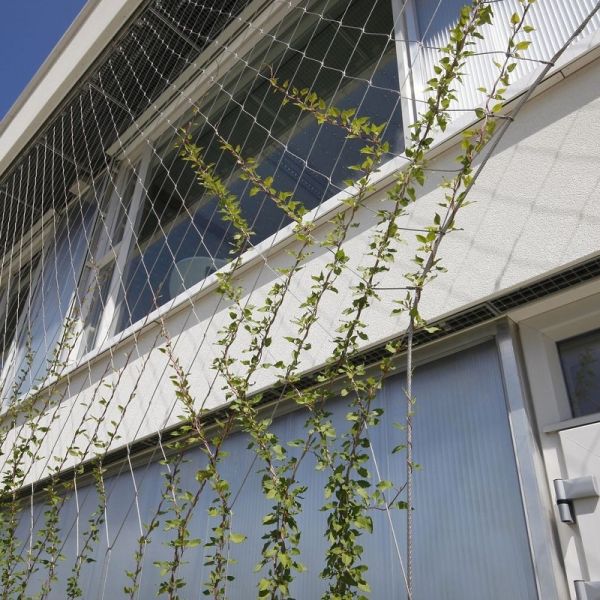

1.Green Facade - Cable System for Most Climbing Plants

2.Cable Mesh - Excellent Solution to Safety

3.Safety Net - Structural Measure to Prevent Suicide

4.Helipad Safety Net - Modular Heliport Webbing

5.Cable Zoo Mesh - Solution to Enclosing Most Animals

6.Aviary Netting - Lightweight, Durable and Long Lasting

7.Steel Mesh Balustrade - bridge, stair, balcony, path

Green Plant Climbing Trellis Wall Mesh Of Garden/Plant Climbing Net
Product Name Stainless Steel Wire Rope Mesh Cable Mesh Green Plant Climbing Trellis Wall Mesh Of Garden/Plant Climbing Net
Material High Grade AISI 304, AISI 316 , 316L
Wire Rope Thickness 1.5 mm , 1.6 mm , 2.0 mm , 2.4 mm , 3.0 mm
Mesh Aperture Mesh sides from 25mm to 200 mm or bigger
Mesh Type Usually the plant climbing wire rope mesh in ferruled type
Mesh Shape Rhombus with mesh angle in 60 degree

AISI 304 Garden Plant Climbing Net , Stainless Steel 1.2mm Wire Wall Trellis

Wire Rope Mesh Specifications Sheet

Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )
20 x 35mm JP-1235
25 x 42mm JP-1225 JP-1625
30 x 52mm JP-1230 JP-1630 JP-2030
35 x 60mm JP-1235 JP-1635 JP-2035
38 x 66mm JP-1238 JP-1638 JP-2038 JP-2438
40 x 69mm JP-1240 JP-1640 JP-2040 JP-2440 JP-3040
50 x 86mm JP-1250 JP-1650 JP-2050 JP-2450 JP-3050
60 x 104mm JP-1260 JP-1660 JP-2060 JP-2460 JP-3060
70 x 120mm JP-1270 JP-1670 JP-2070 JP-2470 JP-3070
76 x 131mm JP-1276 JP-1676 JP-2076 JP-2476 JP-3076
80 x 138mm JP-1280 JP-1680 JP-2080 JP-2480 JP-3080
90 x 154mm JP-1290 JP-1690 JP-2090 JP-2490 JP-3090
100 x 173mm JP-12100 JP-16100 JP-20100 JP-24100 JP-30100
120 x 206mm JP-12120 JP-16120 JP-20120 JP-24120 JP-30120

AISI 304 Garden Plant Climbing Net , Stainless Steel 1.2mm Wire Wall Trellis

What are the advantages of stainless steel rope net for plant climbing net plant support?

1.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.

2.Anti-corrosive, resist the rust, can be repeated use.

3.This product can bear the heavy snow and the gale very much.

4.Resists chewing by rodents and other pests

5.Without toxic material, safety, environmental protection.

AISI 304 Garden Plant Climbing Net , Stainless Steel 1.2mm Wire Wall Trellis
