304 316 Green Garden Mesh Netting Architectural Facade 1.2mm Stainless Steel Trellis System
304 316 Green Garden Mesh Netting Architectural Facade 1.2mm Stainless Steel Trellis System
304 316 Green Garden Mesh Netting Architectural Facade 1.2mm Stainless Steel Trellis System
304 316 Green Garden Mesh Netting Architectural Facade 1.2mm Stainless Steel Trellis System
Specifications
Brand Name :
Jianping
Model Number :
JP-24100F
Certification :
CE , SGS
Place of Origin :
Hebei
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Wire Rope Mesh , Wire Rope Plant Trellis
Material :
Stainless Steel Wire, 304, 316, AISI 304/316/304L/316L
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light :
Stainless Steel Rope Mesh, Wire Rope Plant Trellis
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

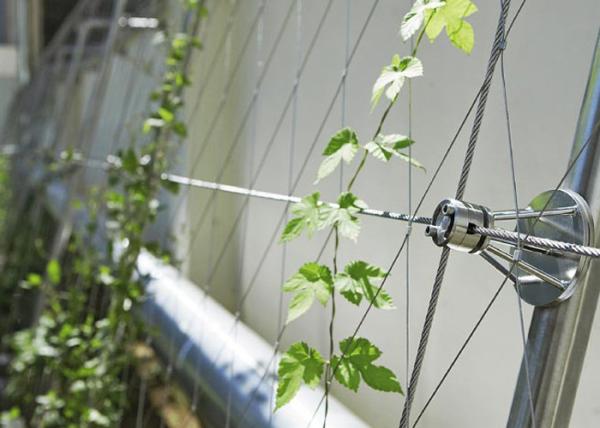

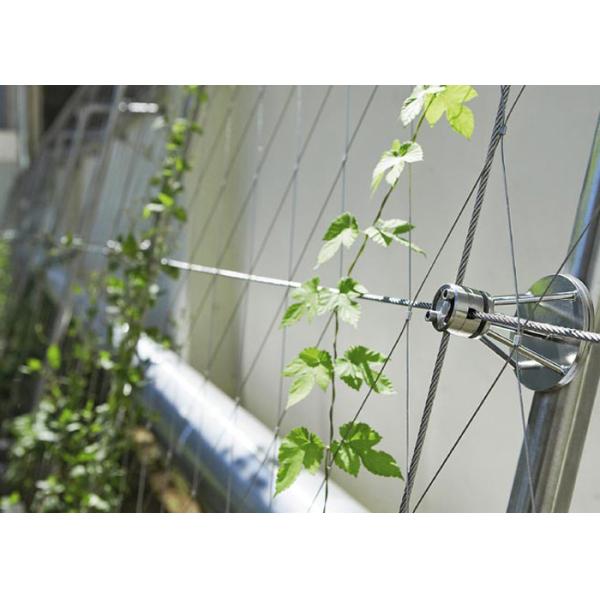

Architectural Facade Wire Rope Stainless Steel Trellis Greenery System

The stainless steel rope net is hand-made with high quality stainless steel rope.
The main materials for processing stainless steel rope are 304, 304L, 316, 316L and so on. Common
specifications for stainless steel rope: wirediameter:
1.2 mm, 1.5 mm, 2 mm, 3 mm, 4 m sides: 25 mm, 30 mm, 40 mm, 50 mm,
60 mm, 70 mm, 80 mm, 90 mm, 100 mm, 120 mm, 150 mm, etc.
Special specifications can be customized.
304 316 Green Garden Mesh Netting Architectural Facade 1.2mm Stainless Steel Trellis System
Architectural Facade Wire Rope Stainless Steel Trellis Greenery System
Material of Stainless Steel Wire Rope
SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316 (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

The wire rope mesh is manufactured in the standard diameters 1.0 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm and 3.2mm. Mesh width of 25 to 200 mm (or bigger) are possible depending on cable diameter.

Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316.

Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.

Our services range from ferruled wire rope mesh , knotted wire rope mesh to various installation's accessories . Also we can provide black oxide wire rope mesh .

Customized flexible stainless steel cable mesh, wire rope mesh for building facade systems, green wall systems. railing & balustrade systems. safety nets. enclosure for animal in zoo.

304 316 Green Garden Mesh Netting Architectural Facade 1.2mm Stainless Steel Trellis System
