19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube
19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube
19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube
19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube
19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube
19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube
19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube
19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube
Specifications
Brand Name :
Jianping
Model Number :
JP
Certification :
CE , SGS
Place of Origin :
Hebei, China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
12000 pcs / month
Delivery Time :
5-8 Work Days
Packaging Details :
Carton
Product Name :
Heavy Duty Overhead Line Pulling Grip for Cable
Certificate :
ISO9001/ SGS
Material :
GALVANIZED STEEL, stainless steel/ hot galvanized steel
Size :
6-320mm
Mesh length :
140-2100mm
Usage :
Pull-through Cable
Package :
plastic bag and carton box
High Light: :
Cable Grip Cable Sock/Cable Pulling Grips
Application :
cable protection, cable changing..etc
Description

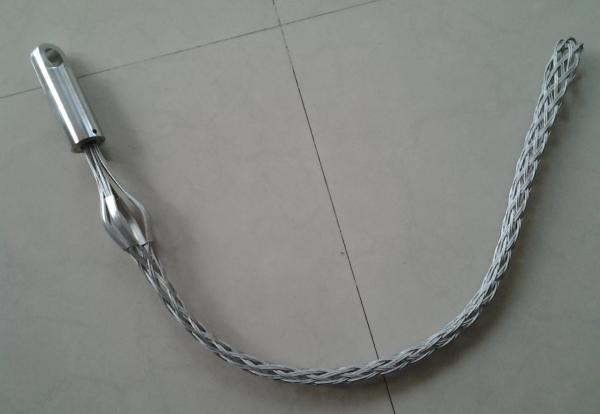

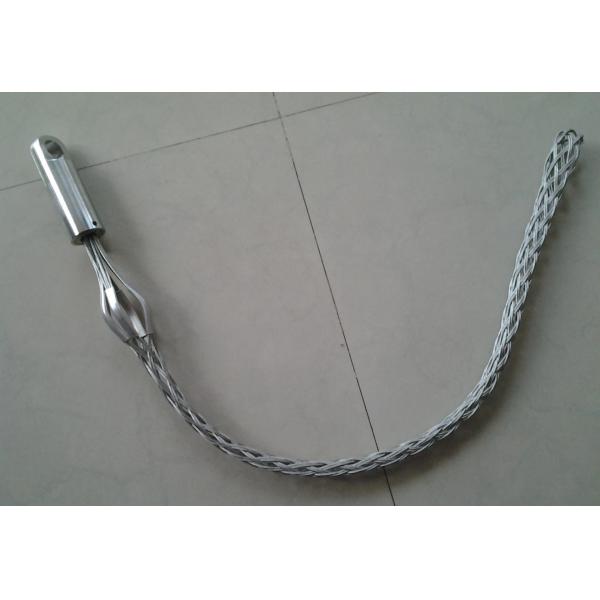

19-35mm Heavy Duty swivel Mesh Wire Rope Cable Grip For Cable And tube/Cable Pulling Grips

Heavy Duty swivel Mesh Wire Rope Cable Grip For Cable And tube/Cable Pulling Grips Description
Pulling Grips are made of galvanized steel (or stianless steel )and come in three styles with a single offset eye for easy
attachment to a pulling line.
Closed, when the cable end is accessible, split lace and rod closing when cable end is not accessible.
Grips are used in pulling slack for final placement of underground cable after it has been pulled and for removing cable.
Short mesh to be used in restricted space for short pulls and longer mesh for higher pulling loads where space is not restricted.

Heavy Duty Pullling Grip

* Pulling Grips have either single or double eye for attaching to the pulling rope.
* The correct pulling grips eases low and high voltage cable pulling into ducts, trenches and conduits.
* Provide an efficient method for cable installation and support within their load carrying capacity.
Heavy Duty swivel Mesh Wire Rope Cable Grip For Cable And tube/Cable Pulling Grips
Product type
Strong type draging cable grip
Size
1/4, 3/8, 1/2, 5/8, 7/8, 1-1/4, 1-3/8, 1-5/8, 2-1/4, 3, 4, 5 in or any other sizes
Material
Stainless steel, Galvanized steel
Delivery
Within 7-15 days
Sample
Avaliable

Heavy Duty swivel Mesh Wire Rope Cable Grip For Cable And tube/Cable Pulling Grips
Part Number
Cable Diameter
Eye Diameter
Mesh Length
Approx Break Strength
JPCS010
0.25-0.49"
(6.4-12.5mm)
7/8"(22.2mm)
26"(660.4mm)
6800 lbs.
JPCS016
0.50-0.74"
(12.7-18.8mm)
1"(25.4mm)
32"(812.8mm)
10000 lbs.
JPCS022
0.75-0.99"
(19.1-25.1mm)
1"(25.4mm)
41"(1041.4mm)
14400 lbs.
JPCS025
1.00-1.24"
(25.4-31.8mm)
1-3/8"(34.9mm)
52"(1320.8mm)
24600 lbs.
JPCS032
1.25-1.49"
(31.8-37.8mm)
1-5/8"(41.3mm)
56"(1422.4mm)
30600 lbs.
JPCS038
1.50-1.74"
(38.1-44.2mm)
1-7/8"(47.6mm)
60"(1524.0mm)
30600 lbs.
JPCS050
2.00-2.49"
(50.8-63.3mm)
1-7/8"(47.6mm)
50"(1270.0mm)
48000 lbs.
JPCS060
2.50-2.99"
(63.5-76.0mm)
1-7/8"(47.6mm)
52"(1320.8mm)
48000 lbs.
JPCS070
3.00-3.49"
(76.2-88.6mm)
1-7/8"(47.6mm)
54"(1371.6mm)
48000 lbs.
JPCS080
3.50-3.99"
(88.9-101.3mm)
1-7/8"(47.6mm)
56"(1422.4mm)
48000 lbs.

19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube

Heavy Duty swivel Mesh Wire Rope Cable Grip For Cable And tube/Cable Pulling Grips

Types of Grip Cable Pulling Grips

19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube

fiber optic pulling grips light duty pulling grips junior pulling grips

19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube

heavy duty pulling grips multi-weave pulling grips whipsocks

19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube

slack pulling grips stable pulling grips nylon pulling grips

Heavy Duty swivel Mesh Wire Rope Cable Grip For Cable And tube/Cable Pulling Grips Applications

1. Telecom cable
2. Fiber cable
3. Coaxial cable
4. Feeder cable
5. Hybrid cable
6. Corrugated cable
7. Smooth cable
8. Braid cable

19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube

19 - 35mm Cable Pulling Grips Swivel Mesh Heavy Duty Wire Rope Cable Grip For Tube

3.FAQ

1.How long is the warranty ?

Our products have 12 months warranty , and the product have high quality.

2.Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings.

3.How to get a sample?

We can send you samples for free ,but you need pay the express charge.

4.Which payment terms is available?

We accept paypal,western union,visa,escrow, payment by T/T in advance or LC.
