Specifications
Brand Name :
Jianping
Model Number :
JP
Certification :
Jianping
Place of Origin :
Hebei, China
Product Name :
High Strength Single Head Conductor Wire Mesh Grip Cable Pulling Grip Cable Pulling Socks/Cable Pulling Grips
Material :
GALVANIZED STEEL, stainless steel/ hot galvanized steel
Size :
6-320mm
Mesh length :
140-2100mm
Usage :
Pull-through Cable
Certificate :
ISO9001/ SGS
Package :
plastic bag and carton box
High Light: :
Cable Grip Cable Sock/Cable Pulling Grips
Application :
cable protection, cable changing..etc
Description

High Strength Single Head Conductor Wire Mesh Grip Cable Pulling Grip Cable Pulling Socks/Cable Pulling Grips

High Strength Single Head Conductor Wire Mesh Grip Cable Pulling Grip Cable Pulling Socks/Cable Pulling Grips Description

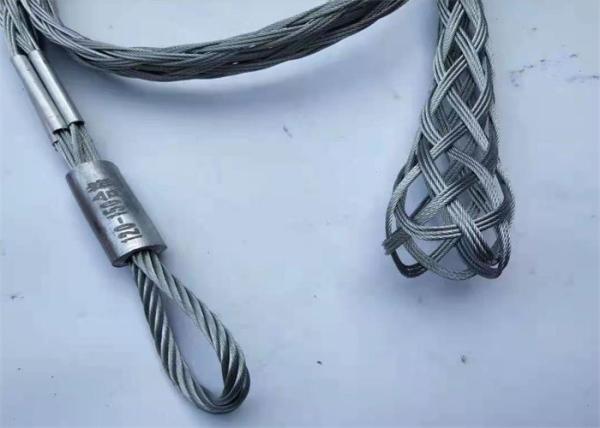

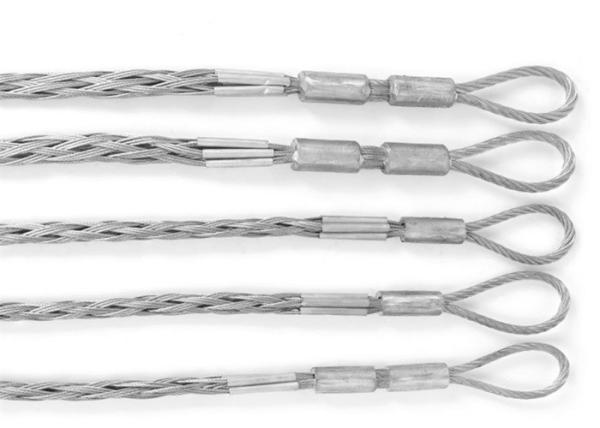

Pulling Grips are made of galvanized steel (or stianless steel )and come in three styles with a single offset eye for easy
attachment to a pulling line.
Closed, when the cable end is accessible, split lace and rod closing when cable end is not accessible.
Grips are used in pulling slack for final placement of underground cable after it has been pulled and for removing cable.
Short mesh to be used in restricted space for short pulls and longer mesh for higher pulling loads where space is not restricted.
* Pulling grips feature a double weave of galvanized steel for greater strength and added mesh contact with the cable as well as a forged steel compact flexible eye, which can be attached to a swivel.
* Double weave variable mesh design provides added strength and greater mesh contact on the cable.
* They are designed to handle longer or heavier pulling jobs such as an installation of underground Cables, communication lines and service lines.
* Used in factories, construction sites and utility work.
High Strength Single Head Conductor Wire Mesh Grip Cable Pulling Grip Cable Pulling Socks/Cable Pulling Grips
Product type
Strong type draging cable grip
Size 1/4, 3/8, 1/2, 5/8, 7/8, 1-1/4, 1-3/8, 1-5/8, 2-1/4, 3, 4, 5 in or any other sizes
Material Stainless steel, Galvanized steel
Delivery
Within 7-15 days
Sample
Avaliable

High Strength Single Head Conductor Wire Mesh Grip Cable Pulling Grip Cable Pulling Socks/Cable Pulling Grips
Part Number
 Cable Diameter Eye Diameter Mesh Length Approx Break Strength
JPCS010
0.25-0.49"
(6.4-12.5mm)
 7/8"(22.2mm) 26"(660.4mm) 6800 lbs.
JPCS016
0.50-0.74"
(12.7-18.8mm)
 1"(25.4mm) 32"(812.8mm) 10000 lbs.
JPCS022
0.75-0.99"
(19.1-25.1mm)
 1"(25.4mm) 41"(1041.4mm) 14400 lbs.
JPCS025
1.00-1.24"
(25.4-31.8mm)
 1-3/8"(34.9mm) 52"(1320.8mm) 24600 lbs.
JPCS032
1.25-1.49"
(31.8-37.8mm)
 1-5/8"(41.3mm) 56"(1422.4mm) 30600 lbs.
JPCS038
1.50-1.74"
(38.1-44.2mm)
 1-7/8"(47.6mm) 60"(1524.0mm) 30600 lbs.
JPCS050
2.00-2.49"
(50.8-63.3mm)
 1-7/8"(47.6mm) 50"(1270.0mm) 48000 lbs.
JPCS060
2.50-2.99"
(63.5-76.0mm)
 1-7/8"(47.6mm) 52"(1320.8mm) 48000 lbs.
JPCS070
3.00-3.49"
(76.2-88.6mm)
 1-7/8"(47.6mm) 54"(1371.6mm) 48000 lbs.
JPCS080
3.50-3.99"
(88.9-101.3mm)
 1-7/8"(47.6mm) 56"(1422.4mm) 48000 lbs.

High Strength Wire Mesh Pulling Grips Single Head Conductor Wire Cable Grip Puller ISO9001

High Strength Single Head Conductor Wire Mesh Grip Cable Pulling Grip Cable Pulling Socks/Cable Pulling Grips

Heavy Duty Pullling Grip

* Pulling Grips have either single or double eye for attaching to the pulling rope.
* The correct pulling grips eases low and high voltage cable pulling into ducts, trenches and conduits.
* Provide an efficient method for cable installation and support within their load carrying capacity.

Types of Grip Cable Pulling Grips

High Strength Wire Mesh Pulling Grips Single Head Conductor Wire Cable Grip Puller ISO9001

fiber optic pulling grips light duty pulling grips junior pulling grips

High Strength Wire Mesh Pulling Grips Single Head Conductor Wire Cable Grip Puller ISO9001

heavy duty pulling grips multi-weave pulling grips whipsocks

High Strength Wire Mesh Pulling Grips Single Head Conductor Wire Cable Grip Puller ISO9001

slack pulling grips stable pulling grips nylon pulling grips

High Strength Single Head Conductor Wire Mesh Grip Cable Pulling Grip Cable Pulling Socks/Cable Pulling GripsApplications

1. Telecom cable
2. Fiber cable
3. Coaxial cable
4. Feeder cable
5. Hybrid cable
6. Corrugated cable
7. Smooth cable
8. Braid cable

High Strength Wire Mesh Pulling Grips Single Head Conductor Wire Cable Grip Puller ISO9001

High Strength Wire Mesh Pulling Grips Single Head Conductor Wire Cable Grip Puller ISO9001

3.FAQ

1.How long is the warranty ?

Our products have 12 months warranty , and the product have high quality.

2.Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings.

3.How to get a sample?

We can send you samples for free ,but you need pay the express charge.

4.Which payment terms is available?

We accept paypal,western union,visa,escrow, payment by T/T in advance or LC.
