Diameter 10m Foam Carousel Cutting Machine Description:

The sponge disc flat cutting unit is an advanced device integrating mechanical transmission, precision control, and electrical automation. Its operating principle is to use the uniform feed rate of the feeding mechanism and the precise lifting and lowering linkage of the cutting system. The control system accurately controls the machine according to preset parameters, ultimately cutting the continuous sponge material into sheets of uniform thickness and precise dimensions.

Diameter 10m Foam Carousel Cutting Machine Working table and Support system:

Work Surface: Provides a flat, smooth support surface to ensure stable support for the sponge during cutting, preventing uneven thickness caused by sagging due to gravity. Support Structure: Typically constructed of welded steel sections, this structure ensures stability and rigidity at high speeds, reduces vibration, and improves cutting accuracy.

Diameter 10m Foam Carousel Cutting Machine Thickness Setting and Positioning System

· Encoder: Mounted on the feed roller, it accurately measures the length of the sponge fed and provides feedback to the PLC. When the feed length reaches the set single-piece length, the PLC commands the lifting system to operate once, completing a cutting cycle.
· Servo System: Responsible for precisely controlling the blade's lift position, achieving micron-level accuracy.

Power and Control System

This is the "brain" and "heart" of the machine.

· Electrical Cabinet: Contains electrical components such as the PLC (Programmable Logic Controller), frequency converter, servo drive, and circuit breaker.
· PLC: The core of the entire control system, receiving operating instructions, processing sensor signals, and coordinating the actions of the feed motor, blade motor, and lift servo motor.
· Human-Machine Interface: Typically a color touchscreen, this allows the operator to set parameters such as cutting thickness, cutting speed, and number of slices cut, and monitor the machine's operating status in real time.

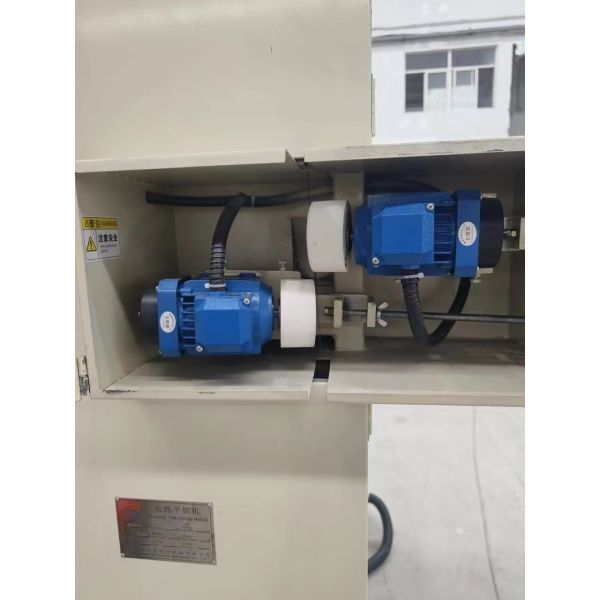

· Drive Motor:
· Feed Motor: Typically a variable frequency motor or servo motor, controls the feed speed.
· Blade Rotation Motor: A high-power motor ensures sufficient cutting force for the blade.
· Blade Lift Motor: Must be a high-precision servo motor to ensure accurate thickness control

Technical Data:.
