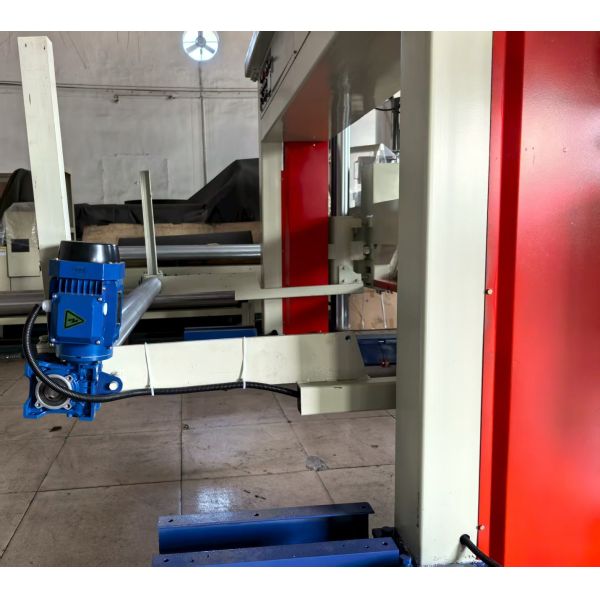

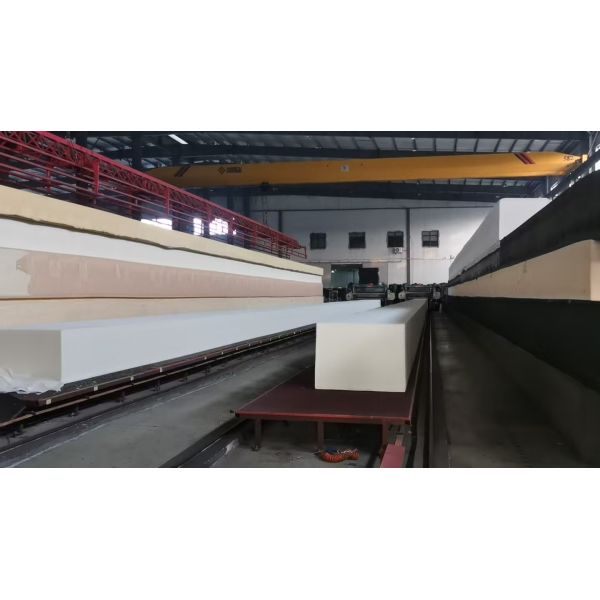

Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
Specifications
Brand Name :
Hongxingwang
Model Number :
HXW-LG-2150B
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,D/P,L/C
Supply Ability :
100set per year
Delivery Time :
30 working days
Packaging Details :
standard export packing
Voltage :
220V/380V
Power :
10kW-100kW
Application :
Foam industry
Power Source :
Electric
Features :
High Efficiency, Stable Performance, Easy Operation
Frequency :
50Hz/60Hz
Description

Long Sheet Foam Horizontal Cutting Machine with 100m length Key Features and Advantages

· High Precision and Flatness: The "rail" design is its core feature, effectively preventing vibration and deviation. The resulting sponge sheets have minimal thickness tolerance and exceptionally high surface quality.

· High Efficiency: The high degree of automation allows for continuous cutting, significantly improving production efficiency.

· Material Savings: The extremely thin blade (especially the band knife) reduces material loss during the cutting process, improving raw material utilization.

· Easy Operation: Modern models offer simple parameter settings, reducing operator workload and technical requirements.

· Wide Applicability: Not only can it cut ordinary sponges, but by adjusting the parameters and blade, it can also be used to cut a variety of soft foam materials, including high-rebound, slow-rebound, memory foam, and fire-resistant foam.

Long Sheet Foam Horizontal Cutting Machine with 100m length Technical Data

Cutting width

2150mm

Cutting height

1200mm

Slice thickness

2~110mm

Blade width

50mm

Auto rolling

One set

Invertor driving

Delta

PLC touch screen

Delta

Blade wheel bearings

NSK

Main frame bearings

TR

Motor:

8.75kw

Machine weight

2300kg

Machine size

4100mm*2100mm*2300mm

Horizontal Long Foam Sheet Cutting Machine With 100m Length High Precision
