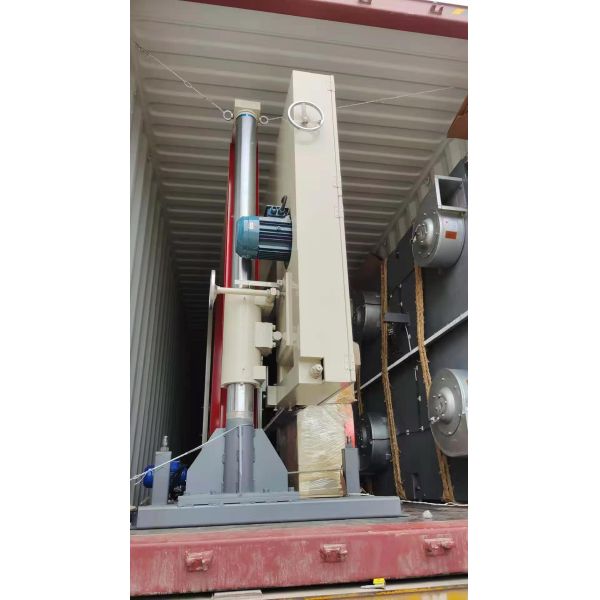

Diameter 7.3m Carousel Foam Cutting Machine Precise Control CE Approval
Diameter 7.3m Carousel Foam Cutting Machine Precise Control CE Approval
Diameter 7.3m Carousel Foam Cutting Machine Precise Control CE Approval
Diameter 7.3m Carousel Foam Cutting Machine Precise Control CE Approval
Diameter 7.3m Carousel Foam Cutting Machine Precise Control CE Approval
Diameter 7.3m Carousel Foam Cutting Machine Precise Control CE Approval
Diameter 7.3m Carousel Foam Cutting Machine Precise Control CE Approval
Diameter 7.3m Carousel Foam Cutting Machine Precise Control CE Approval
Diameter 7.3m Carousel Foam Cutting Machine Precise Control CE Approval
Diameter 7.3m Carousel Foam Cutting Machine Precise Control CE Approval
Diameter 7.3m Carousel Foam Cutting Machine Precise Control CE Approval
Diameter 7.3m Carousel Foam Cutting Machine Precise Control CE Approval
Specifications
Brand Name :
Hongxingwang
Model Number :
HXW-YP-73A
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
30-50sets per year
Delivery Time :
30-40 working days
Packaging Details :
3sets/40HC
Voltage :
220V/380V
Power :
10kW-100kW
Application :
Foam industry
Power Source :
Electric
Features :
High Efficiency, Stable Performance, Easy Operation
Frequency :
50Hz/60Hz
Description

Diameter 7.3m Foam Carousel Cutting Machine Description:

The sponge disc flat cutting unit is an advanced device integrating mechanical transmission, precision control, and electrical automation. Its operating principle is to use the uniform feed rate of the feeding mechanism and the precise lifting and lowering linkage of the cutting system. The control system accurately controls the machine according to preset parameters, ultimately cutting the continuous sponge material into sheets of uniform thickness and precise dimensions.

Diameter 7.3m Foam Carousel Cutting Machine Working table and Support system:

Work Surface: Provides a flat, smooth support surface to ensure stable support for the sponge during cutting, preventing uneven thickness caused by sagging due to gravity. Support Structure: Typically constructed of welded steel sections, this structure ensures stability and rigidity at high speeds, reduces vibration, and improves cutting accuracy.

Diameter 7.3m Foam Carousel Cutting Machine Thickness Setting and Positioning System

· Encoder: Mounted on the feed roller, it accurately measures the length of the sponge fed and provides feedback to the PLC. When the feed length reaches the set single-piece length, the PLC commands the lifting system to operate once, completing a cutting cycle.
· Servo System: Responsible for precisely controlling the blade's lift position, achieving micron-level accuracy.

Technical Data:

Work table size

7.3m diameter

Slice thickness

2~150mm

Disc rotational speed

0~3r/min

Cutting speed

8-40m/min

Knife guard thickness

6mm

Cutting angle

0-7 degree

Motor power

9.7kW

Machine weight

3000kg

Machine external size(L*W*H)

8000*7000*2450mm
