55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment
55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment
55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment
55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment
55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment
55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment
Specifications
Brand Name :
FANBAO
Model Number :
D09
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets/month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Material :
stainless steel
Mixing applicartion :
liquid mixing ,powder and liquid mixing ,Solid mixing
impeller :
Corrosion-resistant stainless steel impeller
product name :
304 Stainless Steel Stirrer Blender Mixing Tank With Agitator Chemical Liquid Soap Mixer Agitator
Blade :
three leaf , "_" shape , three blade high efficiency type , customized made
phase :
single phase or three phase
shaft thick :
16mm 25mm 38mm 57mm 76mm
power :
0.2kw ,0.37kw , 0.55kw , 0.75kw , 1.1kw , 1.5kw , 2.2kw , 3kw , 4kw , 5.5kw , 7kw , 11kw and so on
Description
Stainless Steel Sewage Treatment Agitator - 55 Gallon Drum Liquid Mixer
Key Features
  • Constructed with high-quality stainless steel (304/316 grade)
  • Versatile mixing applications: liquids, powder-liquid blends, and solids
  • Corrosion-resistant stainless steel impeller with customizable blade designs
  • Available in single phase or three phase power configurations
  • Multiple shaft thickness options from 16mm to 76mm
  • Wide power range from 0.2kw to 11kw to suit various requirements
Technical Specifications
Attribute Specification
Material Stainless Steel
Mixing Applications Liquid mixing, powder-liquid mixing, solid mixing
Impeller Type Corrosion-resistant stainless steel
Blade Options Three-leaf, "_" shape, three-blade high efficiency, custom designs
Power Phase Single phase or three phase
Shaft Thickness 16mm, 25mm, 38mm, 57mm, 76mm
Power Options 0.2kw to 11kw (multiple increments available)
System Components

Our vertical dosing mixer includes these precision-engineered components:

  • Gearmotor/Gear Reducer: Premium brand components ensuring first-class quality
  • Flanged Type Support: Precision machined for optimal operation stability
  • Shaft Coupling: Secure connection between components
  • Pole Shaft: Custom lengths available in SS304, SS316, or plastic lining
  • Impeller: Custom diameters with SS304/SS316 construction, various blade configurations
Power Selection Guide
Pool Length/Diameter (m) 0.5-1 1-1.5 1.5-2 2-3 3-4 4-5 5-6 6-7 7-8
1 0.37 0.75 1.5 1.5 2.2 3 4 5.5 7.5
2 0.55 0.75 1.5 2.2 3 4 5.5 7.5 11
3 0.55 1.1 1.5 3 4 5.5 7.5 11 15
4 0.75 1.5 2.2 3 5.5 7.5 7.5 11 15
5 1.1 1.5 2.2 3 5.5 11 11 15 18.5
6 1.1 1.5 2.2 4 7.5 11 11 15 18.5

Note: Power selection is suitable for general viscosity wastewater. High viscosity applications require separate calculation.

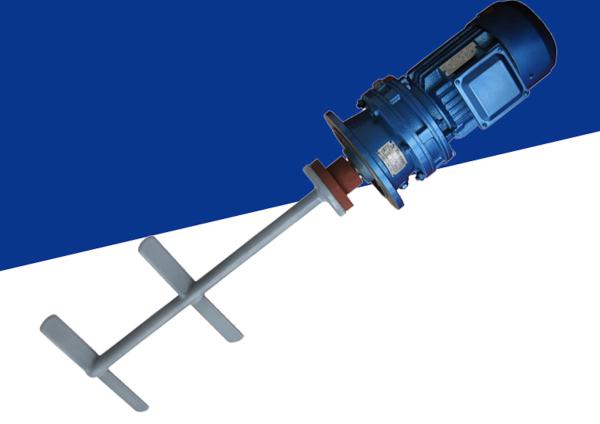

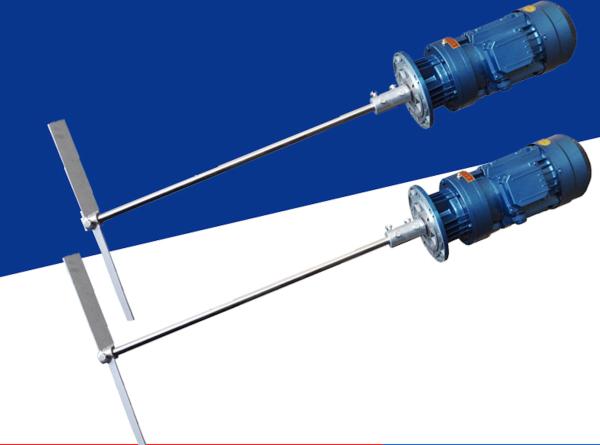

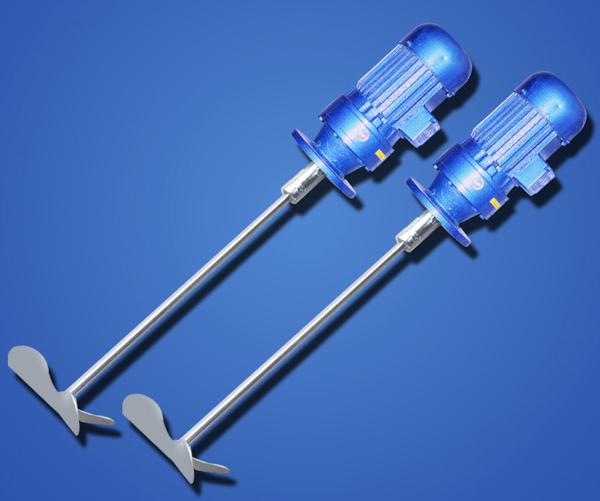

Product Images
55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment 55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment 55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment 55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment 55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment 55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment 55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment 55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment 55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment 55 Gallon Drum Mixers Agitators BLD Vertical IBC Stirrer For Sewage Treatment
