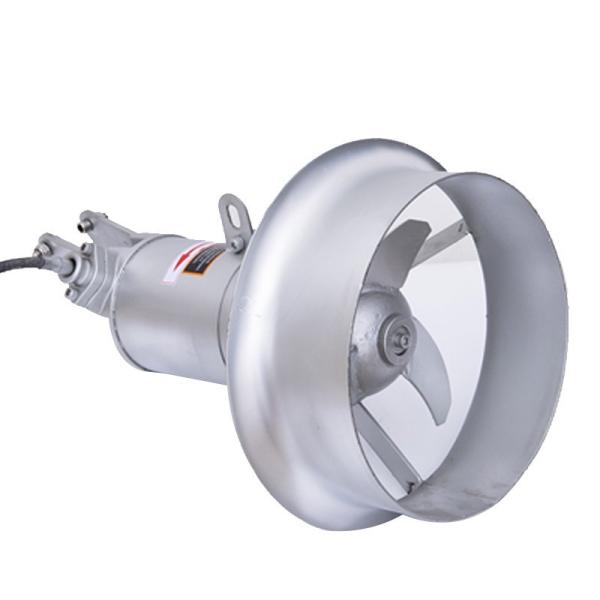

FANBAO 3000L/Hour Submersible Liquid Drum Agitator Mixer For Wastewater Treatment Diving Stirrer
FANBAO 3000L/Hour Submersible Liquid Drum Agitator Mixer For Wastewater Treatment Diving Stirrer
FANBAO 3000L/Hour Submersible Liquid Drum Agitator Mixer For Wastewater Treatment Diving Stirrer
FANBAO 3000L/Hour Submersible Liquid Drum Agitator Mixer For Wastewater Treatment Diving Stirrer
Specifications
Brand Name :
FANBAO
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets/month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
product name :
Agitator Submersible Mixer For Wastewater Treatment Diving Stirrer Working Under Water
Power :
0.37-10kw
Function :
Water Treatment Systerm
Productivity :
3000L/Hour
Applicable Industries :
sewage treatment, environmental protection
Material :
Stainless Steel 304
Description
Submersible Liquid Drum Agitator Mixer For Wastewater Treatment Diving Stirrer
Product Specifications
Product Name Agitator Submersible Mixer For Wastewater Treatment Diving Stirrer Working Under Water
Power 0.37-10kw
Function Water Treatment System
Productivity 3000L/Hour
Applicable Industries Sewage treatment, Environmental protection
Material Stainless Steel 304
Product Description

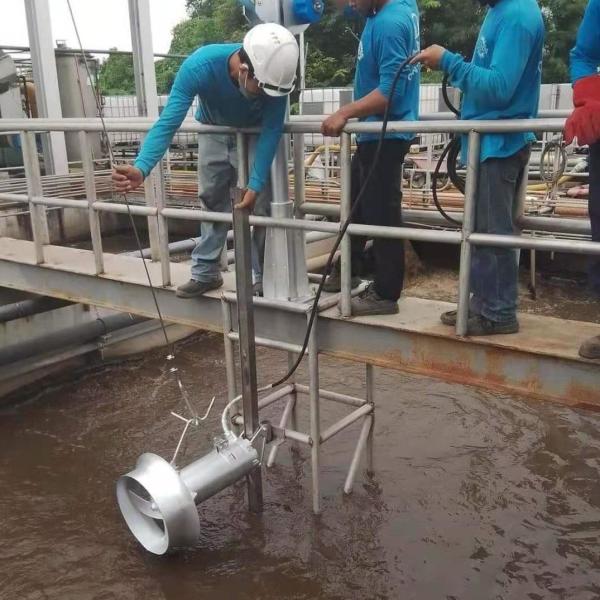

The submersible mixer is designed for mixing, agitating and creating ring flows in municipal and industrial sewage treatment processes including active sludge tanks, bioreactor tanks, mixing tanks, equalizing reservoirs, and sewage tanks. It also serves as maintenance equipment for landscape water environments, improving water quality while preventing sedimentation of suspended substances.

Key Features
  • Dual mechanical seals: Ensures long-term reliable operation of the submersible motor
  • Premium bearings: High-quality international bearings with extended maintenance-free service life
  • Advanced cable sealing: Unique design eliminates water leakage risks
  • Stainless steel shaft: With dynamically balanced rotors for smooth operation
  • Safety systems: Built-in leakage sensor and stator winding temperature protection (except MA0.37/6 and MA0.55/4 models)
  • Optimized impeller design: Stainless steel sweptback impeller provides high efficiency and self-cleaning
  • FRP propeller vanes: Sweptback shape with self-cleaning function and equal power distribution
Operating Conditions
  • Maximum media temperature: 40°C
  • Media pH range: 5-9
  • Maximum media density: 1150kg/m³
  • Maximum submersion depth: 20m
  • Power supply: 380V, 50Hz
  • Motor specifications: F/H class insulation, IP68 rated for continuous 24-hour operation
  • Must operate fully submerged in water
Technical Specifications
Model Motor Power (kw) Rated Current (A) RPM Diameter (mm) Weight (kg)
SM0.37/-220/3-980/S 0.37 4 980 220 25/50
SM0.85/8-260/3-740/S 0.85 8 740 260 Data not available
