Movable IBC Mixer Agitator 1.5kw High Shear Mixer Homogenizer Emulsifier 2940RPM
Movable IBC Mixer Agitator 1.5kw High Shear Mixer Homogenizer Emulsifier 2940RPM
Movable IBC Mixer Agitator 1.5kw High Shear Mixer Homogenizer Emulsifier 2940RPM
Movable IBC Mixer Agitator 1.5kw High Shear Mixer Homogenizer Emulsifier 2940RPM
Specifications
Brand Name :
FANBAO
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
mixing tank size :
100L to 20000L
mixer power :
1.5kw-11kw. or customizable
Homogenizer Speed :
2940RPM
Material :
Stainless Steel
Surface Finish :
Mirror Polish
Supporting Legs :
Adjustable
Motor Power :
0.55-55KW
Control System :
PLC
Heating Method :
Electric Heating
Application :
Food, Beverage, Pharmaceutical, Chemical, etc.
Tank Shape :
Cylindrical
Mixing Mode :
Continuous
Description
1.5kw Movable High Shear Mixer Homogenizer Emulsifier 2940RPM
Key Specifications
Mixing Tank Size 100L to 20000L
Mixer Power 1.5kw-11kw (customizable)
Homogenizer Speed 2940RPM
Material Stainless Steel
Surface Finish Mirror Polish
Control System PLC
Applications Food, Beverage, Pharmaceutical, Chemical Industries
Product Overview

The high shear homogenizer mixer is a precision-engineered industrial mixing solution designed for efficient blending, dispersion, and emulsification in pharmaceutical, food processing, cosmetic, and chemical applications.

Core Components
  • Motor: Electric-powered with variable speed control for precise mixing intensity
  • Mixing Chamber: Durable stainless steel construction
  • Rotor/Impeller: High-speed rotating component with specialized blades for maximum shear force
  • Stator: Stationary shearing surface that creates high-pressure mixing zones
  • Control System: PLC interface for precise parameter adjustment

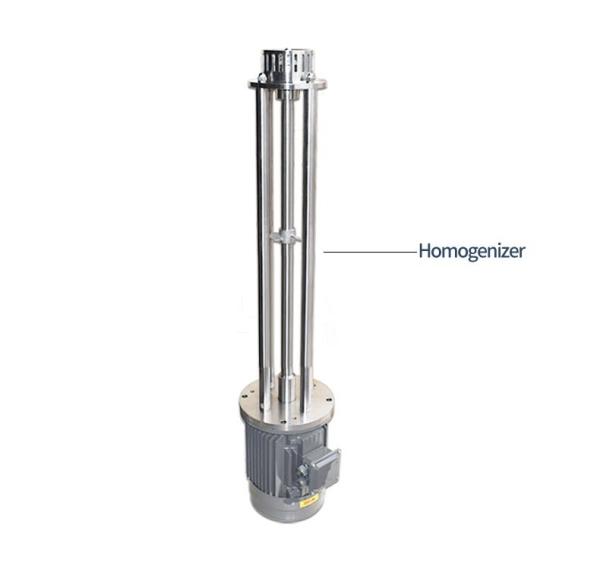

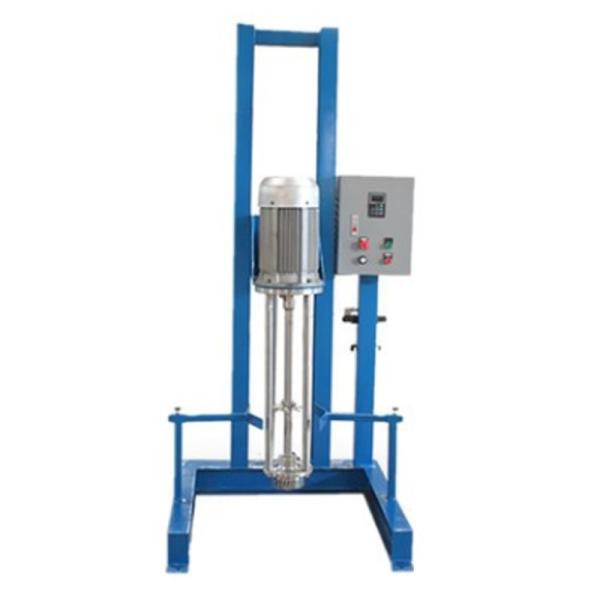

Technical Images
Movable IBC Mixer Agitator 1.5kw High Shear Mixer Homogenizer Emulsifier 2940RPM Movable IBC Mixer Agitator 1.5kw High Shear Mixer Homogenizer Emulsifier 2940RPM Movable IBC Mixer Agitator 1.5kw High Shear Mixer Homogenizer Emulsifier 2940RPM
Customizable Stainless Steel Mixing Tank Options
Profile/Type Single Layer Double Layer Three Layer
Material SS304L, SS316L
Volume Range 100L-20000L
Heating Methods Electric Heating, Steam Heating
Surface Finish Mirror polished (Ra<0.4um) or 2B Satin Finish
Movable IBC Mixer Agitator 1.5kw High Shear Mixer Homogenizer Emulsifier 2940RPM Movable IBC Mixer Agitator 1.5kw High Shear Mixer Homogenizer Emulsifier 2940RPM Movable IBC Mixer Agitator 1.5kw High Shear Mixer Homogenizer Emulsifier 2940RPM
Technical Specifications by Model
Model Heater (KW) Mixer (KW) Mixer Speed (RPM) Homogenizer (KW) Homogenizer Speed (RPM)
DFM-200L 6 1.5 0-63 4 2890
DFM-300L 9 2.2 0-63 4 2890
DFM-500L 18 3-4 0-63 5.5 2900
DFM-1000L 27KW/steam 4-5.5 0-63 7.5 2900
DFM-2000L 27KW/steam 5.5 0-63 11 2930

All specifications can be customized to meet specific production requirements.

Operation Principle

The movable high shear mixer homogenizer emulsifier rapidly disperses phases through mechanical and liquid shearing forces. The high-speed rotor creates centrifugal force and pressure in the narrow gap between rotor and stator, resulting in:

  • Instant dispersion and emulsification
  • Uniform particle size reduction
  • Stable, high-quality product output
  • Efficient processing of solids, liquids, and gases
Movable IBC Mixer Agitator 1.5kw High Shear Mixer Homogenizer Emulsifier 2940RPM
