Stainless Steel Portable IBC Mixer Agitator Cosmetic High Shear Homogenizer Pneumatic Lifting
Stainless Steel Portable IBC Mixer Agitator Cosmetic High Shear Homogenizer Pneumatic Lifting
Stainless Steel Portable IBC Mixer Agitator Cosmetic High Shear Homogenizer Pneumatic Lifting
Stainless Steel Portable IBC Mixer Agitator Cosmetic High Shear Homogenizer Pneumatic Lifting
Specifications
Brand Name :
FANBAO
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
mixing tank size :
100L to 20000L
mixer power :
1.5kw-11kw. or customizable
Homogenizer :
2930 RMP
Material :
SUS304, SUS304L, SUS316, SUS316L
Surface Finish :
Mirror Polish
Motor Power :
1.5kw
Max. Loading Capacity :
500kg
Heating Method :
Electric Heating
weight :
85kg
Description
Stainless Steel Portable Agitator Mixer Cosmetic High Shear Homogenizer Pneumatic Lifting
Product Specifications
Mixing Tank Size 100L to 20000L
Mixer Power 1.5kw-11kw (customizable)
Homogenizer Speed 2930 RPM
Material SUS304, SUS304L, SUS316, SUS316L
Surface Finish Mirror Polish
Motor Power 1.5kw
Max. Loading Capacity 500kg
Heating Method Electric Heating
Weight 85kg
Product Overview
The Stainless Steel Cosmetic High Shear Pneumatic Lifting Homogenizer Mixer is engineered for efficient mixing of oil and water phases to create stable, homogeneous emulsions. Its high shear mixing capability ensures rapid dispersion and prevents agglomeration issues, particularly when incorporating gums like Carbopol.
Key Features

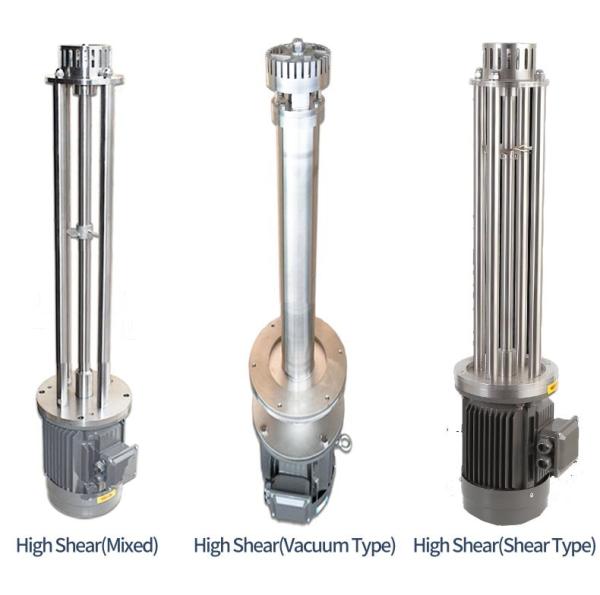

  • Precision engineered rotor & stator with single/double vortex design
  • Rotation speed: 0-3000rpm
  • Pneumatic lifting height: 900mm
  • Operating air pressure: 0.4Mpa
  • 3kw motor power
  • Portable design for easy operation and stable performance
Stainless Steel Portable IBC Mixer Agitator Cosmetic High Shear Homogenizer Pneumatic Lifting Stainless Steel Portable IBC Mixer Agitator Cosmetic High Shear Homogenizer Pneumatic Lifting Stainless Steel Portable IBC Mixer Agitator Cosmetic High Shear Homogenizer Pneumatic Lifting
Customizable Mixing Tank Options
Parameter Options
Profile/Type Single layer tank, Double layers tank, Three layers tank
Material SS304L, SS316L
Volume 100L-20000L
Tank Type Vertical, Horizontal, Mobile
Heating Method Electric Heating, Steam Heating
Surface Finish Mirror polished (Ra<0.4um) interior, 2B Satin exterior
Stirrer Types Impeller, Anchor, Turbine, High shear, Magnetic mixer, Anchor mixer with scraper
Stainless Steel Portable IBC Mixer Agitator Cosmetic High Shear Homogenizer Pneumatic Lifting Stainless Steel Portable IBC Mixer Agitator Cosmetic High Shear Homogenizer Pneumatic Lifting Stainless Steel Portable IBC Mixer Agitator Cosmetic High Shear Homogenizer Pneumatic Lifting
Technical Specifications by Model
Model Heater (KW) Mixer (KW) Mixer Speed (RPM) Homogenizer (KW) Homogenizer Speed (RPM)
DFM-200L 6 1.5 0-63 4 2890
DFM-300L 9 2.2 0-63 4 2890
DFM-500L 18 3-4 0-63 5.5 2900
DFM-1000L 27KW/steam 4-5.5 0-63 7.5 2900
DFM-2000L 27KW/steam 5.5 0-63 11 2930
DFM-3000L 36KW/steam 7.5 0-63 15 2930
DFM-5000L 48KW/steam 11 0-63 22 2940
Customizable All specifications can be customized to customer requirements
Operation Principle
The movable high shear mixer homogenizer quickly and evenly disperses phases through high-speed rotation (15-40m/s line speed). The precision rotor-stator design creates strong mechanical and liquid shearing forces, centrifugal force, pressing, and liquid fraction in the narrow processing chamber. This action thoroughly emulsifies, homogenizes, and breaks down materials, producing stable, high-quality products.
Working Process
High-speed rotor rotation generates centrifugal force that draws material into the operation chamber. The material undergoes intense mechanical processing in the rotor-stator gap before being ejected radially. Multiple circulation cycles through this process ensure complete dispersion and emulsification.
Stainless Steel Portable IBC Mixer Agitator Cosmetic High Shear Homogenizer Pneumatic Lifting
