Features

1. High power, Small body size.
2. It is suitable for protecting circuit boards.
3. Noncombustible insulating coating, Solvent Proof and resistant to high temperature.
4. Low temperature coefficient (200ppm/℃).
5. Uniform in fusing time.

Product Positioning and Core Application

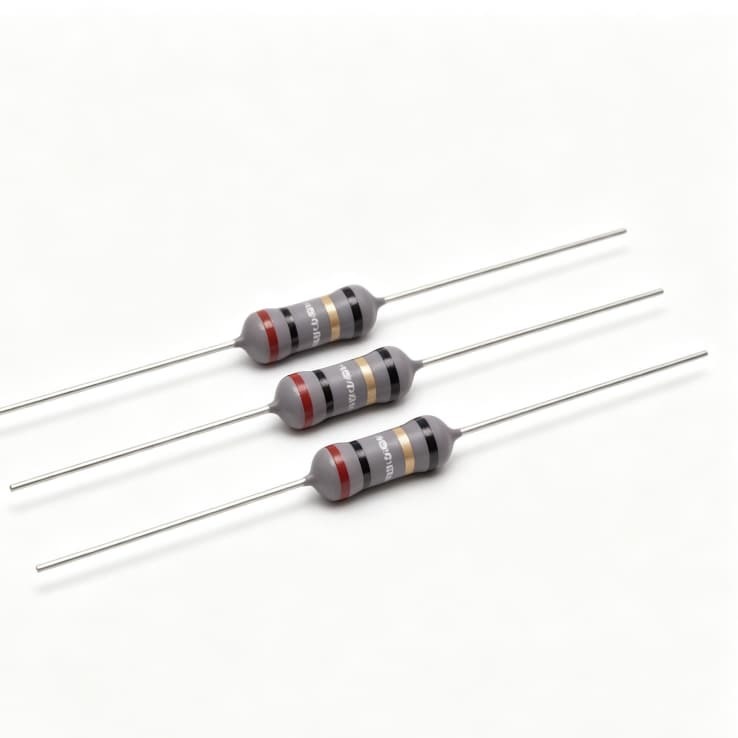

The FRN series is a small size flameproof fusible resistor designed for circuit board protection. It combines resistor functionality with a fusible protection function in a compact body, providing multiple rated power options for different circuit designs.

The FRN series features a 200 ppm/℃ resistance temperature coefficient and a specified fusing time within 60 seconds. With an operating temperature range of −55°C to +155°C, the resistor can be selected according to resistance value, rated power, working voltage and circuit protection requirements.

Electrical and Mechanical Specifications

Application Areas

Circuit Board Protection

The FRN fusible resistor is suitable for PCB circuits requiring resistor-based circuit protection. Its fusible function enables the component to provide both resistance and protective functionality within the circuit.

Power Supply Circuits

For power supply and related electronic circuits, the FRN series can be selected according to resistance, rated power, working voltage and circuit requirements. Rated power options from 1/2W to 3W support different circuit configurations.

Electronic Equipment

The compact construction of the FRN series makes it suitable for electronic equipment where PCB space and circuit protection requirements must be considered together. Its noncombustible insulating coating, solvent resistance and high-temperature resistance support use under specified operating conditions.

Compact PCB Designs

The FRN series provides a compact fusible resistor solution for PCB designs requiring circuit protection within limited board space. Engineers can select the appropriate resistance and rated power according to the electrical requirements of the application.
