RGB Quartz Color Sorter 220V Silica Powder Color Sorting Machine
RGB Quartz Color Sorter 220V Silica Powder Color Sorting Machine
Specifications
Brand Name :
PHOENIX
Model Number :
Stein VOP RGB Sorte
Place of Origin :
Hefei
MOQ :
1
Price :
Price Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Delivery Time :
5-8 work days
Model :
VOP6 Ultra
Air Nozzle :
384
Voltage :
220V ~ 50/60Hz
Air Pressure (MPa) :
0.6-0.8
Description
VOP Quartz/Silica Powder Color Sorter Machine

VOP Series ore quartz powder sorting machine providing sorting solutions for the quartz/silica powder range from 16mesh-120mesh.

Product Description

VOP series are quartz powder sorting machine integrates advanced visible light sorting technologies.

VOP is suitable for sorting raw quartz sandstone, completely replace the artificial sorting.The vertical chute design solves the problems of ore and belt bonding during the fine ore sorting process with a wide range of ore powder size ranging from 16 mesh to 120 mesh.

Our Advantages
  • Double-layer sorting, low carryover ratio, high accuracy.
  • The chute is made of high-density alloy material, which is resistant to abrasion and scratches.
  • Low air consumption, ultra-high frequency ejectors, greatly reducing the ratio of rejections, with anti-dust in dust fog environment.
  • Suspension type cleaning device can also show high sorting accuracy in high dust environment.
  • Single chute with four-view cameras, 128 nozzle design, the highest configuration in the industry.

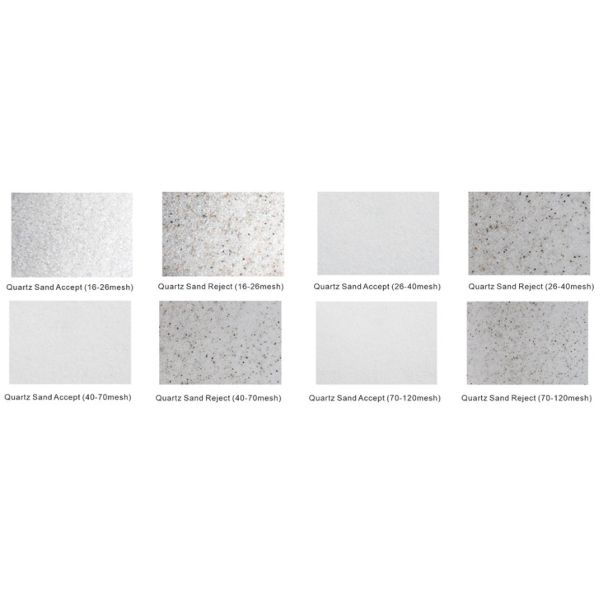

Quartz/silica Sand Sorting Applications
RGB Quartz Color Sorter 220V Silica Powder Color Sorting Machine

Model VOP6 Ultra VOP8 Ultra
Chute 6 8
Air Nozzle 384 512
Throughput 16-26 mesh: 5-7t/h
26-40 mesh: 4-6t/h
40-70 mesh: 3-5t/h
70-120 mesh: 2-3t/h		 16-26 mesh: 8-10t/h
26-40 mesh: 7-8t/h
40-70 mesh: 5-7t/h
70-120 mesh: 3-5t/h
Voltage 220V ~ 50/60Hz 220V ~ 50/60Hz
Power (kW) 7 8.4
Air Pressure (MPa) 0.6-0.8 0.6-0.8
Air Consumption (L/min) ≤3600 ≤5000
Unpacked Weight (kg) 2350 3500
Dimension (mm) 2814×2029×2609 4053×2178×2661
