20D Solid Carbide Twist Drill Bit ISO Standard High Speed Cutting Capability
20D Solid Carbide Twist Drill Bit ISO Standard High Speed Cutting Capability
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2pc
Price :
10—416 USD
Delivery Time :
7-10 days
Supply Ability :
1000000 Piece/Pieces per Month
Model Number :
SP-P80120
Use :
Metal Drilling
Flute Type :
Straight
Precision :
High Precision
Shank Type :
Cylindrical
Shank :
Round Shank
Surface Finish :
Bright
Helix Angle :
30 Degrees
Application :
Metal Drilling
Description

Product Description:

A high-performance solid carbide twist drill designed for ultra-deep-hole machining up to 20 × D. Compliant with ISO standards, this drill features internal cooling channels to deliver high-pressure coolant directly to the cutting edges, ensuring efficient chip evacuation, reduced heat, and superior hole quality. Optimized for high-speed cutting, it provides excellent stability, precision, and long tool life across a range of materials including steels, stainless steels, aluminum, and alloys.

Features:

  • 20 × D drilling depth → ideal for ultra-deep-hole precision machining.

  • Solid carbide construction → high rigidity, excellent wear resistance, and long service life.

  • ISO standard design → ensures universal compatibility and process reliability.

  • Internal cooling channels → deliver coolant directly to the cutting edges for improved cooling and chip evacuation.

  • Optimized point angle and cutting edges → reduce thrust force and enhance centering and precision.

  • Advanced flute geometry → promotes smooth chip evacuation, especially in deep holes.

  • High-speed cutting capability → supports modern CNC machining of steels, cast irons, aluminum, and alloys.

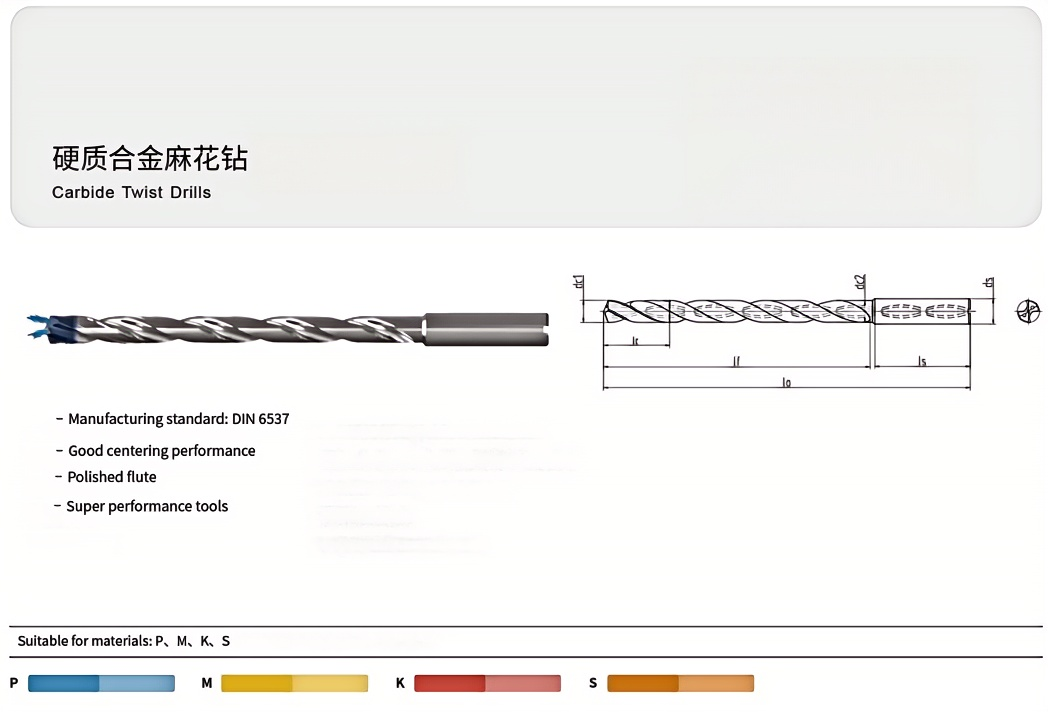

Technical Parameters:

20D Solid Carbide Twist Drill Bit ISO Standard High Speed Cutting Capability



Order code


φ ·dc

h7


If


ds

h6


ls


lo



Dimension Code


Recommended Tap


Cutting Tap


Forming Tap


3.0


70


4


36


110


0300


3.5


91


4


36


129


0350


M4x0.5 N0.8-36UNF


4.0


91


4


36


129


0400


4.5


118


6


36


158


0450


M5x0.5 NO.12-24UNC


5.0


118



6


36


158


0500


M6x1


5.5


134


6


36


172


0550


1/4-28UNF


M6x1


6.0


134



6


36


172


0600


6.5


162




7


36


200


0650


7.0


162


8


36


200


0700


M8x1


7.5


184


8


36


222


0750


8.0


184


8


36


222


0800


3/8-16UNC


8.5


205


10


40


249


0850


9.0


205


10


40


249


0900


M10x1


9.5


227


10


40


271


0950


10.0


227


10


40


271


1000


Applications:


  • Aerospace components requiring ultra-deep precision holes.

  • Automotive engine blocks, cylinder heads, transmission housings, and chassis components.

  • Oil & gas equipment with long fluid channels and deep holes.

  • Mold & die industry for deep cooling channels.

  • General mechanical components with deep mounting, cooling, or lubrication holes.
