Special Solid Carbide Drill High Precision For 8D Internal Cooling Deep Hole Aluminum
Special Solid Carbide Drill High Precision For 8D Internal Cooling Deep Hole Aluminum
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2pc
Price :
10—416 USD
Delivery Time :
7-10 days
Supply Ability :
1000000 Piece/Pieces per Month
Model Number :
SP-N80008
Standard :
ISO, DIN
Flute Type :
Straight
Surface Finish :
Bright
Precision :
High Precision
Shank Type :
Cylindrical
Use :
Metal Drilling
Suitable for materials :
P 、M 、K 、S
Usage :
General High Speed Cutting
Description

Product Description:

Solid Carbide Drill

A Solid Carbide Drill represents a top-tier cutting instrument crafted exclusively from solid carbide substance, devoid of any welded or connected components. This drill finds extensive applicability across industries spanning aerospace, automotive, mold production, electronics, and medical equipment manufacturing, primarily owing to its outstanding attributes of hardness, wear resistance, and thermal robustness.

Features:

Solid carbide drills (through-coolant, polished flutes) → best for productivity and accuracy.

  • Sharp cutting edges (high rake angle, polished margin).

  • 130°–140° point angle → helps with centering and reduces thrust force.

  • Highly polished flutes → reduce chip adhesion and help chip evacuation.

Special Solid Carbide Drill High Precision For 8D Internal Cooling Deep Hole Aluminum

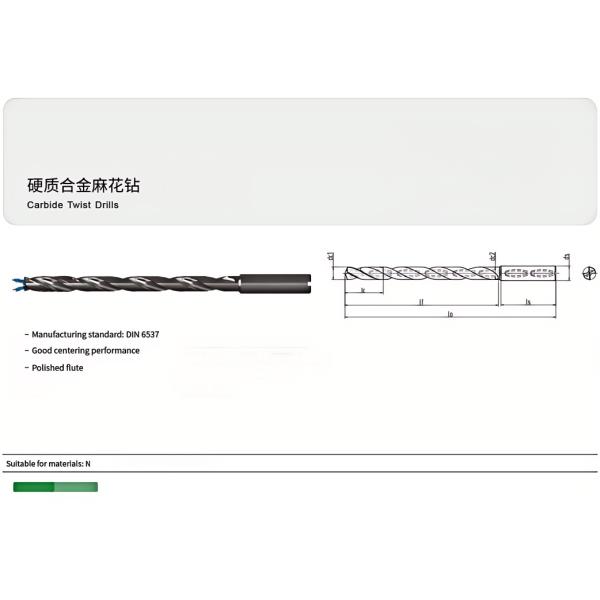

Technical Parameters:

Order code
φ ·dc If ds ls lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
3 30 4 36 70 300

3.1 30 4 36 70 310

3.2 30 4 36 70 320

3.3 30 4 36 70 330 M4x0.7
3.4 35.5 4 36 75 340 NO.8-32UNC
3.5 35.5 4 36 75 350 M4x0.5 N0.8-36UNF
3.6 35.5 4 36 75 360

3.7 35.5 4 36 75 370
M4×0.7
3.8 42 4 36 83 380
M4x0.5
3.9 42 4 36 83 390 N0.10-24UNC
4 42 4 36 83 400

4.1 50 6 36 90 410 N0.10-32UNF
4.2 50 6 36 90 420 M5×0.8
4.3 50 6 36 90 430

4.4 50 6 36 90 440

4.5 50 6 36 90 450 M5×0.5 NO.12-24UNC
4.6 50 6 36 90 460 N0.12-28UNF M5x0.8
4.7 50 6 36 90 470 N0.12-32UNEF
4.8 50 6 36 90 480

A.9 50 6 36 90 490

5 50 6 36 90 500 M6x1
5.1 57 6 36 97 510 1/4-20UNC
5.2 57 6 36 97 520

5.3 57 6 36 97 530 M6x0.75
5.4 57 6 36 97 540

5.5 57 6 36 97 550 1/4-28UNF M6x1
5.6 57 6 36 97 560 1/4-32UNEF
5.7 57 6 36 97 570

5.8 57 6 36 97 580

5.9 57 6 36 97 590

Order code
φ ·dc If ds Is lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
6 57 6 36 97 600

6.1 66 8 36 106 610

6.2 66 8 36 106 620

6.3 66 8 36 106 630

6.4 66 8 36 106 640

6.5 66 8 36 106 650

6.6 66 8 36 106 660 5/16-18UNC
6.7 66 8 36 106 670

6.8 66 8 36 106 680 M8x1.25
6.9 76 8 36 116 690 5/16-24UNF
7 76 8 36 116 700 M8x1
7.1 76 8 36 116 710 5/16-32UNEF
7.2 76 8 36 116 720

7.3 76 8 36 116 730 M8x0.75
7.4 76 8 36 116 740
M8x1.25
7.5 76 8 36 116 750

7.6 76 8 36 116 760

7.7 76 8 36 116 770

7.8 76 8 36 116 780

7.9 76 8 36 116 790

8 76 8 36 116 800 3/8-16UNC
8.1 87 10 40 131 810

8.2 87 10 40 131 820

8.3 87 10 40 131 830

8.4 87 10 40 131 840

8.5 87 10 40 131 850 M10x1.53/8-24UNF
8.6 87 10 40 131 860

8.7 87 10 40 131 870 3/8-32UNEF
8.8 87 10 40 131 880 M10×1.25
8.9 87 10 40 131 890

Order code
φ ·dc If ds ls lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
9 87 10 40 131 900 M10x1
9.1 95 10 40 139 910

9.2 95 10 40 139 920

9.3 95 10 40 139 930 M10x0.75 M10x1.5
9.4 95 10 40 139 940 7/16-14UNC
9.5 95 10 40 139 950

9.6 95 10 40 139 960

9.7 95 10 40 139 970

9.8 95 10 40 139 980

9.9 95 10 40 139 990 7/16-20UNF
10 95 10 40 139 1000

10.1 106 12 45 155 1010

10.2 106 12 45 155 1020 7/16-28UNEF
10.3 106 12 45 155 1030 M12x1.75
10.4 106 12 45 155 1040

10.5 106 12 45 155 1050

10.6 106 12 45 155 1060

10.7 106 12 45 155 1070

10.8 106 12 45 155 1080

10.9 106 12 45 155 1090 1/2-13UNC
11 106 12 45 155 1100 M12x1
11.1 114 12 45 163 1110

11.2 114 12 45 163 1120
M12x1.75
11.3 114 12 45 163 1130

11.4 114 12 45 163 1140

11.5 114 12 45 163 1150 1/2-20UNF
11.6 114 12 45 163 1160

11.7 114 12 45 163 1170

11.8 114 12 45 163 1180 1/2-28UNEF
11.9 114 12 45 163 1190

Order code
φ ·dc If ds Is lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
12 114 12 45 163 1200 M14×2
12.1 133 14 45 182 1210

12.2 133 14 45 182 1220 9/16-12UNC
12.3 133 14 45 182 1230

12.4 133 14 45 182 1240

12.5 133 14 45 182 1250 M14×1.5
12.6 133 14 45 182 1260

12.7 133 14 45 182 1270

12.8 133 14 45 182 1280

12.9 133 14 45 182 1290 9/16-18UNF
13 133 14 45 182 1300 M14x1 M14×2
13.1 133 14 45 182 1310

13.2 133 14 45 182 1320 9/16-24UNEF
13.3 133 14 45 182 1330

13.4 133 14 45 182 1340

13.5 133 14 45 182 1350

13.6 133 14 45 182 1360 5/8-11UNC
13.7 133 14 45 182 1370

13.8 133 14 45 182 1380

13.9 133 14 45 182 1390

14 133 14 45 182 1400 M16x2
14.1 152 16 48 204 1410

14.2 152 16 48 204 1420

14.3 152 16 48 204 1430

14.4 152 16 48 204 1440

14.5 152 16 48 204 1450 M16x1.55/8-18UNF
14.6 152 16 48 204 1460

14.7 152 16 48 204 1470

14.8 152 16 48 204 1480 5/8-24UNEF
14.9 152 16 48 204 1490

Order code
φ ·dc If ds ls lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
15 152 16 48 204 1500 M16x1 M16x2
15.1 152 16 48 204 1510

15.2 152 16 48 204 1520

15.3 152 16 48 204 1530

15.4 152 16 48 204 1540

15.5 152 16 48 204 1550 M18x2.5
15.6 152 16 48 204 1560

15.7 152 16 48 204 1570

15.8 152 16 48 204 1580

15.9 152 16 48 204 1590

16 152 16 48 204 1600 M18x2
16.1 171 18 48 223 1610

16.2 171 18 48 223 1620

16.3 171 18 48 223 1630

16.4 171 18 48 223 1640

16.5 171 18 48 223 1650

16.6 171 18 48 223 1660 3/4-10UNC
16.7 171 18 48 223 1670

16.8 171 18 48 223 1680

16.9 171 18 48 223 1690

17 171 18 48 223 1700 M18x1
17.1 171 18 48 223 1710

17.2 171 18 48 223 1720

17.3 171 18 48 223 1730

17.4 171 18 48 223 1740

17.5 171 18 48 223 1750 M20x2.53/4-16UNF
17.6 171 18 48 223 1760

17.7 171 18 48 223 1770

17.8 171 18 48 223 1780 3/4-20UNEF
17.9 171 18 48 223 1790

Order code
φ ·dc If ds Is lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
18 171 18 48 223 1800 M20x2
18.1 190 20 50 244 1810

18.2 190 20 50 244 1820

18.3 190 20 50 244 1830

18.4 190 20 50 244 1840

18.5 190 20 50 244 1850 M20x1.5
18.6 190 20 50 244 1860

18.7 190 20 50 244 1870

18.8 190 20 50 244 1880

18.9 190 20 50 244 1890

19 190 20 50 244 1900 M20x1
19.1 190 20 50 244 1910

19.2 190 20 50 244 1920

19.3 190 20 50 244 1930

19.4 190 20 50 244 1940

19.5 190 20 50 244 1950

19.6 190 20 50 244 1960 7/8-9UNC
19.7 190 20 50 244 1970

19.8 190 20 50 244 1980

19.9 190 20 50 244 1990

20 190 20 50 244 2000 M22x2

Application

1. Aerospace

  • Aircraft structural parts: wing spars, ribs, skins (thick aluminum plates requiring deep positioning or through-holes).

  • Engine components: auxiliary holes, cooling and lubrication passages.

2. Automotive Industry

  • Engine blocks and cylinder heads: deep oil and water channels.

  • Chassis / structural parts: lightweight aluminum components with deep mounting holes.

3. Mold & Die Manufacturing

  • Injection molds and die-casting molds: deep cooling water channels in aluminum molds.

  • Complex cavity molds: auxiliary deep-hole drilling for machining access.

4. General Machinery & Equipment

  • Hydraulic valve bodies and pump housings: deep oil and fluid passages.

  • Precision instruments: lightweight aluminum housings with deep through-holes or bolt holes.

5. New Energy & Electrical Industry

  • Battery housings: thermal management or cooling passages.

  • Motor housings: mounting holes and deep cooling holes.
