Solid Carbide Drill 8D High Speed Cutting for Steel ISO DIN Standard Internal Cooling
Solid Carbide Drill 8D High Speed Cutting for Steel ISO DIN Standard Internal Cooling
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2pc
Price :
10—416 USD
Delivery Time :
7-10 days
Supply Ability :
1000000 Piece/Pieces per Month
Model Number :
SP-X80108
Suitable for materials :
P 、M 、K 、S
Customize :
Available
Standard :
ISO, DIN
Shank :
Round Shank
Usage :
General High Speed Cutting
Application :
Metal Drilling
Shank Type :
Cylindrical
Use :
Metal Drilling
Description

Product Description:

Solid Carbide Drill
A Solid Carbide Drill is a cutting tool that offers exceptional performance, being crafted completely from solid carbide material with no welded or assembled components. Its application spans across various industries including aerospace, automotive, mold making, electronics, and medical manufacturing, thanks to its impressive attributes of high hardness, exceptional wear resistance, and remarkable thermal stability.


Features:


Key Features:
High Hardness and Wear Resistance
Made from tungsten carbide (often with cobalt binders), solid carbide drills can maintain cutting performance at high temperatures, making them ideal for machining hard materials like stainless steel, titanium alloys, cast iron, and tool steels.

Superior Dimensional Accuracy and Surface Finish
The solid one-piece structure reduces runout and vibration, ensuring high hole accuracy and smooth surface finishes.

High Cutting Speeds and Long Tool Life
Suitable for high-speed machining applications with significantly longer tool life compared to HSS (High-Speed Steel) drills, resulting in fewer tool changes and reduced downtime.

Advanced Coatings Available
Coatings such as TiAlN, AlTiN, and DLC enhance heat resistance and reduce friction, further extending tool life and improving performance in dry or semi-dry cutting conditions.

Versatile Design Options
Available with various geometries, helix angles, and options like through-coolant holes for deep-hole or high-efficiency drilling.

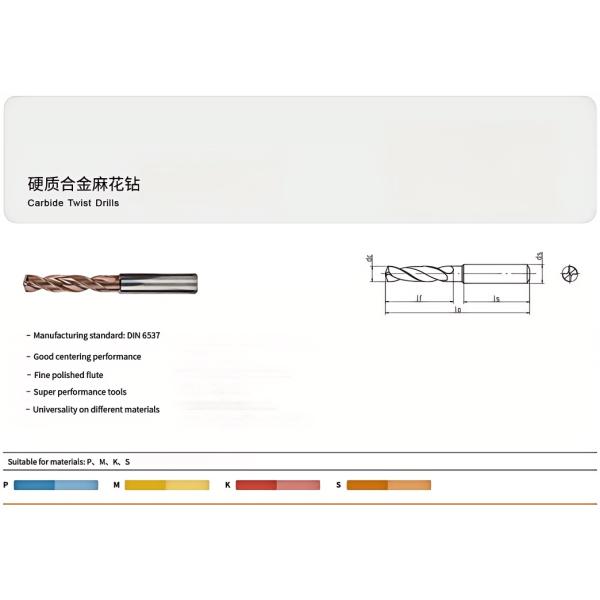

Technical Parameters:


Solid Carbide Drill 8D High Speed Cutting for Steel ISO DIN Standard Internal Cooling

订货编号 ·Order code
φ ·dc 槽长If 柄径ds 柄长ls 总长lo 尺寸编号 丝锥推荐Recommended Tap



公差m7 公差h6 Dimension Code 切削丝锥Cutting Tap 挤压丝锥Forming Tap
3 35.5
4 36 75 300


3.1 35.5 4 36 75 310

3.2 35.5 4 36 75 320

3.3 35.5 4 36 75 330 M4x0.7
3.4 35.5 4 36 75 340 NO.8-32UNC
3.5 35.5 4 36 75 350 M4x0.5 N0.8-36UNF
3.6 35.5 4 36 75 360

3.7 35.5 4 36 75 370
M4×0.7
3.8 42 4 36 83 380
M4x0.5
3.9 42 4 36 83 390 N0.10-24UNC
4 42 4 36 83 400

4.1 50 6 36 90 410 N0.10-32UNF
4.2 50 6 36 90 420 M5×0.8
4.3 50 6 36 90 430

4.4 50 6 36 90 440

4.5 50 6 36 90 450 M5×0.5 NO.12-24UNC
4.6 50 6 36 90 460 N0.12-28UNF M5x0.8
4.7 50 6 36 90 470 N0.12-32UNEF
4.8 50 6 36 90 480

A.9 50 6 36 90 490

5 50 6 36 90 500 M6x1
5.1 57 6 36 97 510 1/4-20UNC
5.2 57 6 36 97 520

5.3 57 6 36 97 530 M6x0.75
5.4 57 6 36 97 540

5.5 57 6 36 97 550 1/4-28UNF M6x1
5.6 57 6 36 97 560 1/4-32UNEF
5.7 57 6 36 97 570

5.8 57 6 36 97 580

5.9 57 6 36 97 590

订货编号 ·Order code
φ ·dc 槽长If 柄径ds 柄长Is 总长lo 尺寸编号 丝锥推荐Recommended Tap




公差m7 公差h6 Dimension Code 切削丝锥Cutting Tap 挤压丝锥Forming Tap
6 57 6 36 97 600


6.1 66 8 36 106 610


6.2 66 8 36 106 620


6.3 66 8 36 106 630


6.4 66 8 36 106 640


6.5 66 8 36 106 650


6.6 66 8 36 106 660 5/16-18UNC

6.7 66 8 36 106 670


6.8 66 8 36 106 680 M8x1.25

6.9 76 8 36 116 690 5/16-24UNF

7 76 8 36 116 700 M8x1

7.1 76 8 36 116 710 5/16-32UNEF

7.2 76 8 36 116 720


7.3 76 8 36 116 730 M8x0.75

7.4 76 8 36 116 740
M8x1.25
7.5 76 8 36 116 750


7.6 76 8 36 116 760


7.7 76 8 36 116 770


7.8 76 8 36 116 780


7.9 76 8 36 116 790


8 76 8 36 116 800 3/8-16UNC

8.1 87 10 40 131 810


8.2 87 10 40 131 820


8.3 87 10 40 131 830


8.4 87 10 40 131 840


8.5 87 10 40 131 850 M10x1.53/8-24UNF

8.6 87 10 40 131 860


8.7 87 10 40 131 870 3/8-32UNEF

8.8 87 10 40 131 880 M10×1.25

8.9 87 10 40 131 890


订货编号 ·Or der code






φ ·dc 槽长If 柄径ds 柄长ls 总长lo 尺寸编号 丝锥推荐Recommended Tap




公差m7 公差h6 Dimension Code 切削丝锥Cutting Tap 挤压丝锥Forming Tap
9 87 10 40 131 900 M10x1

9.1 95 10 40 139 910


9.2 95 10 40 139 920


9.3 95 10 40 139 930 M10x0.75 M10x1.5
9.4 95 10 40 139 940 7/16-14UNC

9.5 95 10 40 139 950


9.6 95 10 40 139 960


9.7 95 10 40 139 970


9.8 95 10 40 139 980


9.9 95 10 40 139 990 7/16-20UNF

10 95 10 40 139 1000


10.1 106 12 45 155 1010


10.2 106 12 45 155 1020 7/16-28UNEF

10.3 106 12 45 155 1030 M12x1.75

10.4 106 12 45 155 1040


10.5 106 12 45 155 1050


10.6 106 12 45 155 1060


10.7 106 12 45 155 1070


10.8 106 12 45 155 1080


10.9 106 12 45 155 1090 1/2-13UNC

11 106 12 45 155 1100 M12x1

11.1 114 12 45 163 1110


11.2 114 12 45 163 1120
M12x1.75
11.3 114 12 45 163 1130


11.4 114 12 45 163 1140


11.5 114 12 45 163 1150 1/2-20UNF

11.6 114 12 45 163 1160


11.7 114 12 45 163 1170


11.8 114 12 45 163 1180 1/2-28UNEF

11.9 114 12 45 163 1190


订货编号 ·Order code
φ ·dc 槽长If 柄径ds 柄长Is 总长lo 尺寸编号 丝锥推荐Recommended Tap




公差m7 公差h6 Dimension Code 切削丝锥Cutting Tap 挤压丝锥Forming Tap
12 114 12 45 163 1200 M14×2

12.1 133 14 45 182 1210


12.2 133 14 45 182 1220 9/16-12UNC

12.3 133 14 45 182 1230


12.4 133 14 45 182 1240


12.5 133 14 45 182 1250 M14×1.5

12.6 133 14 45 182 1260


12.7 133 14 45 182 1270


12.8 133 14 45 182 1280


12.9 133 14 45 182 1290 9/16-18UNF

13 133 14 45 182 1300 M14x1 M14×2
13.1 133 14 45 182 1310


13.2 133 14 45 182 1320 9/16-24UNEF

13.3 133 14 45 182 1330


13.4 133 14 45 182 1340


13.5 133 14 45 182 1350


13.6 133 14 45 182 1360 5/8-11UNC

13.7 133 14 45 182 1370


13.8 133 14 45 182 1380


13.9 133 14 45 182 1390


14 133 14 45 182 1400 M16x2

14.1 152 16 48 204 1410


14.2 152 16 48 204 1420


14.3 152 16 48 204 1430


14.4 152 16 48 204 1440


14.5 152 16 48 204 1450 M16x1.55/8-18UNF

14.6 152 16 48 204 1460


14.7 152 16 48 204 1470


14.8 152 16 48 204 1480 5/8-24UNEF

14.9 152 16 48 204 1490


订货编号 ·Order code






φ ·dc 槽长If 柄径ds 柄长ls 总长lo 尺寸编号 丝锥推荐Recommended Tap




公差m7 公差h6 Dimension Code 切削丝锥Cutting Tap 挤压丝锥Forming Tap
15 152 16 48 204 1500 M16x1 M16x2
15.1 152 16 48 204 1510


15.2 152 16 48 204 1520


15.3 152 16 48 204 1530


15.4 152 16 48 204 1540


15.5 152 16 48 204 1550 M18x2.5

15.6 152 16 48 204 1560


15.7 152 16 48 204 1570


15.8 152 16 48 204 1580


15.9 152 16 48 204 1590


16 152 16 48 204 1600 M18x2

16.1 171 18 48 223 1610


16.2 171 18 48 223 1620


16.3 171 18 48 223 1630


16.4 171 18 48 223 1640


16.5 171 18 48 223 1650


16.6 171 18 48 223 1660 3/4-10UNC

16.7 171 18 48 223 1670


16.8 171 18 48 223 1680


16.9 171 18 48 223 1690


17 171 18 48 223 1700 M18x1

17.1 171 18 48 223 1710


17.2 171 18 48 223 1720


17.3 171 18 48 223 1730


17.4 171 18 48 223 1740


17.5 171 18 48 223 1750 M20x2.53/4-16UNF

17.6 171 18 48 223 1760


17.7 171 18 48 223 1770


17.8 171 18 48 223 1780 3/4-20UNEF

17.9 171 18 48 223 1790


订货编号 ·Order code
φ ·dc 槽长If 柄径ds 柄长Is 总长lo 尺寸编号 丝锥推荐Recommended Tap




公差m7 公差h6 Dimension Code 切削丝锥Cutting Tap 挤压丝锥Forming Tap
18 171 18 48 223 1800 M20x2

18.1 190 20 50 244 1810


18.2 190 20 50 244 1820


18.3 190 20 50 244 1830


18.4 190 20 50 244 1840


18.5 190 20 50 244 1850 M20x1.5

18.6 190 20 50 244 1860


18.7 190 20 50 244 1870


18.8 190 20 50 244 1880


18.9 190 20 50 244 1890


19 190 20 50 244 1900 M20x1

19.1 190 20 50 244 1910


19.2 190 20 50 244 1920


19.3 190 20 50 244 1930


19.4 190 20 50 244 1940


19.5 190 20 50 244 1950


19.6 190 20 50 244 1960 7/8-9UNC

19.7 190 20 50 244 1970


19.8 190 20 50 244 1980


19.9 190 20 50 244 1990


20 190 20 50 244 2000 M22x2


Applications:


Typical Applications:

Mold & Die Industry: Drilling hardened tool steel

Aerospace: Machining titanium and nickel-based alloys

Automotive: High-speed drilling of steel and aluminum parts

Medical & Electronics: Micro-hole drilling and precision parts manufacturing


Customization:


Product Customization Services for the Solid Carbide Precision Drill:

Brand Name: ARNOLD

Place of Origin: China

Certification: ISO9001:2000

Minimum Order Quantity: 2pc

Price: negotiable

Delivery Time: 7-10 days

Supply Ability: 1000000 Piece/Pieces per Month

Shank Type: Cylindrical

Usage: General High Speed Cutting

Shank: Round Shank

Standard: ISO, DIN

Precision: High Precision
