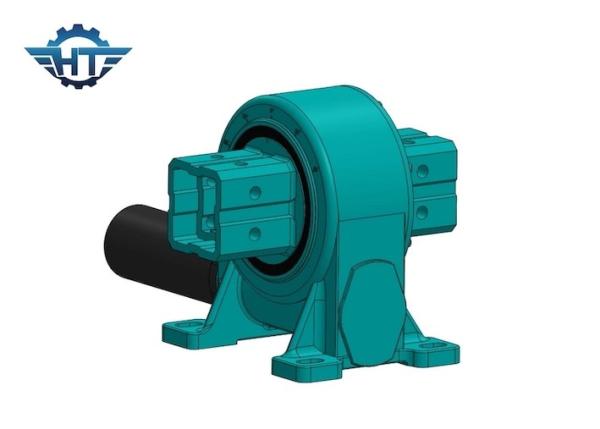

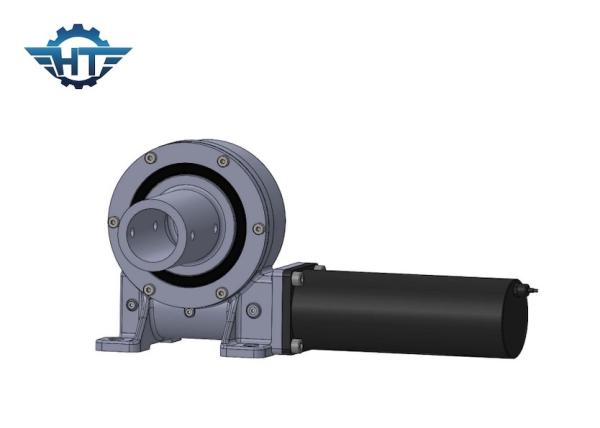

Single Axis Solar Tracker Slew Drive For High Precision Tracking Energy
Single Axis Solar Tracker Slew Drive For High Precision Tracking Energy
Single Axis Solar Tracker Slew Drive For High Precision Tracking Energy
Single Axis Solar Tracker Slew Drive For High Precision Tracking Energy
Specifications
Brand Name :
HangTuo
Model Number :
VE5
Certification :
CE, ISO9001
Place of Origin :
Changzhou, China
MOQ :
1 piece
Price :
USD 100~1100/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Power Supply :
24VDC
Type :
Singe Axis
Output Torque :
533 Nm
Output Speed :
0.065 RPM
Feature :
Double Envelop
Usage :
High Precision Tracking Solar Energy
Protect Feature :
IP66
Description

Small Size Single Axis Solar Tracker Slew Drive For High Precision Tracking Solar Energy

Vertical Type worm gear Small Slewing Drive​ Description

The slewing drive is the best solution for any occasion where need for full-cycle rotation and variable speed requirements. It can provide larger torque power transmission, higher accuracy and it has compact structure. Enclosed vertical single axis vslewing drive can realize the movement in vertical directions, tracking the sun from east to west. Usually apply to the horizontal single axis solar tracking systems or some machinery equipment with similar working condition.

VE worm gear means vertical installation slewing drive, it has IP66 protection. It mainly apply to the high working condition requirement for dust proof, rain-proof and anti-corrosion occasion. It has the advantage of saving equipment space, maximum load capacity, compact design, and extensive service life and reduced maintenance costs.

Performance Data

Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251

Application

Slewing drive is a perfect product for the application which requires rotational torque strength.

Slew Drive For Solar: it is designed in solar photovoltaic panel rotation and improves power generation efficiency. Single axis & dual axis solar tracking solutions are available.

For wind generators: Slewing drives are used to rotate the pedestal in wind turbines
For Construction Machinery Application: widely applied on mounted truck crane, aerial working platform, dock crane, timber grab
For Industry Market: Automation/assembly line, robotic arm
For Satellite: slew drive can be used for space communications and global positioning systems in satellite dish
