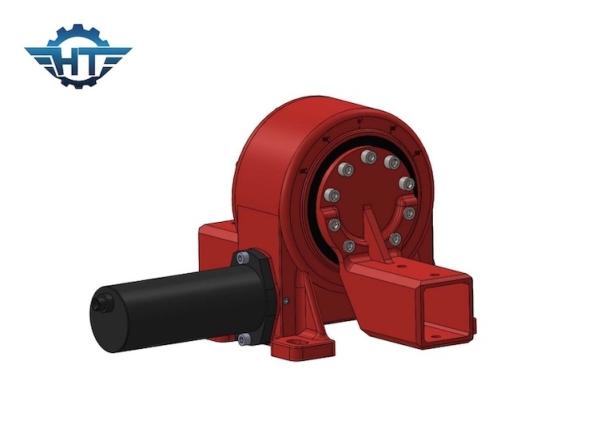

Single Axis Slew Drive With Electric Motor PV Solar Tracking System
Single Axis Slew Drive With Electric Motor PV Solar Tracking System
Single Axis Slew Drive With Electric Motor PV Solar Tracking System
Single Axis Slew Drive With Electric Motor PV Solar Tracking System
Specifications
Brand Name :
HangTuo
Model Number :
VE9"
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 248~380/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Model :
9 inch
Self-lock :
Yes
Certificate :
ISO9001,CE
Warranty :
5~10 years
Material :
QT
Application :
PV Solar Tracking System
Color :
RAL 6001
Accuracy :
≤0.1
Description

Single Axis Slew Drive With Electric Motor 30 Years Field Life PV Solar Tracking System

Single Axis Slew Drive Description

The single axis slewing drive is a full-cycle rotary reduction transmission mechanism integrated with a driving power source. The part makes it a general-purpose reduction transmission mechanism that integrates the functions of rotation, deceleration, and having a simple structure and convenient manufacture and maintenance at the same time.

Performace of VE Series

Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251

Features

Realize unlimited circumferential rotation and speed reduction

Withstand larger axial force, radial force and overturning force

High accuracy, compact structure and large carrying capacity.

Applications

Slewing drive application are usually found in such as: wind turbines, heavy load transporters, solar trackers, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables.

Product tags

slewing drive for solar tracking system

,

solar tracker slew drive

,

slew drive for solar tracker
