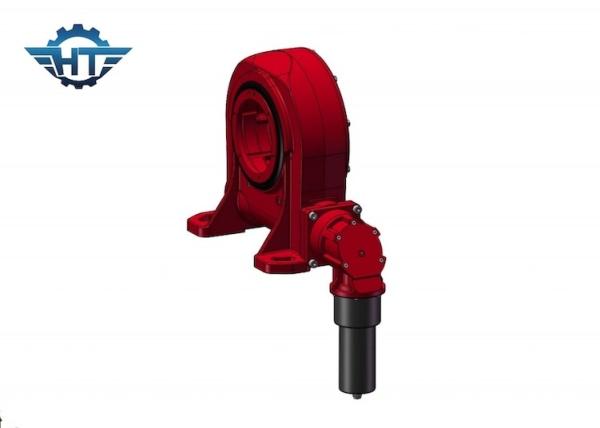

Vertical Single Axis Worm Gear Slew Drive For Outdoor Solar Tracking System
Vertical Single Axis Worm Gear Slew Drive For Outdoor Solar Tracking System
Vertical Single Axis Worm Gear Slew Drive For Outdoor Solar Tracking System
Vertical Single Axis Worm Gear Slew Drive For Outdoor Solar Tracking System
Specifications
Brand Name :
HangTuo
Model Number :
VE6
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 280~330/ pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
15~45 days
Packaging Details :
plywood box
Model :
6 inch
Gear Ratio :
51:1
Efficiency :
40%
Precise :
≤0.1°
Planetary Gearbox :
Electric Motor
Installation :
Vertical Mounted
Application :
Solar Tracking System
Color :
As Requested
Description

Vertical Single Axis Worm Gear Slew Drive For Outdoor Long Life Solar Tracking System

Worm Gear Slew Drive Description

The enclosed slewing drive is widely used in the case of relatively high working conditions which need dustproof, rainproof, anti-corrosion and other occasions with high requirements for the slewing structure. The IP grade reaches IP66.

Data Sheet of VE Model Slewing Drive

Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251

Feathures

Self-locking gearset.

Available with 24V/12V directly mounted planetary geared motors.

Higher wear-resistance of worm gear drive, which can load strong output torque and tilting moment torque with the well performance of stability and reliability.

Available for higher tracking precise field.

Applications

The worm gear slewing drive can be applied in solar energy such us PV tracking system, CSP, wind turbines, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, diggers, automotive lifts and wind turbines, dishes, satellite antenna etc.

Product tags

slew drive for solar tracker

,

slewing drive for solar tracking system

,

solar tracker slew drive
