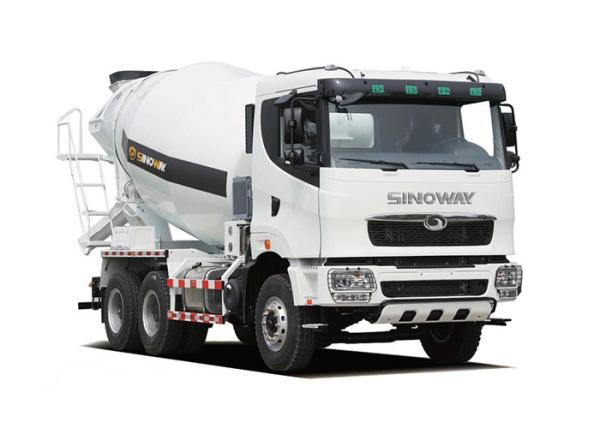

SWCM64H09 Concrete Mixer Machine 9 CBM Cement and Concrete Mixer Truck
SWCM64H09 Concrete Mixer Machine 9 CBM Cement and Concrete Mixer Truck
Specifications
Brand Name :
SINOWAY
Model Number :
SWCM64H09
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Engine :
SW6D18 340 31
Rated power :
250KW
Rated speed :
1900rpm
Kerb mass :
14000kg
Pay-loading capacity :
15000kg
Geometric volume of mixing drum :
15.7m³
Description

Concrete Mixer Machine 9 CBM Cement and Concrete Mixer Truck With 340HP Power

Engine
Model SINOWAY
Type Mechanical, four-stroke, water-cooled, in-line, four valve, direct-injection
Max. power 250kw(340hp)/1900rpm
Max. torque 1660N.m/1100-1400r/min.
Number of cylinders 6
Bore x stroke 118 x 150mm
Displacement 9.84L
Main Technical Specification
Kerb mass 14000kg
Pay-loading capacity 15000kg
G.V.W. 29000kg
Max. travelling speed 90km/h
Min. turning radius 8m
Gradeability 30%
Approach angle 30°
Departure angle 24°
Ground clearance 255mm
Fuel tank capacity 320L (galvanized steel)
Dimensions
Overall size (L x W x H) 9250 x 2500 x 3980mm
Wheelbase 3600 + 1350mm
Tread (F/R) 2065/1860/1860mm
Transmission System
Mechanical type with servo and synchronizer, 9 forward & 1 reverse
Ratio
Forward 15.49, 12.07, 8.35, 5.67, 4.07, 2.96, 2.05, 1.39, 1,00
Reverse 14.19
Mixer Drum
Geometric volume of mixing drum 15.7m³
Effective capacity 9m³
Rotation speed 0-15rpm
Feeding speed ≥ 2.7³/min.
Discharging speed ≥ 1.2³/min.
Residue rate ≤ 1.0%
Loading rate 60.0%
Inclination of mixing drum 13.5°
Materials for mixing drum 16MnCu
Model / brand /origin of pump A4VTG90 / Rexroth / Germany
Model / brand /origin of reducer P4300 / ZF / Germany
Axle and Tyre
Front axle Stub axle with double T-cross section
Rear axle Double reduction with hub reduction and final drive
Ratio 5.26
Tyre size 12R22.5
Clutch And Brake
Single-plate dry coil-spring clutch, hydraulically operated with air assistance
Service brake Full air brake, dual circuit
Parking brake Spring actuator at rear wheels
Auxiliary brake Exhaust brake
Suspension
Front suspension Tapered leaf spring 09 semi-elliptic leaf spring
Rear suspension Tapered leaf spring 12 semi-elliptic leaf spring
Steering System
Driving position Left hand drive only
Type Re-circulation ball with integral power assisted by oil
Cab
SINOWAY F14 cab with A/C

SWCM64H09 Concrete Mixer Machine 9 CBM Cement and Concrete Mixer Truck
