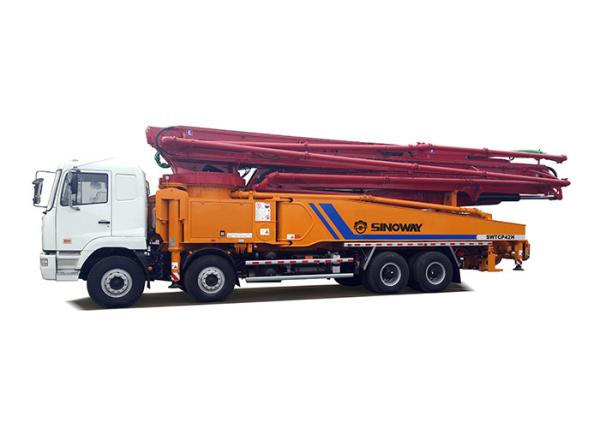

REXROTH Components Truck Mounted Concrete Pump 42m Distributing Height 410HP Power
REXROTH Components Truck Mounted Concrete Pump 42m Distributing Height 410HP Power
Specifications
Brand Name :
SINOWAY
Model Number :
SWTCP42H
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Engine model :
SW6D28.380.30
Rated power :
301kw/1900rpm
Max. distributing radius :
37.58m
Max. distributing height :
41.58m
Max. distributing depth :
29.8m
Main Components :
REXROTH
Description

42m Distributing Height 410HP Power REXROTH Components Truck Mounted Concrete Pump

Pumping System 　
Output in theory 170m³/h
Max. Pumping pressure 7.5MPa
Hopper volume 600L
Loading height 1400mm
Distributor valve type S valve
Rated work pressure 32Mpa
Pumping frequency 24min-1
Concrete cylinder bore and stroke Φ260×2200mm
Hydraulic cylinder bore and stroke Φ160×2200mm
Max. Aggregate size 40mm
Water pump pressure 4Mpa
The type of hydraulic system Closed type,high pressure pumping, electric controlling
Chassis And Whole Vehicle 　
Max. travelling speed 96km/h
Drive model 8×4
Engine make SW6D28.380.30
Rated power 301kw
Rated speed 1900rpm
Max. torque 1970N.m/1100~1450rpm
Displacement 11.81L
Curb weight 34000(10800+23200)kg
Wheel base 　
Axle1, Axle2 1850mm
Axle2, Axle3 4605mm
Axle3, Axle4 1310mm
Boom 　
Max. distributing radius 37.58m
Max. distributing height 41.58m
Max. distributing depth 29.8m
Height of boom when stretched 8025mm
Distance between front landing legs 8734mm
Distance between rear landing legs 8808mm
Distance between front and rear landing legs 8845mm
Pump pipe diameter 125mm
Tail hose length 3000mm
Rotary angle of boom 365°
Boom section 5
Rotary angle of each boom section 90°/180°/180°/180°/270°
Boom length 8830/7630/7180/6970/6970mm
Main Components 　
Arm support pump Germany REXROTH
Oil pump Germany REXROTH
Balance valve Germany HAWE
Solenoid valve USA EATON
Hydraulic valve USA EATON
Multiple valve Germany HAWE
Sealing element USA PARKER
Connector Germany EMB
Hose Italy MANULI
Proportional multiway valve Germany HAWE
Wireless romote-control device Germany HBC
Dimension 　
Overall length 12600mm
Overall width 2495mm
Overall height 3990mm
Service Capacities 　
Fuel tank 400L
Water tank 600L
Hydraulic tank 600L
