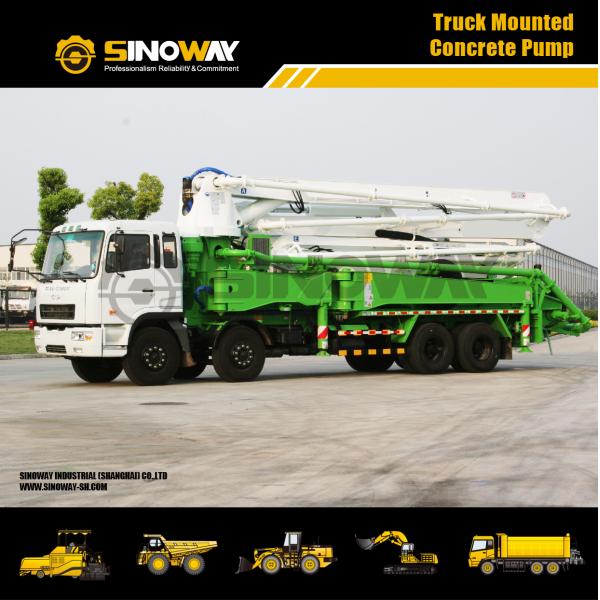

Medium Truck Mounted boom Concrete Pump Germany REXROTH 380HP Remote Control
Medium Truck Mounted boom Concrete Pump Germany REXROTH 380HP Remote Control
Specifications
Brand Name :
SINOWAY
Model Number :
SWTCP46H
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Engine model :
AVL Tech engine
Rated power :
279kw/1900rpm
Displacement :
10L
Curb weight :
34ton
Main Components :
Germany REXROTH
Hose :
Italy MANULI
Description

Germany REXROTH 380HP Remote Control 39m 42m 46m Medium Truck Mounted boom Concrete Pump Prices

Pumping System 　
Output in theory 150m³/h
Max. pumping pressure 9.0MPa
Hopper capacity 550L
Feeding height 1450mm
Distributing valve S pipe valve
Rated work pressure 36Mpa
Pumping frequency 22min-1
Chassis And Whole Vehicle 　
Max. travelling speed 96km/h
Drive model 8×4
Engine model AVL tech. engine
Rated power 279kw
Rated speed 1900rpm
Max. torque 2000N.m/1100-1450rpm
Displacement 10L
Curb weight 34000kg
Wheel base 　
Axle1, Axle2 1850mm
Axle2, Axle3 4605mm
Axle3, Axle4 1310mm
Boom 　
Max. distributing radius 40.93m
Max. distributing height 45.6m
Max. distributing depth 34.8m
Height of boom when stretched 10050mm
Distance between front landing legs 8082mm
Distance between rear landing legs 9082mm
Distance between front and rear landing legs 8750mm
Delivery pipe diameter 125mm
Tail hose length 3000mm
Rotary angle of boom 365°
Boom section 5
Rotary angle of each boom section 90/180/180/236/230°
Boom length 8900/7900/7500/8300/8300mm
Main Components 　
Arm support pump Germany REXROTH
Oil pump A4VG180+125
Balance valve Germany HAWE
Solenoid valve USA EATON
Hydraulic valve USA EATON
Sealing element USA PARKER
Connector Germany EMB
Hose Italy MANULI
Proportional multiway valve Germany HAWE
Wireless romote-control device Germany HBC
Dimension 　
Overall length 12145mm
Overall width 2495mm
Overall height 3990mm
Service Capacities 　
Fuel tank 400L
Water tank 600L
Hydraulic tank 600L

Medium Truck Mounted boom Concrete Pump Germany REXROTH 380HP Remote Control
