Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine
Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine
Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine
Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine
Specifications
Place of Origin :
china
MOQ :
1 set
Price :
Negotiation
Delivery Time :
30 working days
Packaging Details :
Plywood case exporting standard
product name :
Full automatic bottle blowing machine
use :
Water
Control :
PLC Control
speed :
1600-1800BPH
Plastic Processed :
PET
Blow Moulding Type :
Stretch Blow Moulding
Description

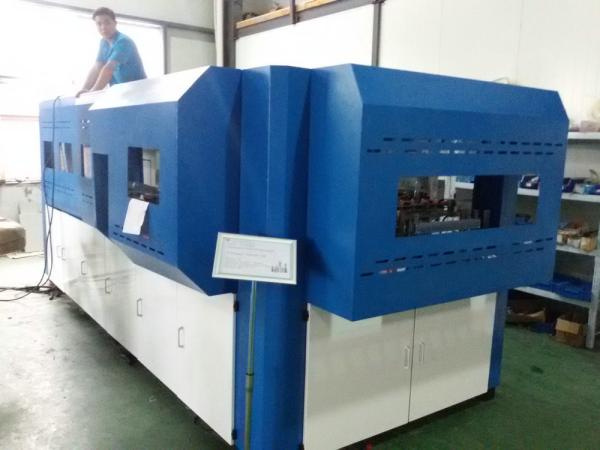

Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine

Description:

Full automatic bottle blowing machine is suitable for producing PET plastic containers and

bottles in all shapes. Bottle Blowing Machine is widely used to produce the carbonated bottle, mineral

water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc

Technical parameter

Name Item Unit Details
Blowing machine Dimension mm 1600*600*1610mm
Weight kg 500
Bottle volume (max) ml 2000
Bottle volume (min) ml 50
Bottle Neck Diameter (max) mm 40
Bottle Neck Diameter (min) mm 18
Body Diameter (max) mm 125
Body Height( max) mm 420
Number of Cavities mold 2
Production output pcs/h 1600-1800BPH
Clamping force T 5.7(56KN)
Mold thickness mm 200(max)
Mold width mm 360x390
Space between Tie-bars mm 120-220
Diameter of Tie-bars mm 63
Scope of Tie-bars mm 405
Mold stroke mm 160
Stretching stroke (max) mm 420
Working pressure Mpa 0.8-1.0Mpa
Blowing pressure Mpa 2.0-3.0Mpa
Voltage/Power V/KW 220V/1KW
Weight Kg 500

Pre-heater

 Dimension mm 1870*630*1450mm
Weight kg 260
Voltage/Power V/KW 380V/14KW

FAQ

Q1: Are you a trading company or a manufactory?

A1: We own a factory ourselves, and we can assure the quality we manufactured.

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.

Q3: When can I get my machine after I paid?

A3: We will deliver the machines on time as the date we agreed both side.

Q4: How can I install my machine when it arrives?

A4: We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.

About Us:

Zhejiang Jinben Machinery Manufacturing Co., Ltd., founded in 1995 with the area of 23,500㎡, is specialized in the design, research and development, production and sales of food and beverage machinery and equipment.

The main products and service are beverage filling production lines, milk yoghurt production lines, water production lines, water treatment equipment, sterilizing machines, filling machines, labeling machines, stainless steel tanks and series of packaging machinery and equipment. Our products not only sell well in China, but also sell over the world. The annual export volume is stable and shows continuous growth.

Based on the company philosophy of “implementing scientific management, creating excellent quality, and serving customers with integrity”, the company actively explores markets and provides quality products and perfect services to customers.

Sincerely welcome friends and customers come for business and let us develop together!
