Energy Saving Water Bottle Manufacturing Machine 380V 14KW High Adjusting Performance
Energy Saving Water Bottle Manufacturing Machine 380V 14KW High Adjusting Performance
Energy Saving Water Bottle Manufacturing Machine 380V 14KW High Adjusting Performance
Energy Saving Water Bottle Manufacturing Machine 380V 14KW High Adjusting Performance
Specifications
Place of Origin :
china
MOQ :
1 set
Price :
Negotiation
Delivery Time :
30 working days
Packaging Details :
Plywood case exporting standard
product name :
Automatic Bottle Blowing Machine
Bottle volume (max) :
2000ML
Control :
PLC Control
speed :
1600-1800BPH
Plastic Processed :
PET
Blow Moulding Type :
Stretch Blow Moulding
Description

Energy Saving Water Bottle Manufacturing Machine 380V 14KW High Adjusting Performance

Description:

1. Utilization of automatic central lubrication.

2. Compact space design for convenience of mold conversion, repairing, and maintenance.

3. Minimized transfer pitch for increasing heating efficiency and saving energy.

4. Swift exchange design for preform mandrels.

5. Optimized air flow in the oven for stable heating process.

6. Easy to adjust, exchange and access heating oven; Protection for preform thread against heating.

7. Intact rotating robot grip with linear guider for right access, rapid motion; reducing adjustment and maintenance time.

8. Electronic inspector for ejecting faulty preform and bottles.

9. Fast, safe, and accurate cam-controlled blowing wheel for providing the best bottles.

10. Precise control of blowing technique to produce less-weighted bottle.

Technical parameter

Name Item Unit Details
Blowing machine Dimension mm 1600*600*1610mm
Weight kg 500
Bottle volume (max) ml 2000
Bottle volume (min) ml 50
Bottle Neck Diameter (max) mm 40
Bottle Neck Diameter (min) mm 18
Body Diameter (max) mm 125
Body Height( max) mm 420
Number of Cavities mold 2
Production output pcs/h 1600-1800BPH
Clamping force T 5.7(56KN)
Mold thickness mm 200(max)
Mold width mm 360x390
Space between Tie-bars mm 120-220
Diameter of Tie-bars mm 63
Scope of Tie-bars mm 405
Mold stroke mm 160
Stretching stroke (max) mm 420
Working pressure Mpa 0.8-1.0Mpa
Blowing pressure Mpa 2.0-3.0Mpa
Voltage/Power V/KW 220V/1KW
Weight Kg 500

Pre-heater

 Dimension mm 1870*630*1450mm
Weight kg 260
Voltage/Power V/KW 380V/14KW

Competitive Advantage:

1. The bottle blowing machine adopts stable performance with advanced PLC.

2. Using the automatic perform uploader to save human cost

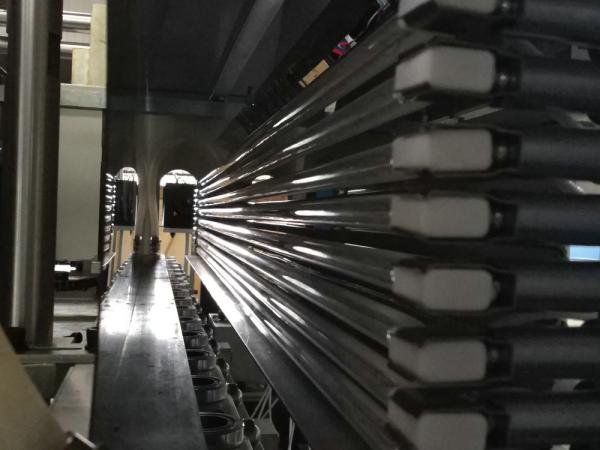

3. Preform self rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping

rate, increase the production.

4. High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could

adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.

5. High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect

safe environment, in case of the breakdown in certain procedure.

6. Introduce the FESTO air cylinder to avoid contamination and noise.
