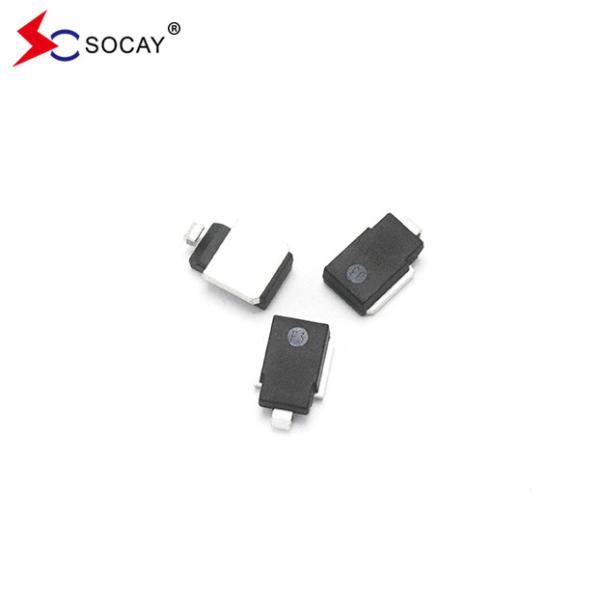

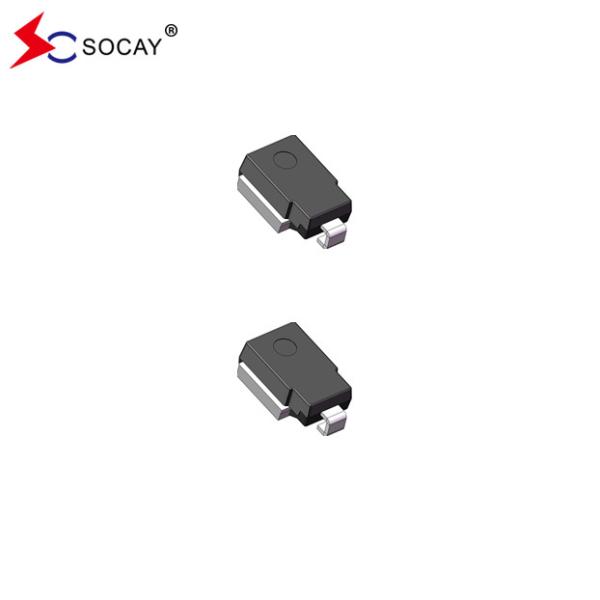

33V Surface Mount Circuit Protection Components TVS SM8S33CAG Automotive Parts
33V Surface Mount Circuit Protection Components TVS SM8S33CAG Automotive Parts
33V Surface Mount Circuit Protection Components TVS SM8S33CAG Automotive Parts
33V Surface Mount Circuit Protection Components TVS SM8S33CAG Automotive Parts
33V Surface Mount Circuit Protection Components TVS SM8S33CAG Automotive Parts
33V Surface Mount Circuit Protection Components TVS SM8S33CAG Automotive Parts
Specifications
Brand Name :
SOCAY
Model Number :
SM8S33CAG
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
500PCS
Price :
Negotiable
Delivery Time :
1-3weeks
Description :
Automotive parts
Package Type :
DO-218AB
Vr :
33V
Ir@Vr @25℃ :
5μA
Ir@Vr @175℃ :
150μA
Vbr@It (Min.) :
36.7V
Vbr@It (Max.) :
40.6V
It :
5mA
Vc@Ipp :
53.3V
Ipp :
124A
Description

33V Surface Mount Transient Voltage Suppressors SM8S33CAG, Suitable for High Reliability and Automotive Requirement

DATASHEET: SM8SXXG Series_v2309.1.pdf

Description:

TVS tubes are widely used for the protection of semiconductors and sensitive devices, usually for diode protection. They are characterised by their fast response time (PS level), small size, high transient pulse suppression power and low clamping voltage.

Material

Semiconductor materials,

Part Number

Working Peak

Reverse

Voltage VRWM

(V)

Breakdown

Voltage

VBR (V)

Test Current

IT

(mA)

Maximum Reverse Leakage IR @ VRWM

(µA)

Maximum

IR @ VRWM TJ=175℃

(µA)

Maximum Reverse Surge Current

IPP (A) ①

Maximum Clamping Voltage

VC @ IPP

(V)
Uni Bi Min. Max.
SM8S33AG SM8S33CAG 33.0 36.7 40.6 5.0 10 150 124 53.3

Notes:

1. Surge current waveform is defined at 10/1000μS waveform.

2. For all types maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per

minute maximum.

33V Surface Mount Circuit Protection Components TVS SM8S33CAG Automotive Parts

Application:

Automotive Protection. Car sytem

FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ ?
A: MOQ depend on the type of product, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
