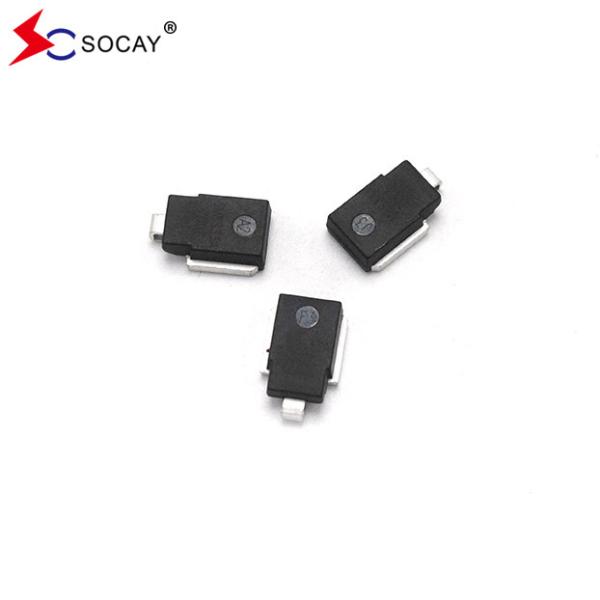

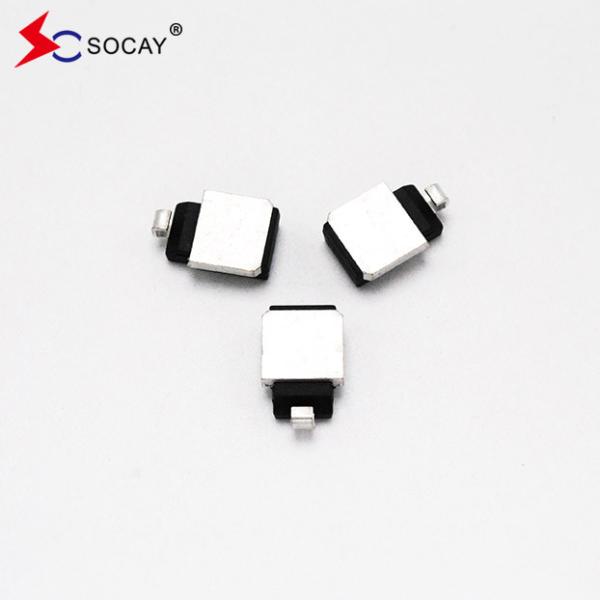

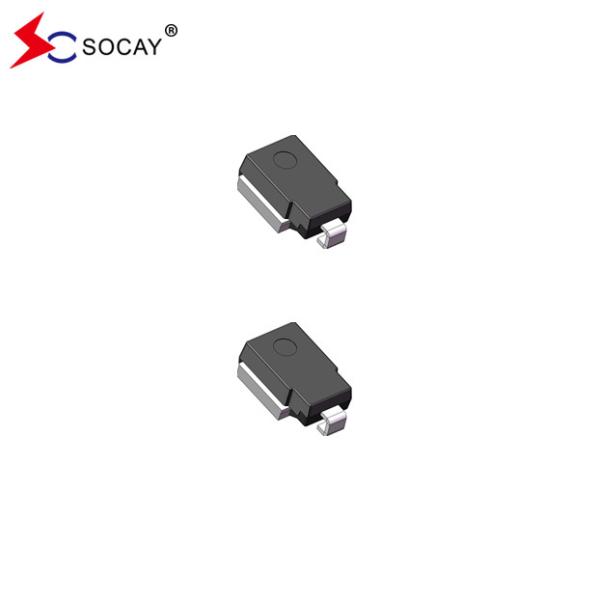

RoHS Compliant Circuit Protection Components SM8S20CAG Surface Mount TVS SMD Diode

DATASHEET: SM8SXXG Series_v2309.1.pdf

Description:

The SM8S series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features:

Product electrical parameters:
1. Power: 6600W
2. Working voltage: 10.0-43.0V
3. Current: 388-95.1A
4. Provide one-way/two-way polarity
5. Low forward voltage drop and low leakage current
6. High surge capability
7. Junction passivation optimization design passivation anisotropic rectification technology
8. TJ = 175℃, suitable for high reliability and automotive requirements
9. Comply with ISO7637-2 surge specifications (test conditions change)
10. Comply with MSL level 1, according to J-STD-020, the maximum LF peak value is 245℃
11. Comply with AEC-Q101 requirements

Application:

Automotive Protection.

Typical applications of SM8S series automotive grade TVS diodes:
1. Adding TVS diodes to signal and power lines can prevent microprocessors or microcontrollers from malfunctioning due to instantaneous surges, such as electrostatic discharge effects, AC power surges and switching power supply noise.
2. The electrostatic discharge effect can release pulses of more than 10,000V and 60A, and can last for 10ms; while ordinary TTL devices will be damaged when encountering 10V pulses of more than 30ms. TVS diodes can effectively absorb pulses that can cause device damage and eliminate interference caused by switching between buses.
3. Placing the TVS tube between the signal line and the ground can prevent the data and control bus from being affected by unnecessary noise.
