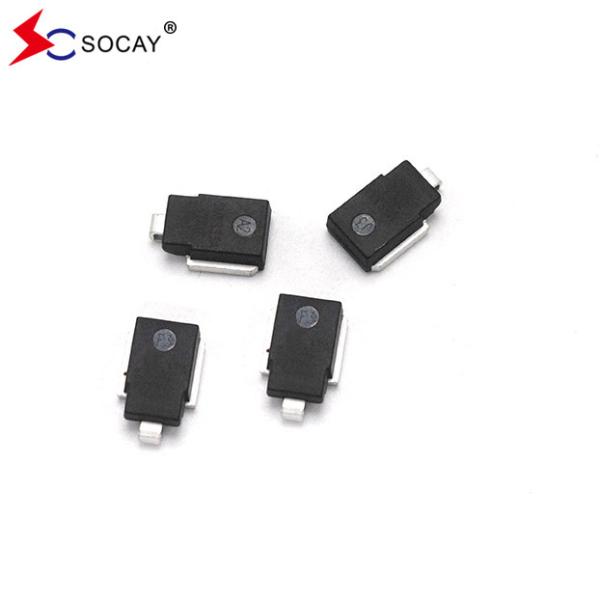

6600W Passive Auto Electric Components SM8S30CAG TVS Bidirectional
6600W Passive Auto Electric Components SM8S30CAG TVS Bidirectional
Specifications
Brand Name :
SOCAY
Model Number :
SM8S30CAG
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
500PCS
Price :
Negotiable
Delivery Time :
1-2weeks
Packaging Details :
bulk
Key words :
Auto Grade components
footprint :
DO-218AB
Function :
Protection Circuit Board
Pattern :
Passive Component
Vr :
30V
Ir@Vr @25℃ :
5μA
Ir@Vr @175℃ :
250μA
Vbr@It (Min.) :
33.3V
Vbr@It (Max.) :
36.8V
It :
5mA
Vc@Ipp :
48.4V
Ipp :
136A
Description

6600W TVS Bi-Directional TVS SM8S30CAG Transient Voltage Suppressors

DATASHEET: SM8SXXG Series_v2309.1.pdf

6600W Passive Auto Electric Components SM8S30CAG TVS Bidirectional

Description:
The SM8S series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Working Standard
. Connected in parallel to the circuit, when the device is inactive, the resistance value is high and can be considered as an open circuit with little or no effect on the circuit. When there is an abnormal pulse, the resistance value drops instantly and the current is released momentarily. When the abnormal high voltage disappears, it returns to its high resistance state and the circuit works normally.

Part Number

Working Peak

Reverse

Voltage VRWM

(V)

Breakdown

Voltage

VBR (V)

Test Current

IT

(mA)

Maximum Reverse Leakage IR @ VRWM

(µA)

Maximum

IR @ VRWM TJ=175℃

(µA)

Maximum Reverse Surge Current

IPP (A) ①

Maximum Clamping Voltage

VC @ IPP

(V)

UniBi Min.Max.
SM8S30AGSM8S30CAG30.033.336.85.01015013648.4
SM8S33AGSM8S33CAG33.036.740.65.01015012453.3
SM8S36AGSM8S36CAG36.040.044.25.01015011458.1
SM8S40AGSM8S40CAG40.044.449.15.01015010264.5
SM8S43AGSM8S43CAG43.047.852.85.01015095.169.4
SM8S45AGSM8S45CAG45.050.055.35.01015090.872.7
SM8S48AGSM8S48CAG48.053.358.95.01015085.377.4
SM8S51AGSM8S51CAG51.056.762.75.01015080.182.4
SM8S54AGSM8S54CAG54.060.066.35.01015075.887.1
SM8S58AGSM8S58CAG58.064.471.25.01015070.593.6
SM8S60AGSM8S60CAG60.066.773.75.01015068.296.8
SM8S64AGSM8S64CAG64.071.178.65.01015064.1103.0
SM8S70AGSM8S70CAG70.077.886.05.01015058.4113.0
SM8S75AGSM8S75CAG75.083.392.15.01015054.5121.0
SM8S78AGSM8S78CAG78.086.795.85.01015052.4126.0
SM8S85AGSM8S85CAG85.094.4104.05.01015048.2137.0

Notes:
1. Surge current waveform is defined at 10/1000μS waveform.
2. For all types maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per
minute maximum.




SOCAY SM8S Transient suppression diode application:
Traffic recorder
ADAS Advanced Driver Assistance System
OBD vehicle diagnostic system
DMS Driver condition monitoring Department
Car LED
Cigarette lighter
Car audio
