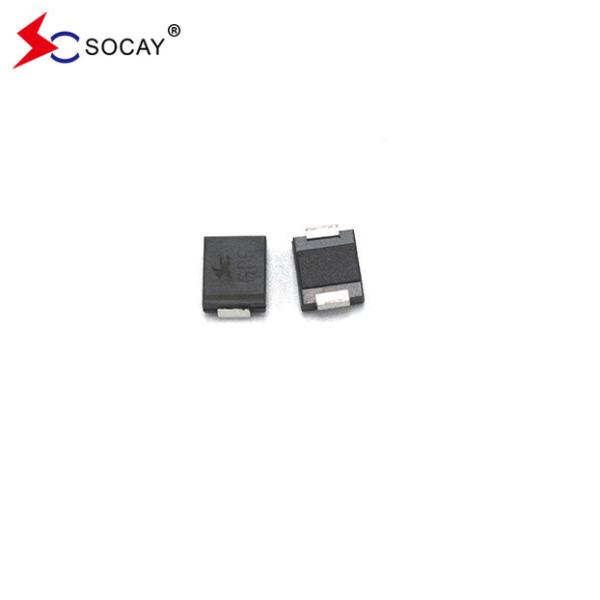

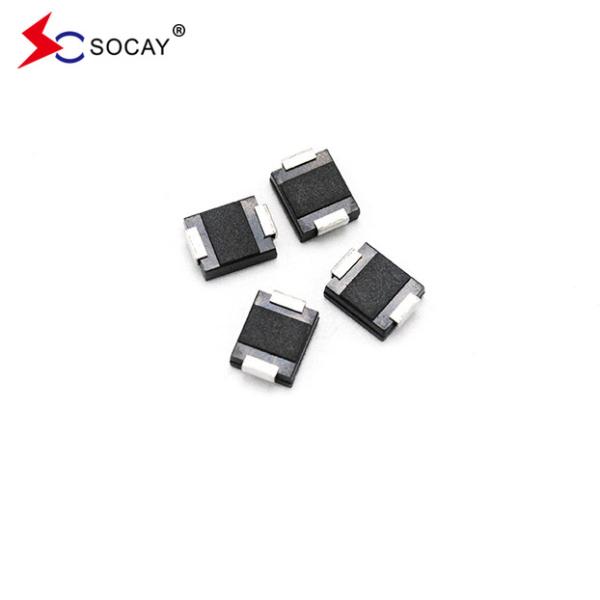

SMDJ75A TVS Diodes Protection Circuit Board PCB Device Passive Components
SMDJ75A TVS Diodes Protection Circuit Board PCB Device Passive Components
SMDJ75A TVS Diodes Protection Circuit Board PCB Device Passive Components
SMDJ75A TVS Diodes Protection Circuit Board PCB Device Passive Components
Specifications
Brand Name :
SOCAY
Model Number :
SMDJ75A
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
3000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Product Name :
TVS Diodes
Package Type :
DO-214AB/SMC
Vrwm :
70V
Vbr@It (Min.) :
77.8V
Vbr@It (Max.) :
86V
It :
10mA
Vc@Ipp :
113V
Ipp :
26.55A
Ir@Vrwm :
1000μA
Storage Temperature Range :
-55 to +150 ℃
package size :
Surface Mount
Description

SMDJ75A TVS Diodes Protection Circuit Board PCB Device Passive Components

SMDJ75A TVS Diode DATASHEET: SMDJ_v2107.1 .pdf

SMDJ75A TVS Diode Description:

The SMDJ75A TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only is 3.5/5.0 Volt.

SMDJ75A TVS Diode Features:

  • SMDJ75A TVS Diode is suitable for surface mounted applications in order to optimize board space
  • SMDJ75A TVS Diode has Low leakage
  • SMDJ75A TVS Diode is a Unidirectional unit
  • SMDJ75A TVS Diode is Glass passivated junction
  • SMDJ75A TVS Diode has Low inductance
  • SMDJ75A TVS Diode has Excellent clamping capability
  • SMDJ75A TVS Diode 's Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01% is 3000W
  • SMDJ75A TVS Diode 's Fast response time: typically less than 1.0ps from 0 Volts to VBR min
  • SMDJ75A TVS Diode 's Typical IR less than 5μA above 12V.
  • High Temperature soldering: 260°C/40 seconds at terminals
  • Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT
  • Plastic package has Underwriters Laboratory Flammability 94V-0
  • Matte tin lead–free Plated
  • SMDJ75A TVS Diode 's Halogen free and RoHS compliant
  • Typical failure mode is short from over-specified voltage or current
  • Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
  • SMDJ75A TVS Diode 's IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
  • ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
  • EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
