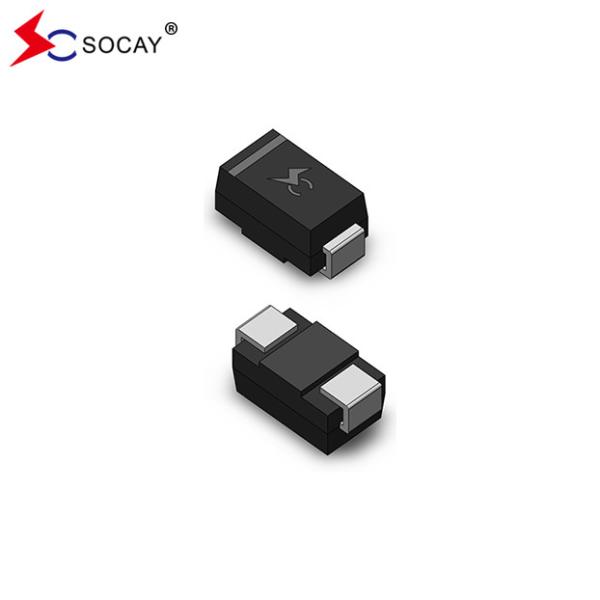

SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage
SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage
SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage
SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage
Specifications
Brand Name :
SOCAY
Model Number :
SMAJ6.5A
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
5000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Product Name :
TVS Diodes
Package Type :
DO-214AC/SMA
Vrwm :
6.5V
Vbr@It (Min.) :
7.22V
Vbr@It (Max.) :
7.98V
It :
10mA
Vc@Ipp :
11.2V
Ipp :
35.71A
Ir@Vrwm :
500μA
Storage Temperature Range :
-55 to +150 ℃
Description

SOCAY Transient Voltage Suppressor SMAJ6.5A, SMA Package, Excellent Clamping Capability​

DATASHEET: SMAJ_v2207.1.pdf

Part Number Marking

Reverse

Stand-Off

Voltage VRWM(V)

Breakdown

Voltage VBR (V)

@IT

Test

Current

IT (mA)

Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi MIN MAX
SMAJ6.5A SMAJ6.5CA AK WK 6.5 7.22 7.98 10 11.2 35.71 500
