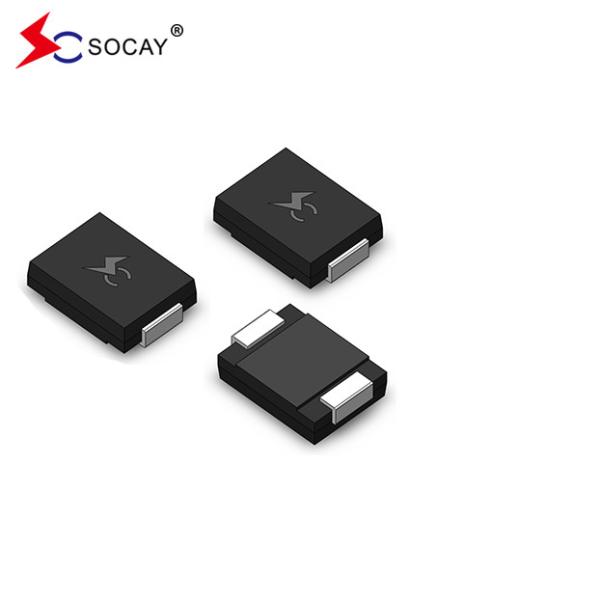

Wholesales Components Diodes TVS DIODE 15VWM 24.4VC DO214AB SMDJ SMDJ15CA
Wholesales Components Diodes TVS DIODE 15VWM 24.4VC DO214AB SMDJ SMDJ15CA
Specifications
Brand Name :
SOCAY
Model Number :
SMDJ15CA
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
3000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
SMDJ15CA Name :
TVS Diodes
SMDJ15CA Package Type :
DO-214AB/SMC
SMDJ15CA Vrwm :
15V
Vbr@It (Min.) :
16.7V
Vbr@It (Max.) :
18.5V
SMDJ15CA It :
10mA
SMDJ15CA Vc@Ipp :
24.4V
SMDJ15CA Ipp :
122.85A
Ir@Vrwm :
1000μA
SMDJ15CA Storage Temperature Range :
-55 to +150 ℃
Description

Wholesales Components Diodes TVS DIODE 15VWM 24.4VC DO214AB SMDJ SMDJ15CA

DATASHEET: SMDJ_v2107.1 .pdf

Components TVS Diodes Maximum Ratings (TA=25℃ unless otherwise noted):

Components TVS Parameter Symbol Components TVS Value Unit
Components TVS Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2)

PPPM

3000

Watts
Components TVS Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3) IPP See Next Table Amps
Components TVS Power Dissipation on Infinite Heat Sink at TL=75°C PM(AV) 6.0 Watt
Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 300 Amps
Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only (Note 4)

VF

3.5/5.0

Voltage
Components TVS Operating junction and Storage Temperature Range. TJ , TSTG -55 to +150 ℃

Notes:

1. Non-repetitive current pulse, per Fig. 3 and derated above TA = 25℃ per Fig. 2.

2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.

4. VF < 3.5V for VBR < 200V and VF< 6.5V for VBR > 201V.
