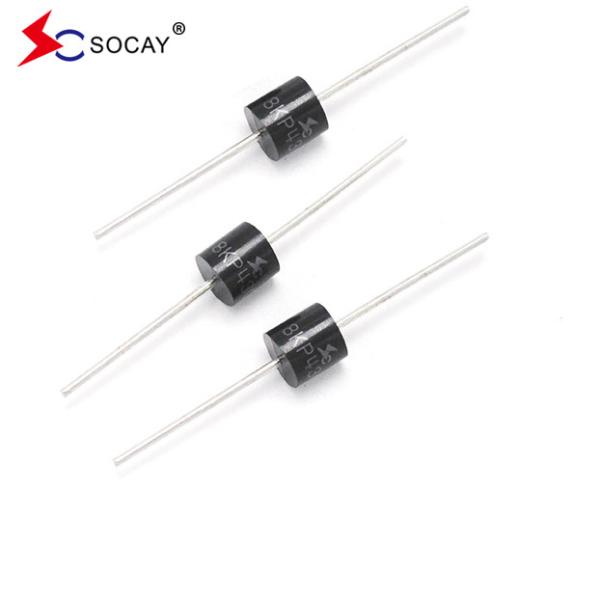

8000W High-power 8KP Series TVS Diode 8KP22A Axial Lead Transient Voltage Suppressor
8000W High-power 8KP Series TVS Diode 8KP22A Axial Lead Transient Voltage Suppressor
Specifications
Brand Name :
SOCAY
Model Number :
8KP22A
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
250PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Product Name :
TVS Diodes
Package Type :
R6/P600
Vrwm :
22.0V
Vbr@It (Min.) :
24.4V
Vbr@It (Max.) :
26.9V
It :
5mA
Vc@Ipp :
35.5V
Ipp :
225A
Ir@Vrwm :
5μA
Storage Temperature Range :
-55 to +150 ℃
Description

8000W High-power 8KP Series TVS Diode 8KP22A Axial Lead Transient Voltage Suppressor

DATASHEET: 8KP Series_v2309.1.pdf


Description:
The 8KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Part Number

Reverse

Stand-Off

Voltage VRWM (V)

Breakdown

Voltage VBR (V) @IT

Test

Current

IT

(mA)

Maximum

Clamping

Voltage VC (V) @IPP

Maximum

Peak Pulse

Current

IPP (A)

Maximum

Reverse

Leakage IR (μA) @VRWM

UniBi MINMAX
8KP18A8KP18CA1820.022.1529.2273.95
8KP20A8KP20CA2022.224.5532.4246.95
8KP22A8KP22CA2224.426.9535.52255
8KP24A8KP24CA2426.729.5538.92065
8KP30A8KP30CA3033.336.8548.41655
8KP33A8KP33CA3336.740.6553.31505
8KP36A8KP36CA3640.044.2558.11485
8KP40A8KP40CA4044.449.1564.51245
8KP43A8KP43CA4347.852.8569.41155
8KP45A8KP45CA4550.055.3572.71105
8KP48A8KP48CA4853.358.9577.4103.45
8KP51A8KP51CA5156.762.7582.497.15




Features:

u Glass passivated chip junction in P600 Package

u Low leakage

u Uni and Bidirectional unit

u Excellent clamping capability

u 8000W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%

u Fast response time

u RoHS compliant


Applications:

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications .

ParameterSymbolValueUnit
Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2)PPPM8000Watts
Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3)IPPSee Next TableAmps
Power Dissipation on Infinite Heat Sink at TL=75°CPM(AV)8.0Watt
Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3)IFSM500Amps
Operating junction and Storage Temperature Range.TJ , TSTG-55 to +150°C



8000W High-power 8KP Series TVS Diode 8KP22A Axial Lead Transient Voltage Suppressor


8000W High-power 8KP Series TVS Diode 8KP22A Axial Lead Transient Voltage Suppressor

8000W High-power 8KP Series TVS Diode 8KP22A Axial Lead Transient Voltage Suppressor

8000W High-power 8KP Series TVS Diode 8KP22A Axial Lead Transient Voltage Suppressor
8000W High-power 8KP Series TVS Diode 8KP22A Axial Lead Transient Voltage Suppressor


  • SOCAY owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property.
  • SOCAY reserves the right to make changes without further notice to any products herein.
  • SOCAY makes no warranties, representations or warranties as to the fitness of its products for any particular purpose, and disclaims any liability.
  • The parameters provided in the SOCAY datasheet specification may vary from application to application, and the actual performance may vary over time. All operating parameters must be verified by the customer's technical expert before application.
  • Any and all responsibilities and liabilities are disclaimed if any item under this notice of warning is not complied with.
