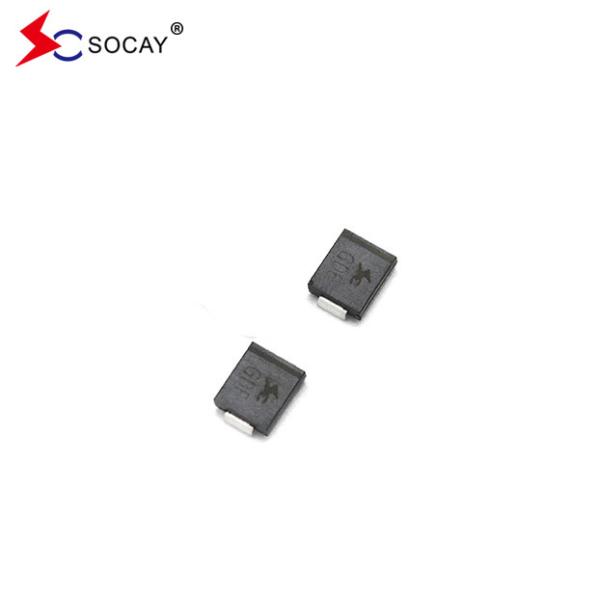

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A
Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A
Specifications
Brand Name :
SOCAY
Model Number :
SMD64A
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
3000PCS
Price :
Negotiable
Supply Ability :
1000000pcs
Delivery Time :
5-8 work days
Product Name :
TVS Diodes
Package Type :
DO-214AB/SMC
Vrwm :
64V
Vbr@It (Min.) :
71.1V
Vbr@It (Max.) :
78.6V
It :
1mA
Vc@Ipp :
103V
Ipp :
29.13A
Ir@Vrwm :
1000μA
Storage Temperature Range :
-55 to +150 ℃
package size :
Surface Mount
Brand :
SOCAY
Description

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A​

DATASHEET: SMDJ_v2107.1 .pdf

The SMD TVS Diode SMDJ64A​ is Uni-directional unit, its leakage is very low, TVS Diode is For surface mounted applications in order to optimize board space. It is Glass passivated junction, Inductance is low. TVS Diode has Excellent clamping capability.

TVS Diode Electrical Characteristics (TA=25℃ unless otherwise noted) :

TVS diode Part Number

TVS diode

Marking

 Reverse Stand-Off Voltage VRWM (V)

Breakdown Voltage VBR (V)

@IT

Test Current IT

(mA)

Maximum Clamping Voltage VC

@IPP (V)

Maximum Peak Pulse Current

IPP (A)

Maximum Reverse Leakage IR

@VRWM (μA)
Uni Bi Uni Bi MIN MAX
SMDJ45A SMDJ45CA PFV DFV 45.0 50.00 55.30 1 72.7 41.27 5
SMDJ48A SMDJ48CA PFX DFX 48.0 53.30 58.90 1 77.4 38.76 5
SMDJ51A SMDJ51CA PFZ DFZ 51.0 56.70 62.70 1 82.4 36.41 5
SMDJ54A SMDJ54CA RGE DGE 54.0 60.00 66.30 1 87.1 34.44 5
SMDJ58A SMDJ58CA PGG DGG 58.0 64.40 71.20 1 93.6 32.05 5
SMDJ60A SMDJ60CA PGK DGK 60.0 66.70 73.70 1 96.8 30.99 5
SMDJ64A SMDJ64CA PGM DGM 64.0 71.10 78.60 1 103.0 29.13 5

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64AFree Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A


Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A

Free Sample DO-214AB SMD TVS diode china supplier SMDJ series passive components SMDJ64A
