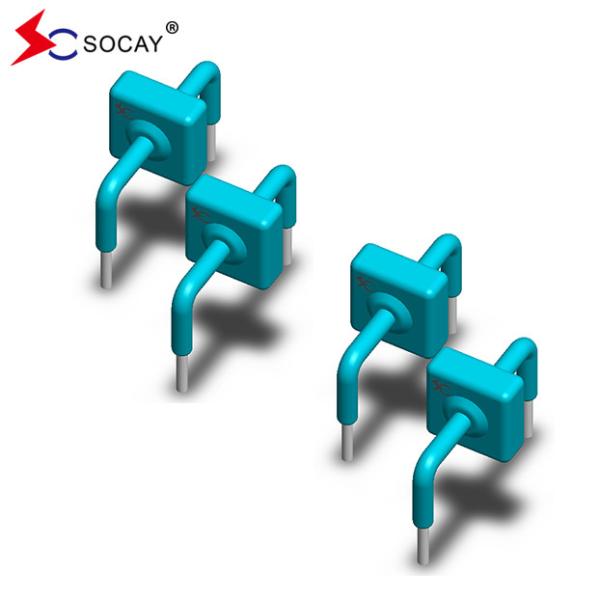

Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC
Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC
Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC
Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC
Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC
Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC
Specifications
Brand Name :
SOCAY
Model Number :
KA-042
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
5-8 work days
Product Name :
TVS Diodes
Package Type :
Radial Lead
Vac :
30V
Vdc :
42V
Vbr@It (Min.) :
47V
It :
10mA
Ipp :
3KA
Vc@Ipp :
77V
Ir@Vdc :
20μA
Storage Temperature Range :
-55 to +150 ℃
Description

Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC

DATASHEET: KA_v211.1.pdf


Description:
The KA Series of high current transient suppressors have been specially designed for use in A.C. line protection and any demanding applications (AC or DC). Any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level. They can also be connected in series and/or parallel to create very high capacity protection solutions.

Part Number

Reverse Stand-Off

Voltage

Breakdown Voltage

Test

Current

Current

Rating

Maximum

Clamping

Voltage

Reverse

Leakage

VAC(V)VDC(V)

VBR(V)

MIN.@IT

IT

(mA)

IPP 8/20μs (KA)

VC(V)

@IPP

IR (μA)

@VDC

KA-0128.512.8141032820
KA-0151115171033020
KA-0201420221034020
KA-0251725281035020
KA-0302130331036020
KA-0423042471037720
KA-05840586410311020
KA-06645667010312520
KA-07654768510314020
KA-1007210011010316520
KA-13310013314710322020
KA-17013017018010326020
KA-19014519020010329020
KA-20015020022210333020
KA-24018024025010334020
KA-38027538040110352020
KA-43031043044010332520



Features:

  • Axial lead terminals
  • High current transient suppressor
  • Excellent Clamping Capability
  • Glass Passivated Junction
  • Bi-directional
  • Low Slope Resistance
  • Repetition Rate (duty cycle):0.01%
  • Hazardous Substances Free
  • RoHS Compliant
  • High Temperature soldering: 260°C/10 seconds at terminals
  • Epoxy Encapsulated
  • Silver plated leads
  • Solderable per MIL-STD-202 Method 208



ParameterSymbolValueUnit
Operating junctionTJ-55 to +150°C
Storage Temperature RangeTSTG-55 to +150°C
Current Rating1IPP3KA

Notes:
1. Rated IPP measured with 8 × 20μs pulse.



WeightContact manufacturer
CaseEpoxy encapsulated
TerminalSilver plated leads, solderable per MIL-STD-750, Method 2026
