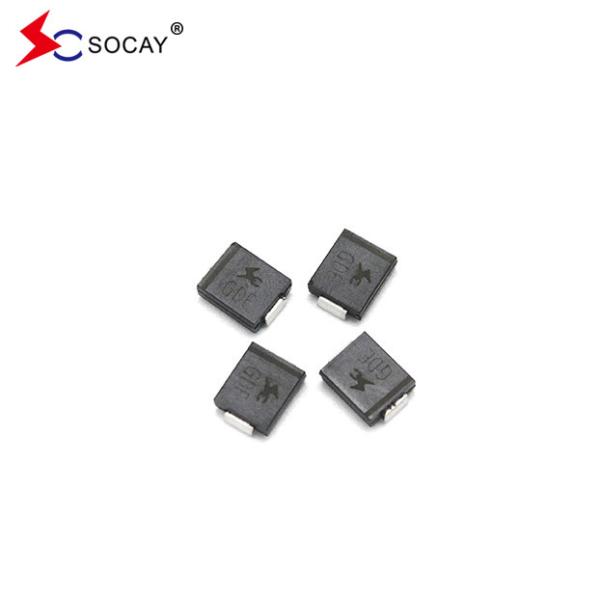

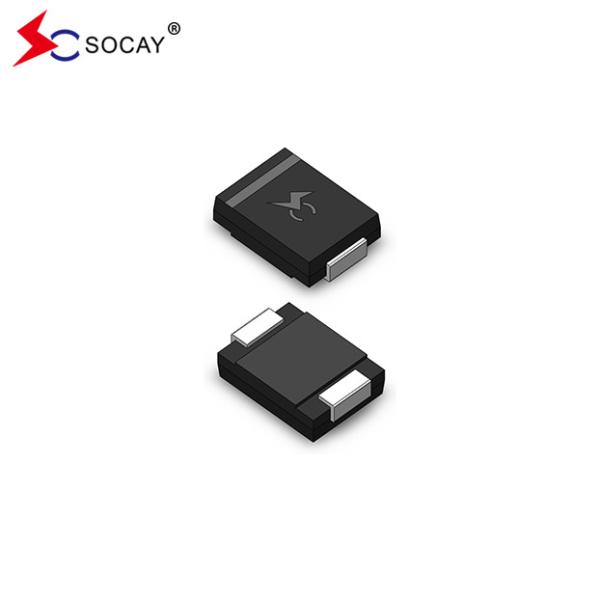

SMCJ TVS ESD Suppression Diodes DO-214AB-2 SMCJ90CA Surface Mount
SMCJ TVS ESD Suppression Diodes DO-214AB-2 SMCJ90CA Surface Mount
SMCJ TVS ESD Suppression Diodes DO-214AB-2 SMCJ90CA Surface Mount
SMCJ TVS ESD Suppression Diodes DO-214AB-2 SMCJ90CA Surface Mount
Specifications
Brand Name :
SOCAY
Model Number :
SMCJ90CA
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
3000PCS
Price :
Negotiable
Supply Ability :
1000000pcs
Delivery Time :
5-8 work days
SMCJ90CA Name :
TVS Diodes
SMCJ90CA Package Type :
DO-214AB/SMC
SMCJ90CA Vrwm :
90V
SMCJ90CA Vbr@It (Min.) :
100V
SMCJ90CA Vbr@It (Max.) :
111V
SMCJ90CA It :
1mA
SMCJ90CA Vc@Ipp :
162V
SMCJ90CA Ipp :
9.26A
SMCJ90CA Ir@Vrwm :
1000μA
Storage Temperature Range :
-55 to +150 ℃
package size :
Surface Mount
SMCJ90CA Brand :
SOCAY
Description

SMCJ TVS ESD Suppression Diodes DO-214AB-2 SMCJ90CA Surface Mount

DATASHEET: SMDJ_v2107.1 .pdf

TVS ESD Suppression Diodes Description:

The SMCJ serie SMCJ90CA is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

TVS ESD Suppression Diodes Features:

  • SMCJ90CA is for surface mounted applications in order to optimize board space
  • SMCJ90CA 's leakage is very low
  • SMCJ90CA is a Bidirectional unit
  • Glass passivated junction
  • It has Low inductance
  • It has Excellent clamping capability
  • 1500W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%
  • Fast response time: typically less than 1.0ps from 0 Volts to VBR min
  • Typical IR less than 5μA above 12V.
  • High Temperature soldering: 260°C/40 seconds at terminals
  • Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT
  • Plastic package has Underwriters Laboratory Flammability 94V-0
  • Matte tin lead–free Plated
  • Halogen free and RoHS compliant
  • Typical failure mode is short from over-specified voltage or current
  • Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
  • IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
  • ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
  • EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

TVS ESD Suppression Diodes Electrical Characteristics (TA=25℃ unless otherwise noted) :

Part Number Marking

Reverse

Stand-Off

Voltage VRWM (V)

Breakdown

Voltage VBR (V)

@IT

Test

Current

IT (mA)

Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi MIN MAX
SMCJ45A SMCJ45CA GFV BFV 45.0 50.00 55.30 1 72.7 20.63 5
SMCJ48A SMCJ48CA GFX BFX 48.0 53.30 58.90 1 77.4 19.38 5
SMCJ51A SMCJ51CA GFZ BFZ 51.0 56.70 62.70 1 82.4 18.20 5
SMCJ54A SMCJ54CA GGE BGE 54.0 60.00 66.30 1 87.1 17.22 5
SMCJ58A SMCJ58CA GGG BGG 58.0 64.40 71.20 1 93.6 16.03 5
SMCJ60A SMCJ60CA GGK BGK 60.0 66.70 73.70 1 96.8 15.50 5
SMCJ64A SMCJ64CA GGM BGM 64.0 71.10 78.60 1 103.0 14.56 5
SMCJ70A SMCJ70CA GGP BGP 70.0 77.80 86.00 1 113.0 13.27 5
SMCJ75A SMCJ75CA GGR BGR 75.0 83.30 92.10 1 121.0 12.40 5
SMCJ78A SMCJ78CA GGT BGT 78.0 86.70 95.80 1 126.0 11.90 5
SMCJ80A SMCJ80CA GGB BGB 80.0 88.80 97.60 1 129.6 11.57 5
SMCJ85A SMCJ85CA GGV BGV 85.0 94.40 104.00 1 137.0 10.95 5
SMCJ90A SMCJ90CA GGX BGX 90.0 100.00 111.00 1 146.0 10.27 5
