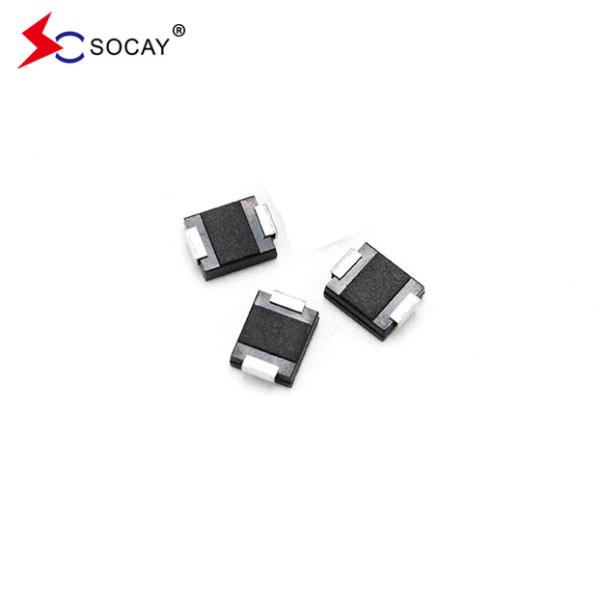

Hot Sell SMCJ100A TVS DIODE 100VWM 162VC DO214AB SMCJ100A
Hot Sell SMCJ100A TVS DIODE 100VWM 162VC DO214AB SMCJ100A
Specifications
Brand Name :
SOCAY
Model Number :
SMCJ100A
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
3000PCS
Price :
Negotiable
Supply Ability :
1000000pcs
Delivery Time :
5-8 work days
SMCJ100A Name :
TVS Diodes
Package Type :
DO-214AB/SMC
SMCJ100A Vrwm :
100V
Vbr@It (Min.) :
111V
Vbr@It (Max.) :
123V
SMCJ100A It :
1mA
SMCJ100A Vc@Ipp :
162V
SMCJ100A Ipp :
10.27A
Ir@Vrwm :
1000μA
Storage Temperature Range :
-55 to +150 ℃
Description

Hot Sell SMCJ100A TVS DIODE 100VWM 162VC DO214AB SMCJ100A

DATASHEET: SMDJ_v2107.1 .pdf

TVS DIODE Electrical Characteristics (TA=25℃ unless otherwise noted) :

TVS DIODE Part Number TVS DIODE Marking

TVS DIODE Reverse

Stand-Off

Voltage VRWM (V)

TVS DIODE Breakdown

Voltage VBR (V)

@IT

TVS DIODE Test

Current

IT (mA)

Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi MIN MAX
SMCJ45A SMCJ45CA GFV BFV 45.0 50.00 55.30 1 72.7 20.63 5
SMCJ48A SMCJ48CA GFX BFX 48.0 53.30 58.90 1 77.4 19.38 5
SMCJ51A SMCJ51CA GFZ BFZ 51.0 56.70 62.70 1 82.4 18.20 5
SMCJ54A SMCJ54CA GGE BGE 54.0 60.00 66.30 1 87.1 17.22 5
SMCJ58A SMCJ58CA GGG BGG 58.0 64.40 71.20 1 93.6 16.03 5
SMCJ60A SMCJ60CA GGK BGK 60.0 66.70 73.70 1 96.8 15.50 5
SMCJ64A SMCJ64CA GGM BGM 64.0 71.10 78.60 1 103.0 14.56 5
SMCJ70A SMCJ70CA GGP BGP 70.0 77.80 86.00 1 113.0 13.27 5
SMCJ75A SMCJ75CA GGR BGR 75.0 83.30 92.10 1 121.0 12.40 5
SMCJ78A SMCJ78CA GGT BGT 78.0 86.70 95.80 1 126.0 11.90 5
SMCJ80A SMCJ80CA GGB BGB 80.0 88.80 97.60 1 129.6 11.57 5
SMCJ85A SMCJ85CA GGV BGV 85.0 94.40 104.00 1 137.0 10.95 5
SMCJ90A SMCJ90CA GGX BGX 90.0 100.00 111.00 1 146.0 10.27 5
SMCJ100A SMCJ100CA GGZ BGZ 100.0 111.00 123.00 1 162.0 9.26 5
