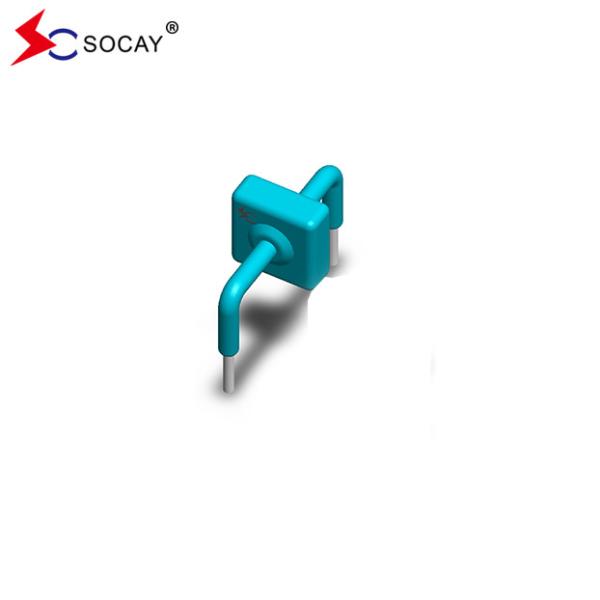

Axial Lead Bidirectional Transient Voltage Suppression Diode TVS 10KA Surge Suppressor
Axial Lead Bidirectional Transient Voltage Suppression Diode TVS 10KA Surge Suppressor
Axial Lead Bidirectional Transient Voltage Suppression Diode TVS 10KA Surge Suppressor
Axial Lead Bidirectional Transient Voltage Suppression Diode TVS 10KA Surge Suppressor
Specifications
Brand Name :
SOCAY
Model Number :
KC-066
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
1-3 weeks
Packaging Details :
bulk
Key words :
TVS Diodes
Package Type :
Axial lead terminals
Other name :
Semiconductor components
Vac :
45V
Vdc :
66V
Vbr@It (Min.) :
70V
It :
10mA
Ipp :
10KA
Vc@Ipp :
125V
Ir@Vdc :
20μA
Function :
Protection device
Description

Axial Lead Terminals Bi-Directional TVS Diode KC-066 10KA Blue Powder Surge Suppressor

DATASHEET: KC_v211.1.pdf

Description:

TVS tubes are widely used for the protection of semiconductors and sensitive devices, usually for diode protection. They are characterised by their fast response time (PS level), small size, high transient pulse suppression power and low clamping voltage.

Part Number

Reverse Stand-Off

Voltage

Breakdown Voltage

Test

Current

Current

Rating

Maximum

Clamping

Voltage

Reverse

Leakage

VAC(V)VDC(V)

VBR(V)

MIN.@IT

IT

(mA)

IPP 8/20μs (KA)

VC(V)

@IPP

IR (μA)

@VDC

KC-0128.512.81410102820
KC-01511151710103020
KC-02014202210104020
KC-02517252810105020
KC-03021303310106020
KC-04230424710107720
KC-058405864101011020
KC-066456670101012520
KC-076547683101013520
KC-10072100110101016520
KC-133100133147101022020
KC-170130170180101026020
KC-190145190200101029020
KC-200150200222101033020
KC-240180240250101034020
KC-380275380401101052020
KC-430310430440101062520





Features:

  • Axial lead terminals
  • High current transient suppressor
  • Excellent Clamping Capability
  • Glass Passivated Junction
  • Bi-directional



ParameterSymbolValueUnit
Operating junctionTJ-55 to +150°C
Storage Temperature RangeTSTG-55 to +150°C
Current Rating1IPP10KA

Notes:
1. Rated IPP measured with 8 × 20μs pulse.



WeightContact manufacturer
CaseEpoxy encapsulated
TerminalSilver plated leads, solderable per MIL-STD-750, Method 2026

Axial Lead Bidirectional Transient Voltage Suppression Diode TVS 10KA Surge Suppressor


Axial Lead Bidirectional Transient Voltage Suppression Diode TVS 10KA Surge Suppressor

Axial Lead Bidirectional Transient Voltage Suppression Diode TVS 10KA Surge Suppressor

Axial Lead Bidirectional Transient Voltage Suppression Diode TVS 10KA Surge Suppressor

FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ ?
A: MOQ depend on the type of product, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
