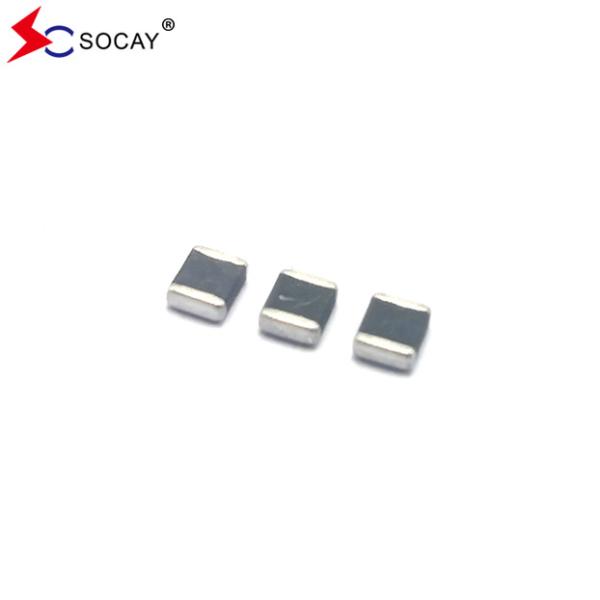

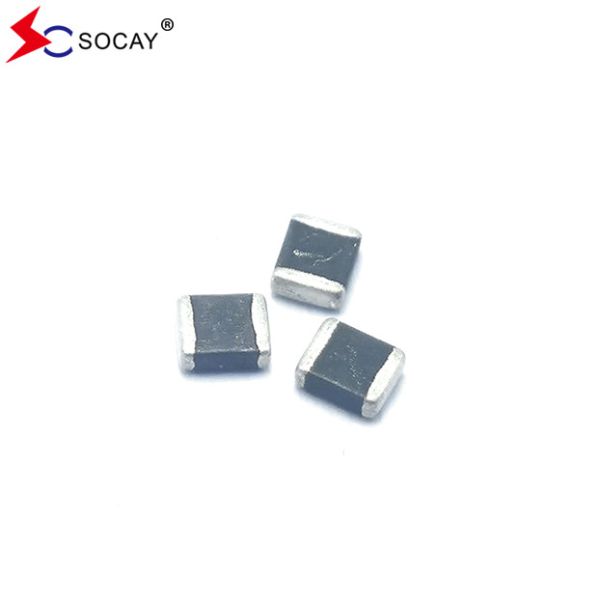

SMD 1210 Type Multilayer Chip Varistor SV1210N470G0A Zinc Oxide Varistor 47V DC
SMD 1210 Type Multilayer Chip Varistor SV1210N470G0A Zinc Oxide Varistor 47V DC
SMD 1210 Type Multilayer Chip Varistor SV1210N470G0A Zinc Oxide Varistor 47V DC
SMD 1210 Type Multilayer Chip Varistor SV1210N470G0A Zinc Oxide Varistor 47V DC
SMD 1210 Type Multilayer Chip Varistor SV1210N470G0A Zinc Oxide Varistor 47V DC
SMD 1210 Type Multilayer Chip Varistor SV1210N470G0A Zinc Oxide Varistor 47V DC
Specifications
Brand Name :
SOCAY
Model Number :
SV1210N470G0A
Certification :
REACH RoHS ISO
Place of Origin :
Shenzhen Guangdong China
MOQ :
3000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Component Name :
Multilayer Chip Varistor
Component Package :
SMD1210
Maximum DC operating voltage :
47V
Vv (Min.) :
56.4V
Vv (Max.) :
70.5V
Maximum peak current across the varistor :
155V
Maximum peak current :
250A
Wmax :
0.8J
Description

1210 Type SMD Zinc Oxide Varistor SV1210N470G0A SOCAY Original Factory Supply


SMD Zinc Oxide Varistor DATASHEET: SV1210N470G0A_v209.1.pdf


Description:
The SMD Zinc Oxide Varistor SV1210N470G0A is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV1210N470G0A is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.


SMD Zinc Oxide Varistor Electrical Characteristics (25±5℃):

Symbol Minimum Typical Maximum Units
VRMS — — 37 V
VDC — — 47 V
VV 56.4 — 70.5 V
VC — — 155 V
Imax — — 250 A
Wmax — — 0.8 J

VRMS - SMD Zinc Oxide Varistor Maximum AC operating voltage the varistor can maintain and not exceed 10μA leakage current.

VDC - Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current.

VV - Voltage across the device measure at 1mA DC current.

Equivalent to VB “breakdown voltage”.

VC - Maximum peak current across the varistor with 8/20μs waveform and 5A pulse current.

Imax - Maximum peak current which may be applied with 8/20μs waveform without device failure.

Wmax - Maximum energy which may be dissipated with the 10/1000μs waveform without device failure.



SMD Zinc Oxide Varistor Features:

  • Rectangle, sizes serialization for hybrid integrated circuit or printed circuit surface mount components
  • There are many side electrode lead-out material, particularly suitable for surface mount technology for solderability and resistance to soldering heat of the stringent requirements
  • Fast response (<1ns)
  • Low leakage current, low clamping voltage
  • Suitable for reflow, wave soldering and hot air hand soldering



SMD Zinc Oxide Varistor Applications:

  • Application for Mother Board, Notebook, Cellular Phone, PDA, handheld device, DSC, DV, Scanner, and Set- Top Box…etc.
  • Suitable for Push-Button, Power Line and Low Frequency single line over-voltage protect.




SMD Zinc Oxide Varistor Construction & Dimensions:
SMD 1210 Type Multilayer Chip Varistor SV1210N470G0A Zinc Oxide Varistor 47V DC

Size EIA (EIAJ) Length (L) Width (W) Thickness (T)
Inches Millimeters Inches Millimeters Inches Millimeters
1210 (3225) 0.126±0.012 3.20±0.30 0.098±0.012 2.50±0.30 0.098 Max 2.50 Max



General Technical Data:

Operating Temperature -55~125℃
Storage Temperature -55~150℃
Response Time <1 ns
Solderability 245±5℃, 3±1sec
Solder Leach Resistance 260±5℃, 10±1sec

Soldering Recommendations:

SMD 1210 Type Multilayer Chip Varistor SV1210N470G0A Zinc Oxide Varistor 47V DC

  • Preheat
    • The temperature rising speed is suggested to be 2~4 ℃ /s
    • Appropriate preheat time will be from 60 to 120 seconds.
  • Heating
    • Careful about sudden rise in temperture as it may worser the solder ability.
    • Set the peal temperature in the range from 215 ℃ to 225 ℃.
  • Cooling
    • Careful about slow cooling as it may cause the position shift of component.



Quantity of Products in The Taping Package:

SIZE EIA (EIAJ)

1210

(3225)
Standard Packing Quantity (PCS / reel) 3,000
