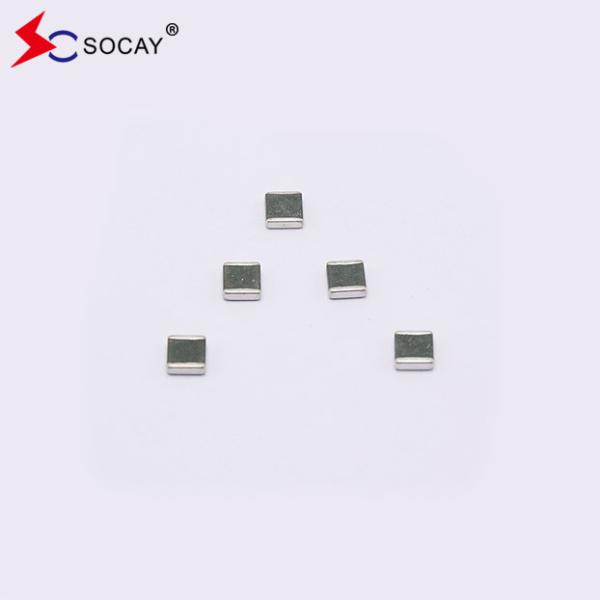

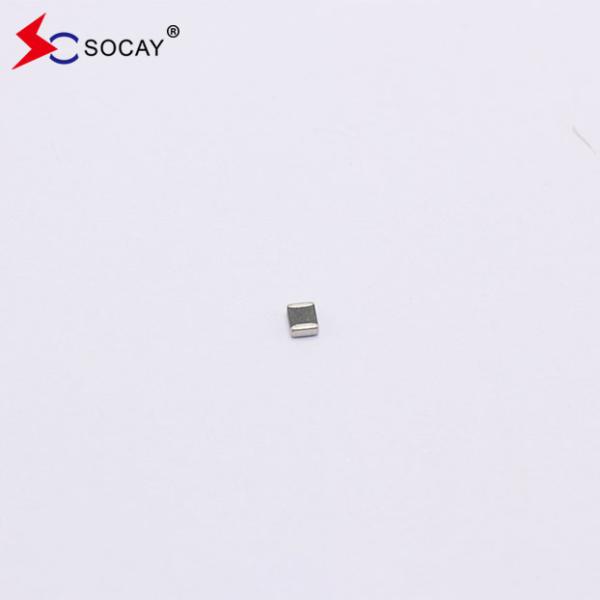

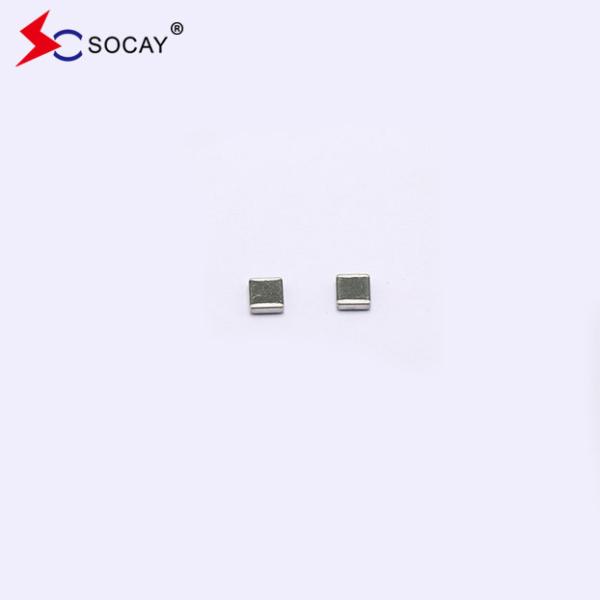

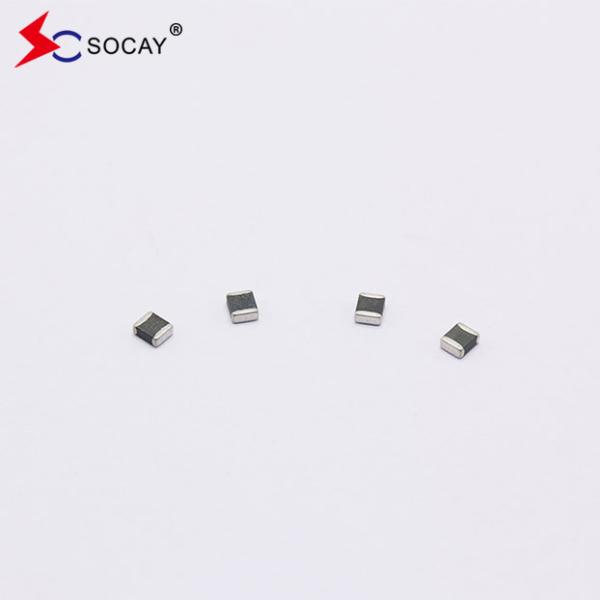

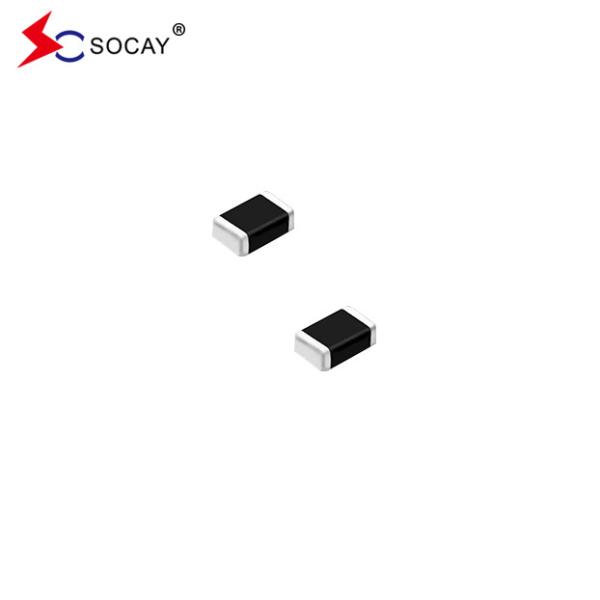

SOCAY Multilayer Chip Varistor SMD0402 Package SV0402E5R5G1B Max VDC 5.5V

Multilayer Chip Varistor DATASHEET: SV0402E5R5G1B_v89.1.pdf

Description:

The Multilayer Chip Varistor SV0402E5R5G1B is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV0402E5R5G1B is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.

Electrical Characteristics (25±5℃):

VDC – Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current.

VV – Voltage across the device measure at 1mA DC current.

Equivalent to VB “breakdown voltage”

VC – Maximum peak current across the varistor with 8/20μs waveform and 1A pulse current.

CP – Device capacitance measured with zero volt bias 1Vrms at 1MHz. The pF is ±30%.

Multilayer Chip Varistor Construction & Dimensions:

General Technical Data:

Environmental Performance:

Quantity of Products in the Taping Package:
