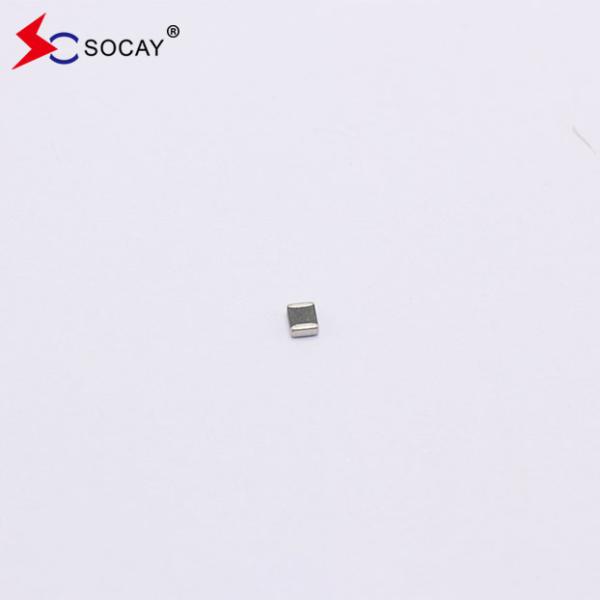

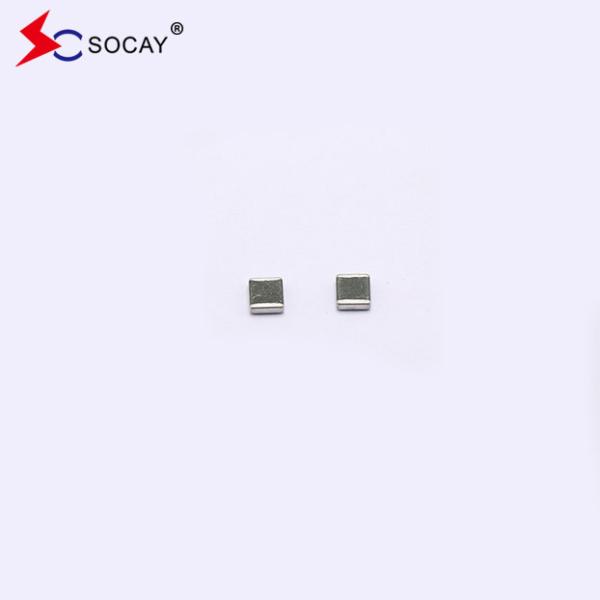

18VDC Surface Mount Multilayer Chip Varistors SV0402E180G2B SMD Lead Free Type
18VDC Surface Mount Multilayer Chip Varistors SV0402E180G2B SMD Lead Free Type
18VDC Surface Mount Multilayer Chip Varistors SV0402E180G2B SMD Lead Free Type
18VDC Surface Mount Multilayer Chip Varistors SV0402E180G2B SMD Lead Free Type
Specifications
Brand Name :
SOCAY
Model Number :
SV0402E180G2B
Certification :
REACH RoHS ISO
Place of Origin :
Shenzhen Guangdong China
MOQ :
10000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Name :
Multilayer Chip Varistor
Package :
SMD0402
Vdc (Max.) :
18V
Vv (Min.) :
46V
Vv (Max.) :
60V
Vc (Max.) :
110V
Imax :
1A
Cp (Typ.) :
1pF
Description

18VDC Surface Mount Multilayer Varistor SV0402E180G2B SMD Quick Response Time (<1ns)

Multilayer Varistor DATASHEET: SV0402E180G2B_v89.1.pdf

Description:

The Multilayer Varistor SV0402E180G2B is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV0402E9R0G0B is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.

Equivalent Circuits:

18VDC Surface Mount Multilayer Chip Varistors SV0402E180G2B SMD Lead Free Type

Electrical Characteristics (25±5℃):

Symbol Minimum Typical Maximum Units
VDC — — 9 V
VV 11 — 17 V
VC — — 35 V
CP — 5 — pF

VDC – Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current.

VV – Voltage across the device measure at 1mA DC current.

Equivalent to VB “breakdown voltage”

VC – Maximum peak current across the varistor with 8/20μs waveform and 1A pulse current.

CP – Device capacitance measured with zero volt bias 1Vrms at 1MHz. The pF is ±30%.

Multilayer Varistor Features:

u Lead Free type

u SMD type zinc oxide based ceramic chip

u Insulator over coat keeps excellent low and stable leakage current

u Plating termination provided good solderability characteristic

u Quick response time (<1ns)

u Low clamping voltage

u Meet IEC61000-4-2 standard

u Low capacitance can meet high speed single transient voltage protection

Multilayer Varistor Applications:

u Low capacitance product applications for high-speed signal lines such as HDMI, DVI, USB, IEEE 1394 Port etc.

u Normal capacitance product applications for I/O Port (RS232, USB, PS2, VGA, Audio) on Mother Board and Notebook, Set–Top Box, MP3 Players, DVD Players, and Docking System etc.

Multilayer Varistor Construction & Dimensions:

18VDC Surface Mount Multilayer Chip Varistors SV0402E180G2B SMD Lead Free Type

Size EIA (EIAJ)

0402

(1005)
Symbol Inches Millimeters
L 0.038±0.005 0.96±0.12
W 0.019±0.003 0.48±0.0.07
T 0.020±0.004 0.50±0.10
C 0.010±0.006 0.25±0.15


General Technical Data:

Operating Temperature -40 ~ +85ºC
Storage Temperature -40 ~ +85ºC
Response Time <1 ns
Solderability 245±5ºC, 3±1sec
Solder leach resistance 260±5ºC, 10±1sec
Taping Package Storage Condition Storage Temperature 5 ~ 40ºC
Relative Humidity To 65%
Storage Time 12 Months max

Multilayer Varistor Environmental Performance:

Item Specifications Test Condition
Bias Humidity △VV / VV ≤ ±10 % 90%RH, 40ºC, Working Voltage, 1000 hrs
Thermal Shock △VV / VV ≤ ±10 % -40ºC to 85ºC, 30 min. cycle, 5 cycles
Full Load Voltage △VV / VV ≤ ±10 % Working Voltage, 85ºC,1000 hrs

Multilayer Varistor Carrier Tape Dimension:

18VDC Surface Mount Multilayer Chip Varistors SV0402E180G2B SMD Lead Free Type

Size EIA

(EIAJ)

0402

(1005)
Symbol Inches Millimeters
A 0.315±0.012 8.00±0.30
B 0.138±0.002 3.50±0.05
C 0.069±0.002 1.75±0.05
D0 0.061±0.002 1.55±0.05
P0 0.157±0.004 4.00±0.10
P1 0.079±0.002 2.00±0.05
P2 0.079±0.002 2.00±0.05
W 0.023±0.001 0.59±0.03
L 0.044±0.001 1.12±0.03
T 0.024±0.001 0.60±0.03

Quantity of Products in the Taping Package:

SIZE EIA

(EIAJ)

0402

(1005)
Standard Packing Quantity (PCS / reel) 10,000

18VDC Surface Mount Multilayer Chip Varistors SV0402E180G2B SMD Lead Free Type
